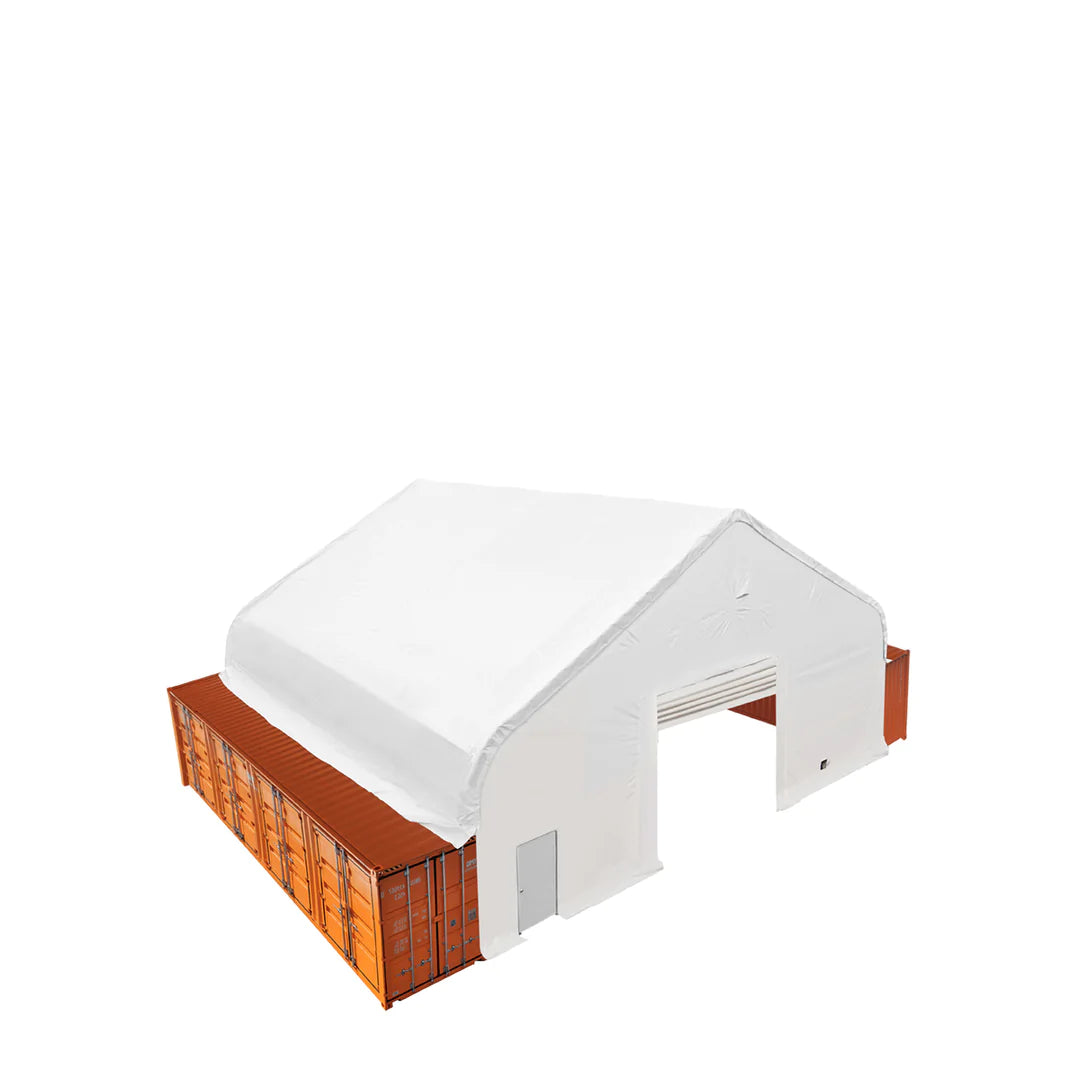

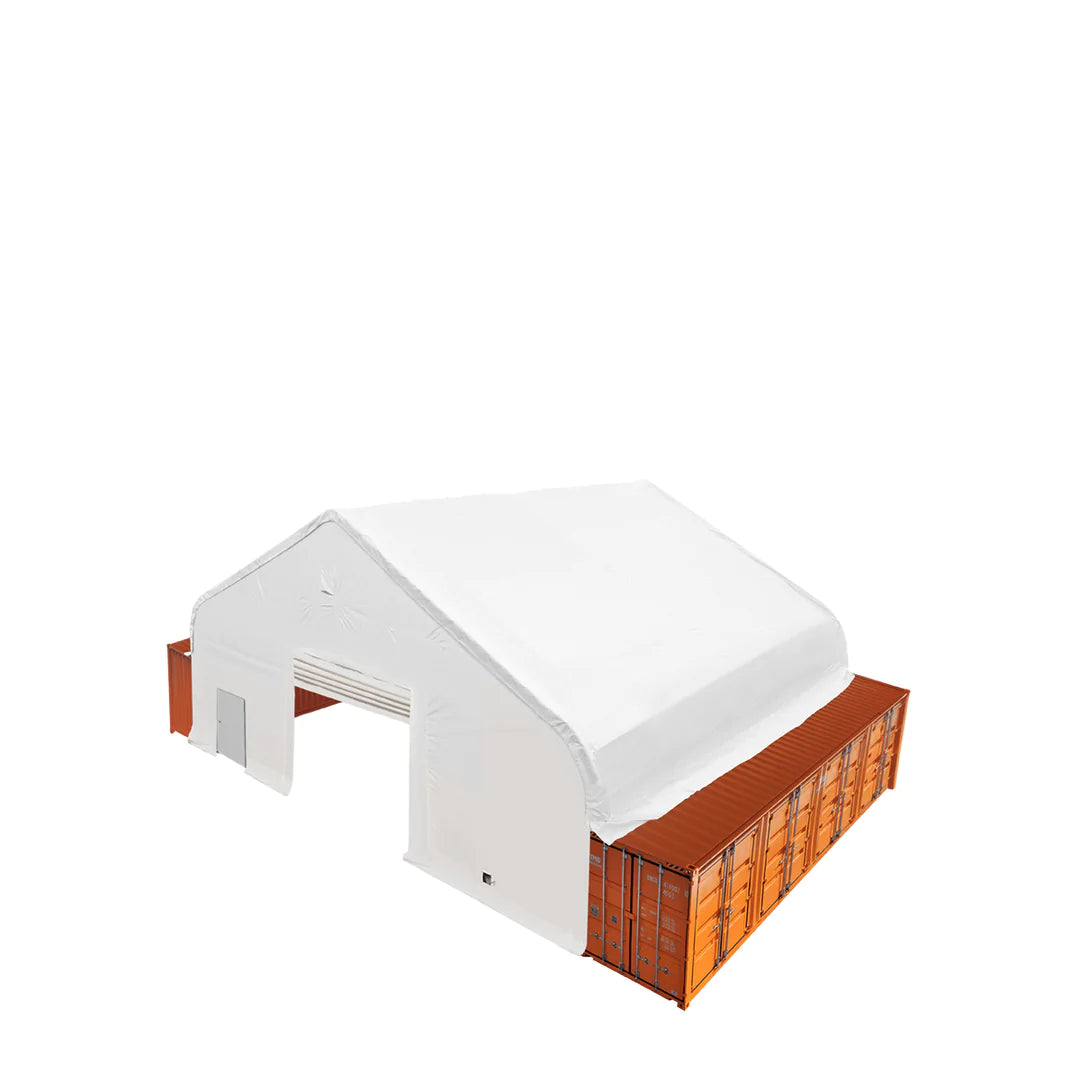

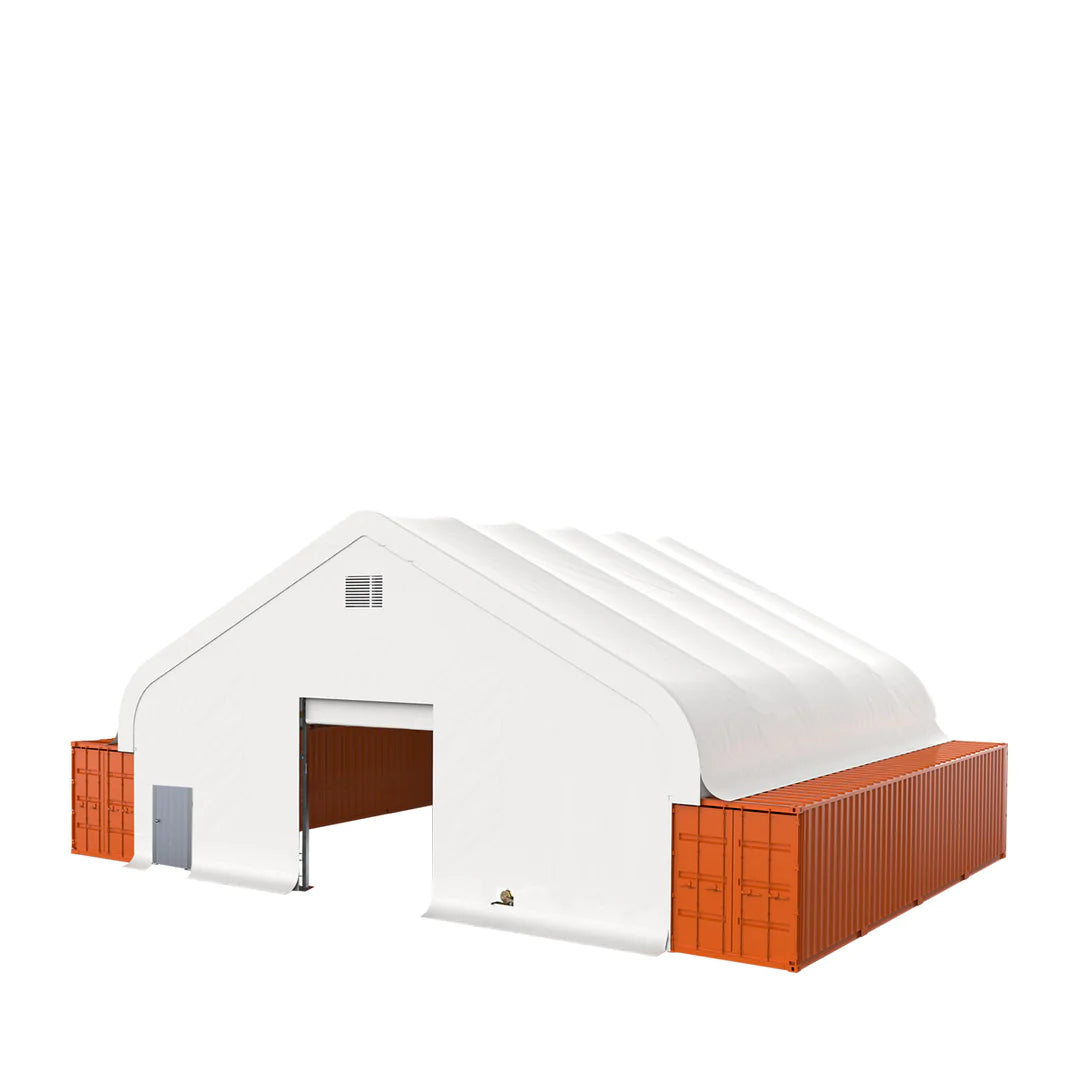

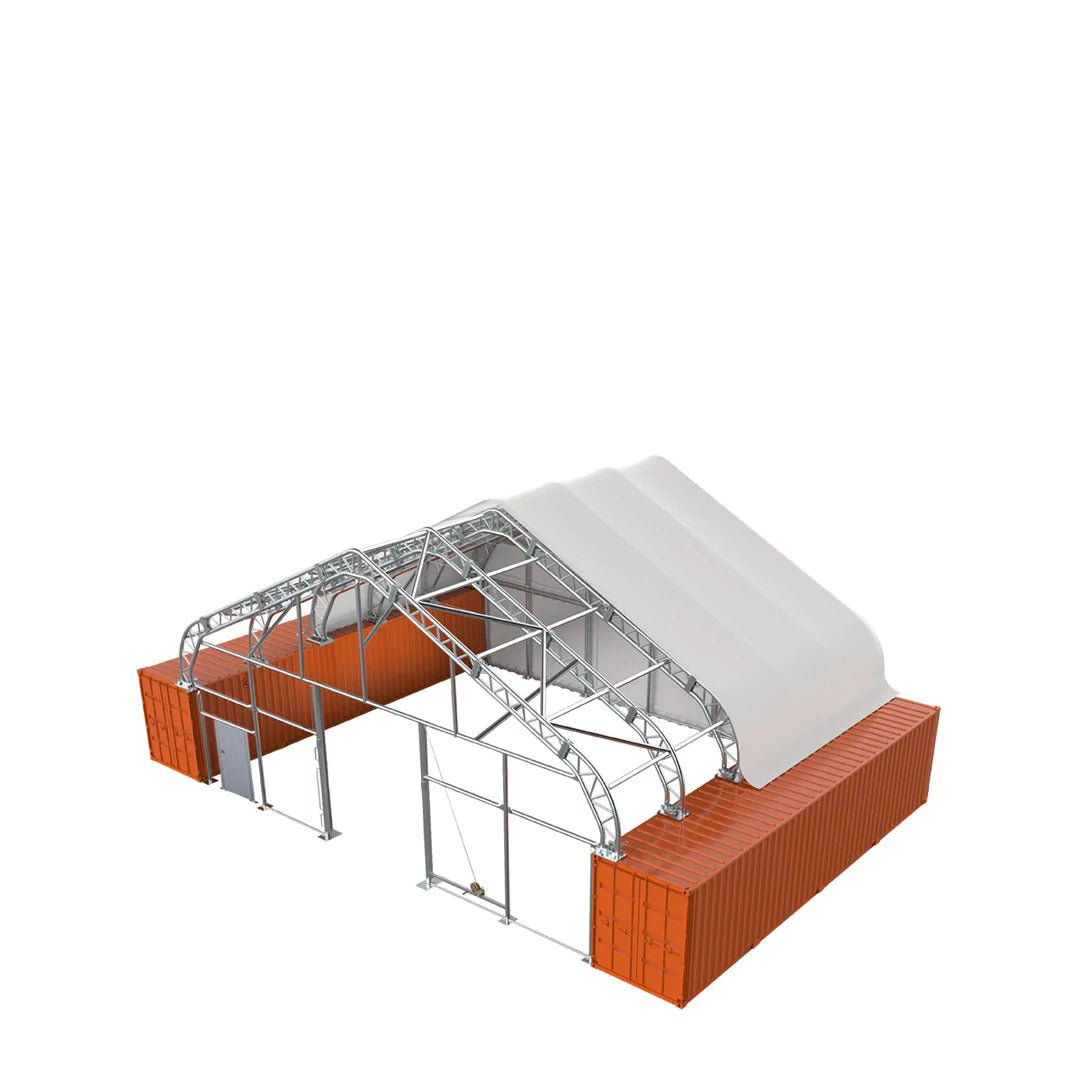

• Mounted on containers or concrete pony walls for maximum height, versatility and useability so that it can accommodate most job sites

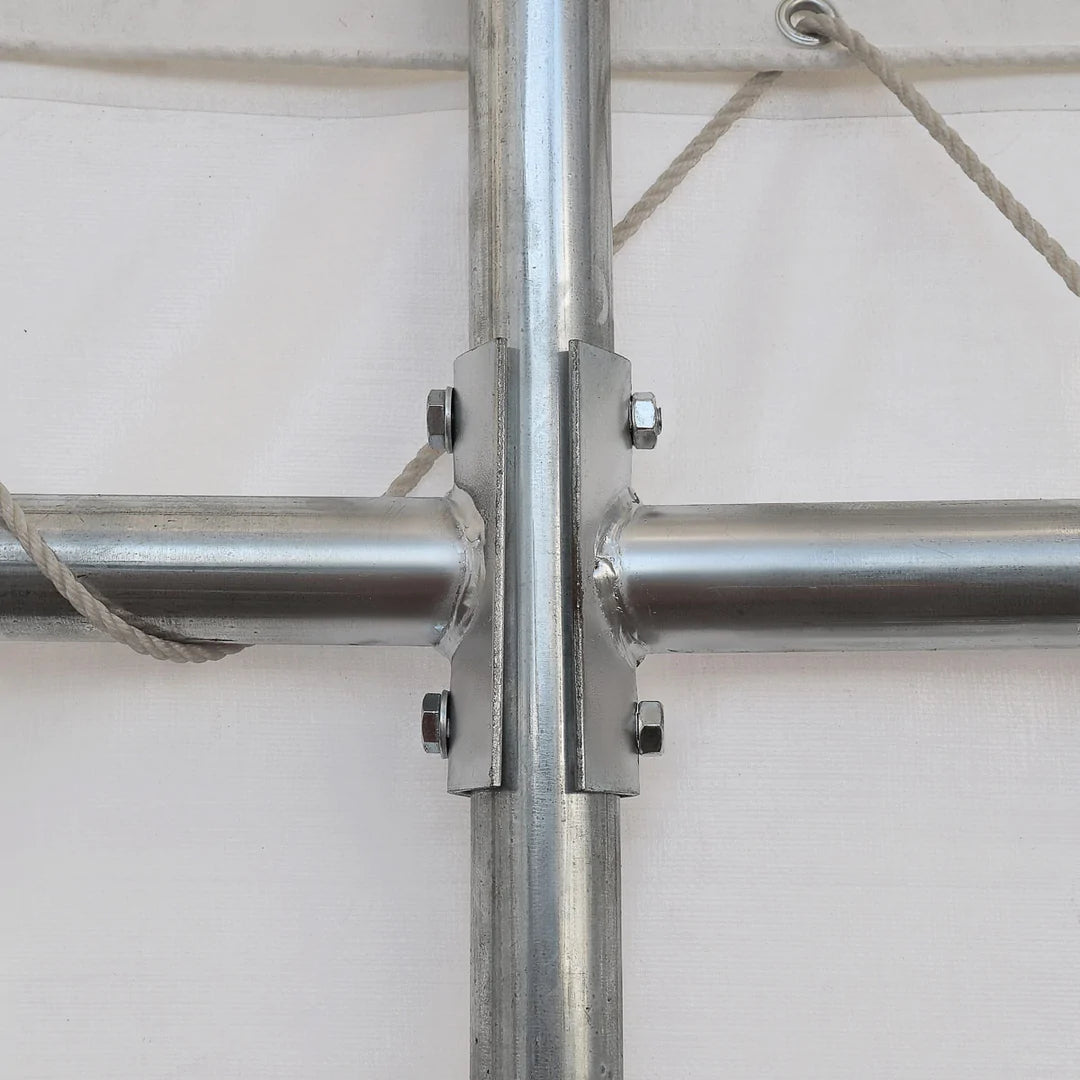

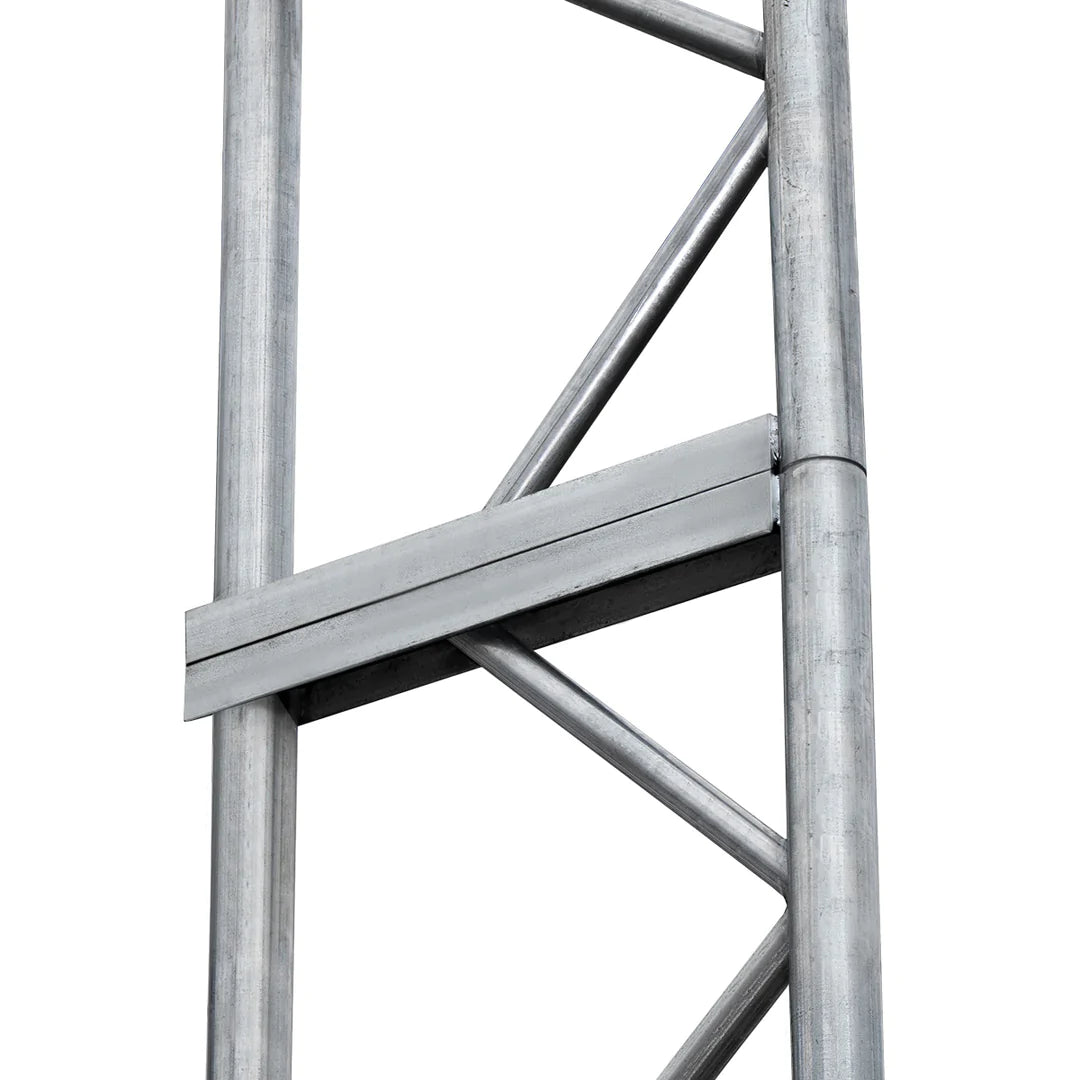

• Double truss frame and solid bolted connection on all trusses which help to reinforce the structure by increasing the support strength and rigidity
• Both front and back walls provide an extra layer of protection for your machinery, tools, materials and other weather sensitive cargo
• Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
• Use for large equipment, materials and vehicle storage; adaptable to any kind of covered outdoor needs

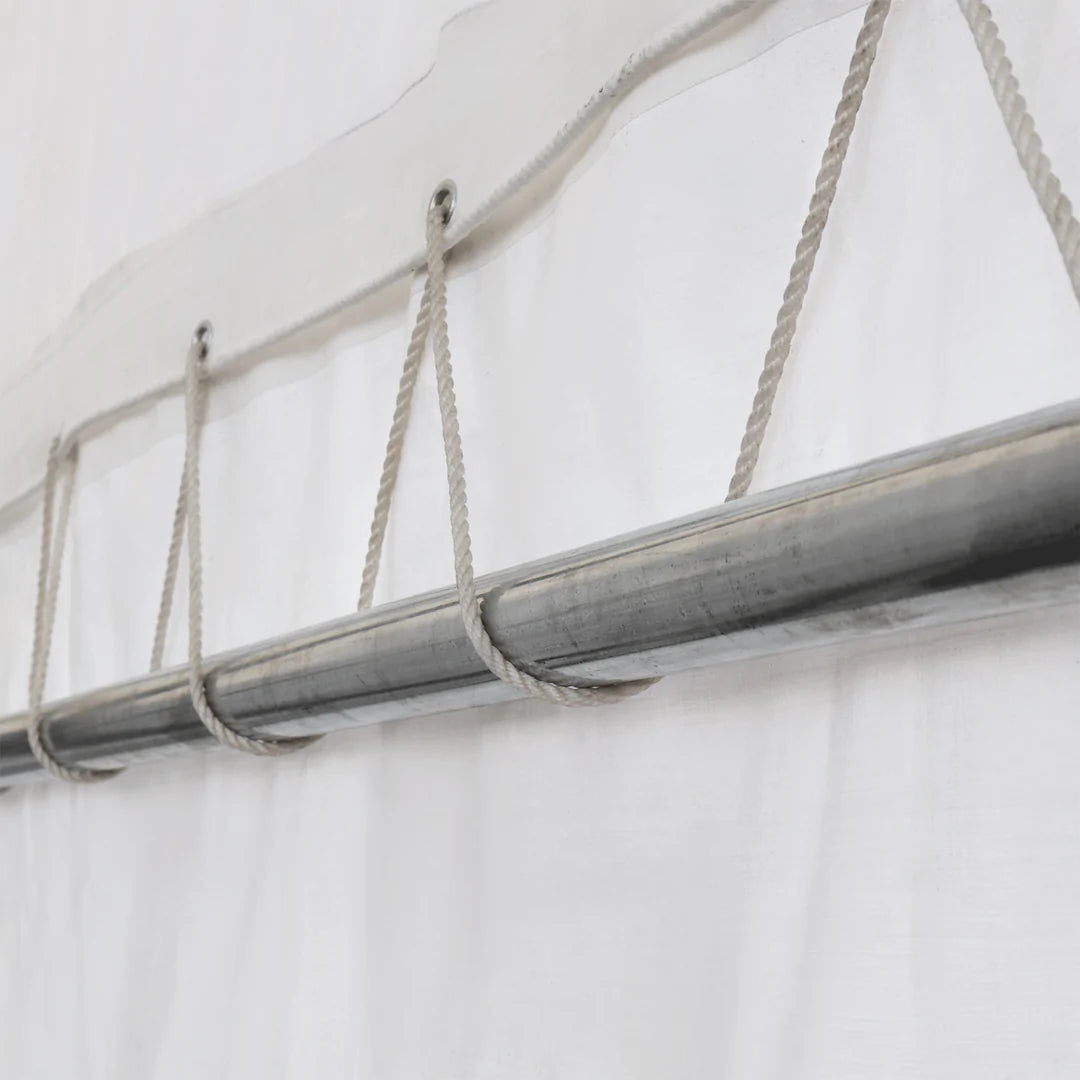

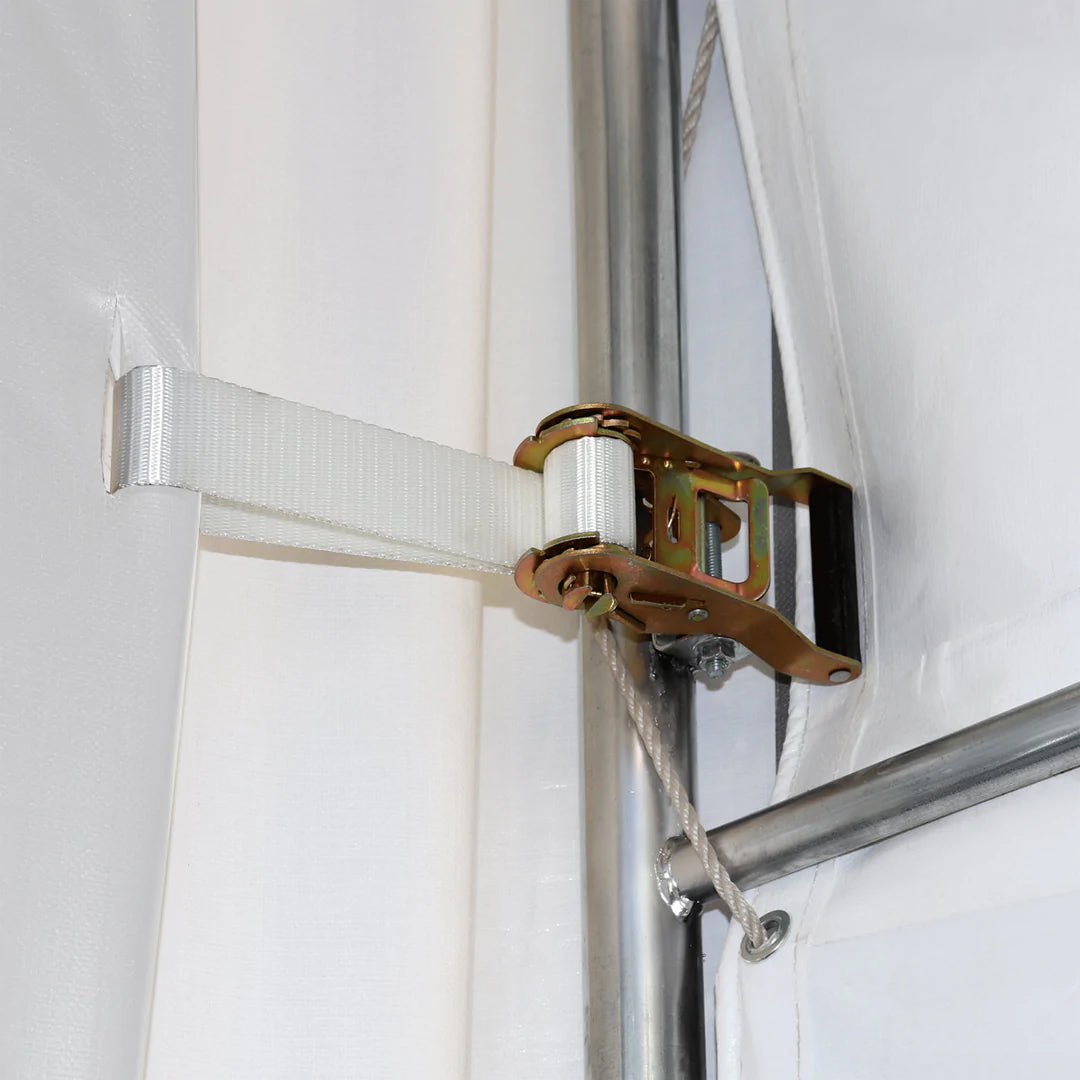

• Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
  • Stands strong against tearing, leaking, and chemical corrosion
  • Natural flame retardant, resistant to chemicals and oil
  • UV protected and waterproof
  • Fabric color: White

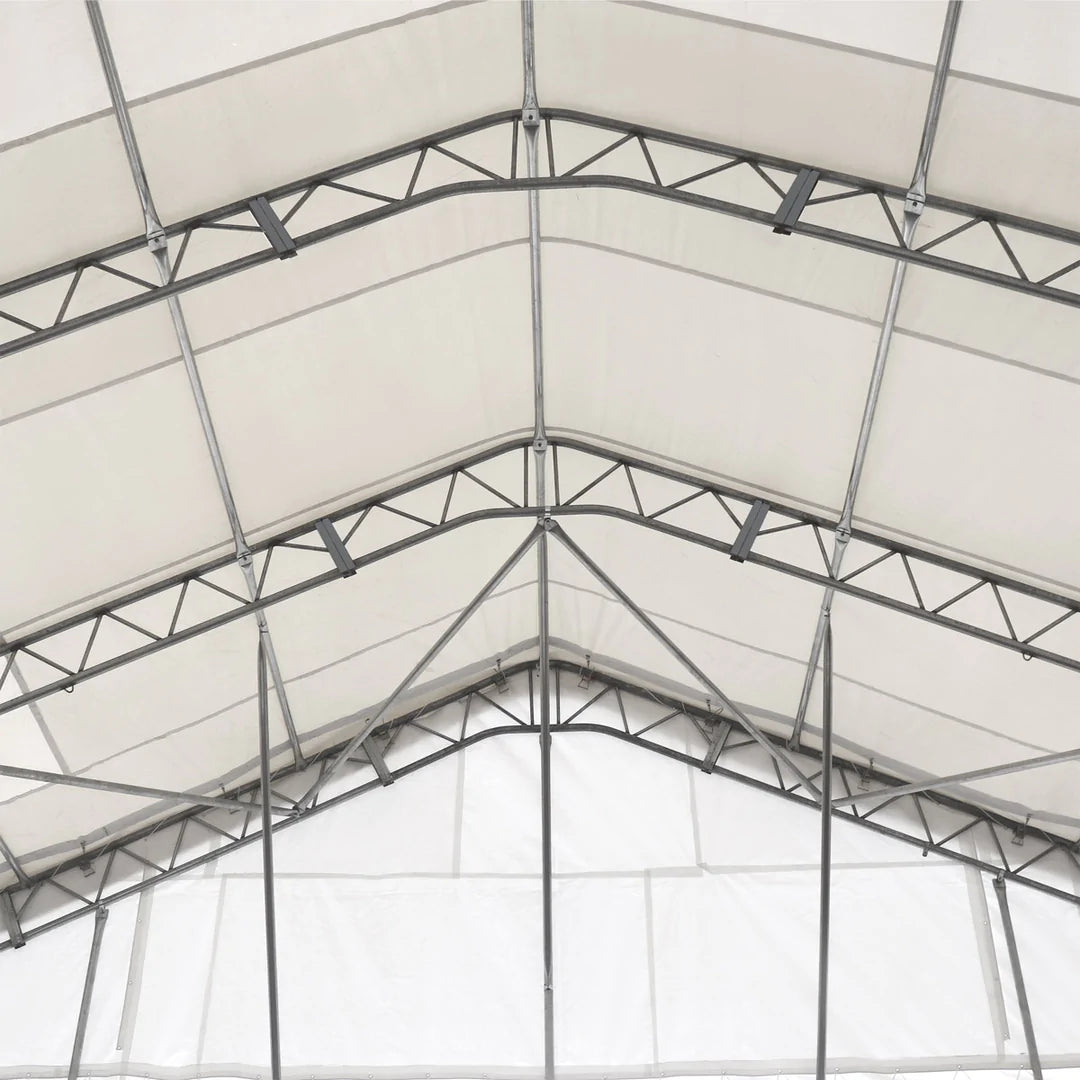

• DT Pro series is reinforced with a specially designed reduced truss spacing of 8’ for maximum strength and stability
• Easy to assemble and dismantle for efficient set up/tear down if moving from one job to another; low cost storage solution all around

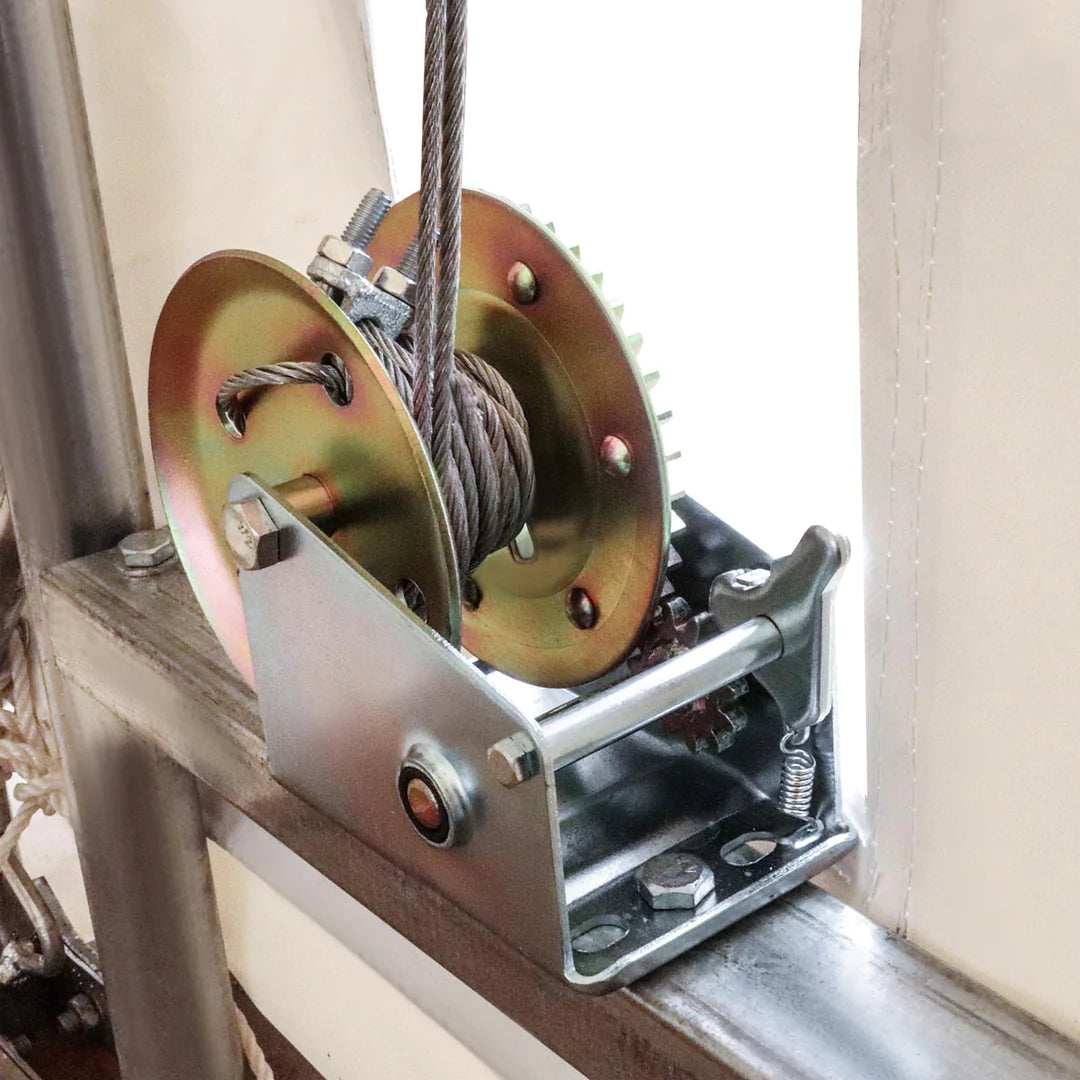

• Wide open winch roll up door on front wall allows for easy parking, oversized machinery and dynamic workflow to run throughout
• Steel man door offers convenient side entry, similar to the entrance of a house, that you can use instead of constantly opening the main door

• Exact floor footprint: 50’4” (W) x 40’ (L)
• Truss spacing: 8’
• Peak ceiling height from the container top: 17’
• Peak ceiling height from the ground: 26' (with standard container height)
• Truss tubes: 2-½” – 15 GA (approx.)
• Purlin tubes: 2-½” – 15 GA (approx.)
• Front wall kit
  • Designed for 40’ standard container with 8’6’’ height

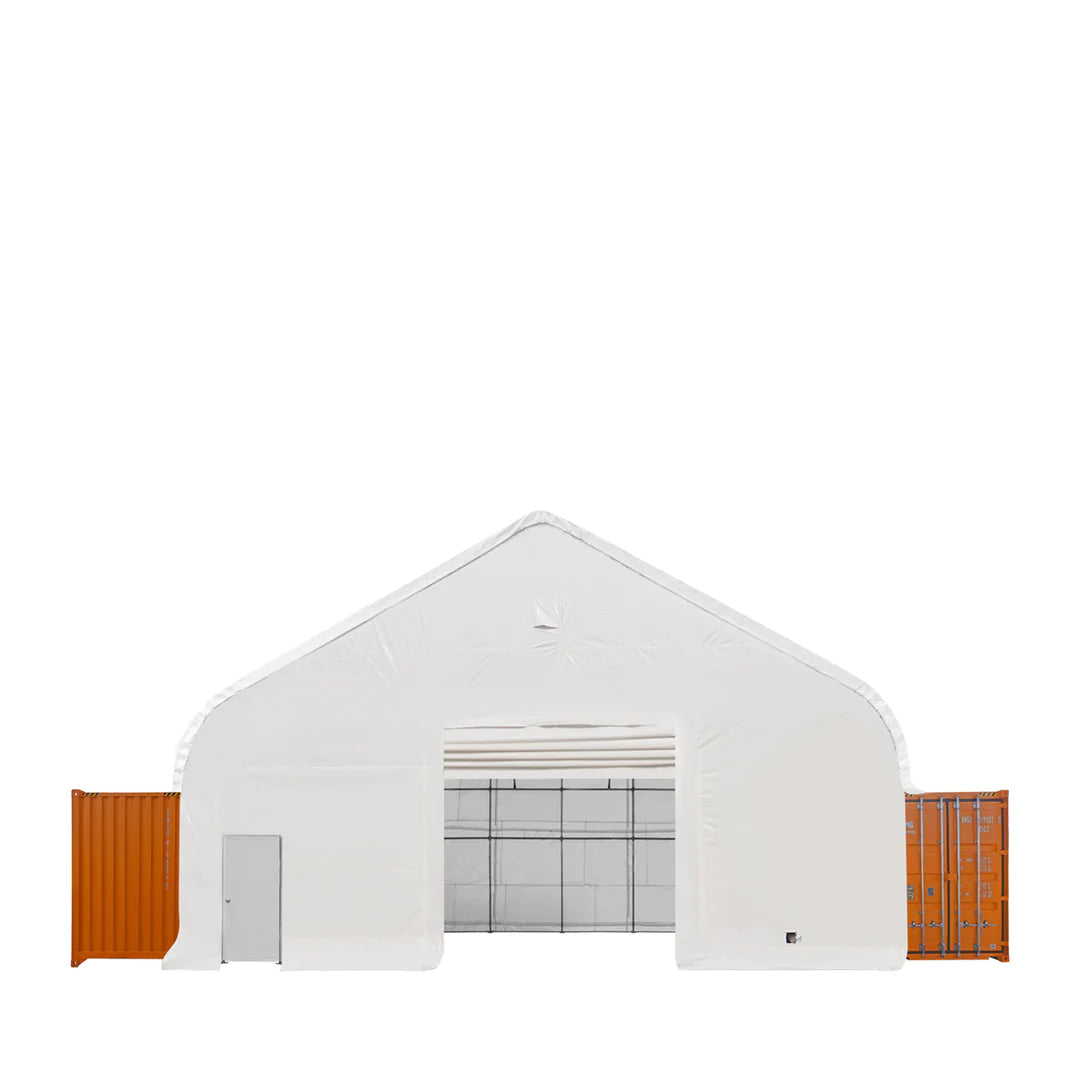

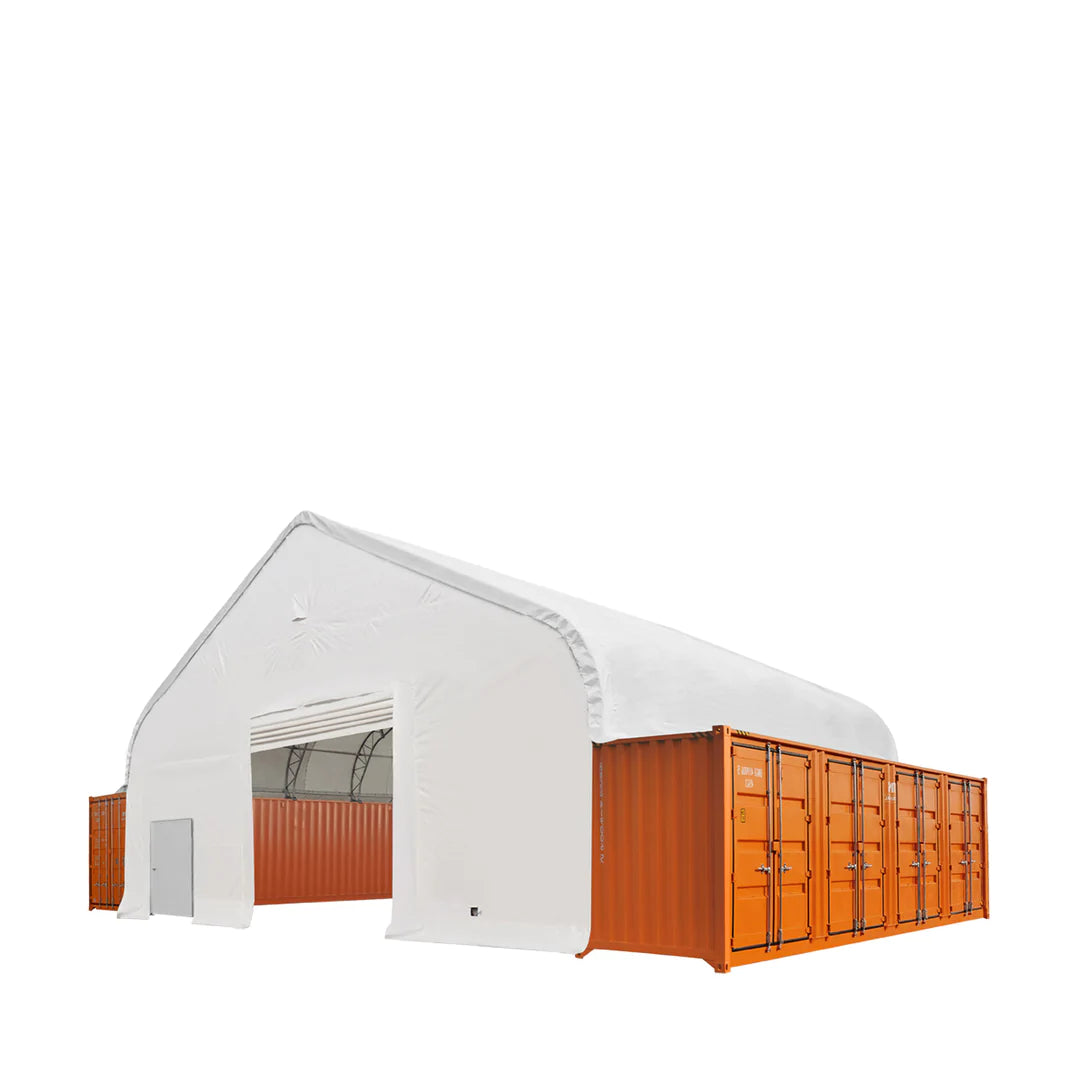

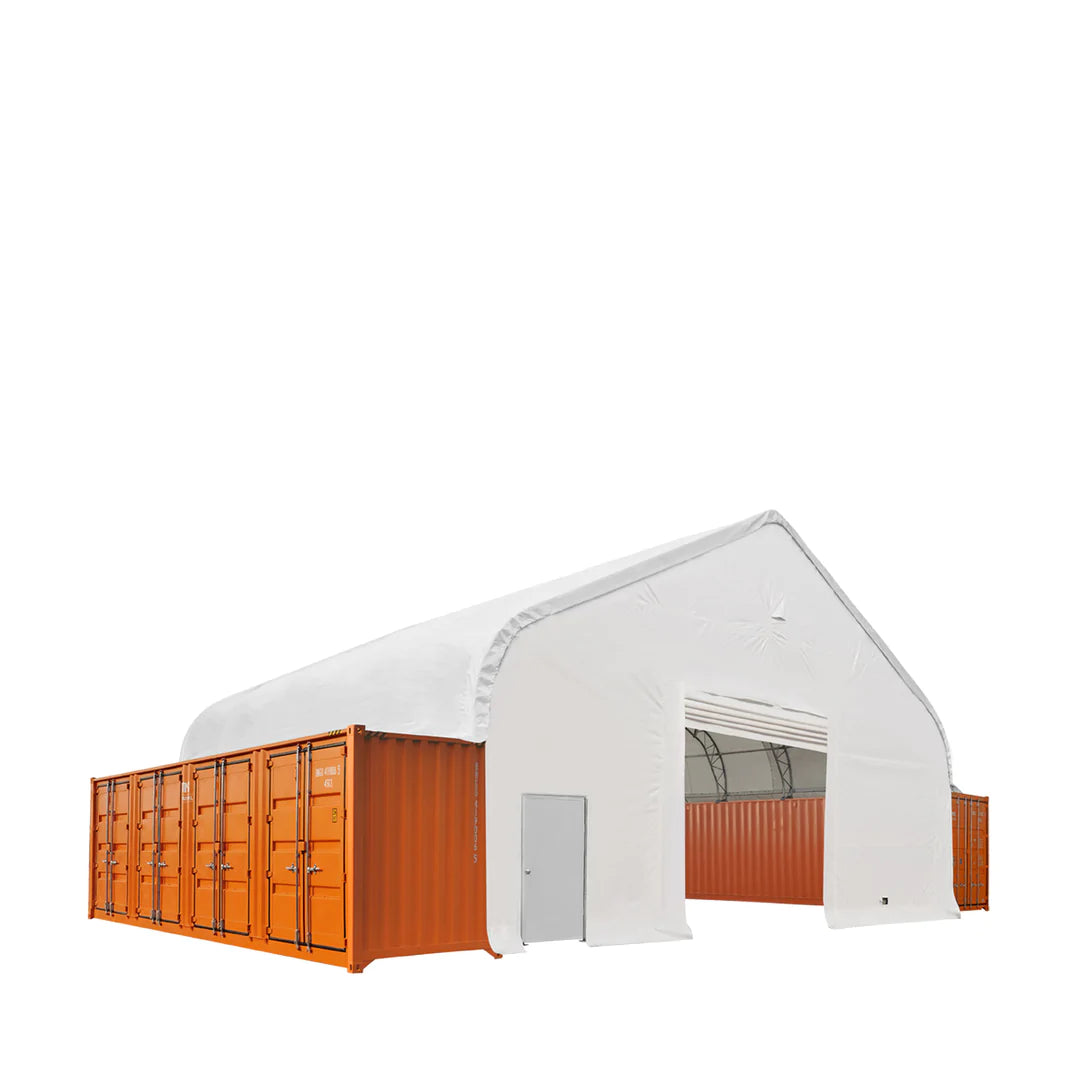

  • Complete frame built and covered front wall with a steel man door and a wide open winch roll up door
• Man door: 3’ x 6’6” (W x H)
• Winch roll-up door with drive through clearance: 15’ x 13’ (W x H)

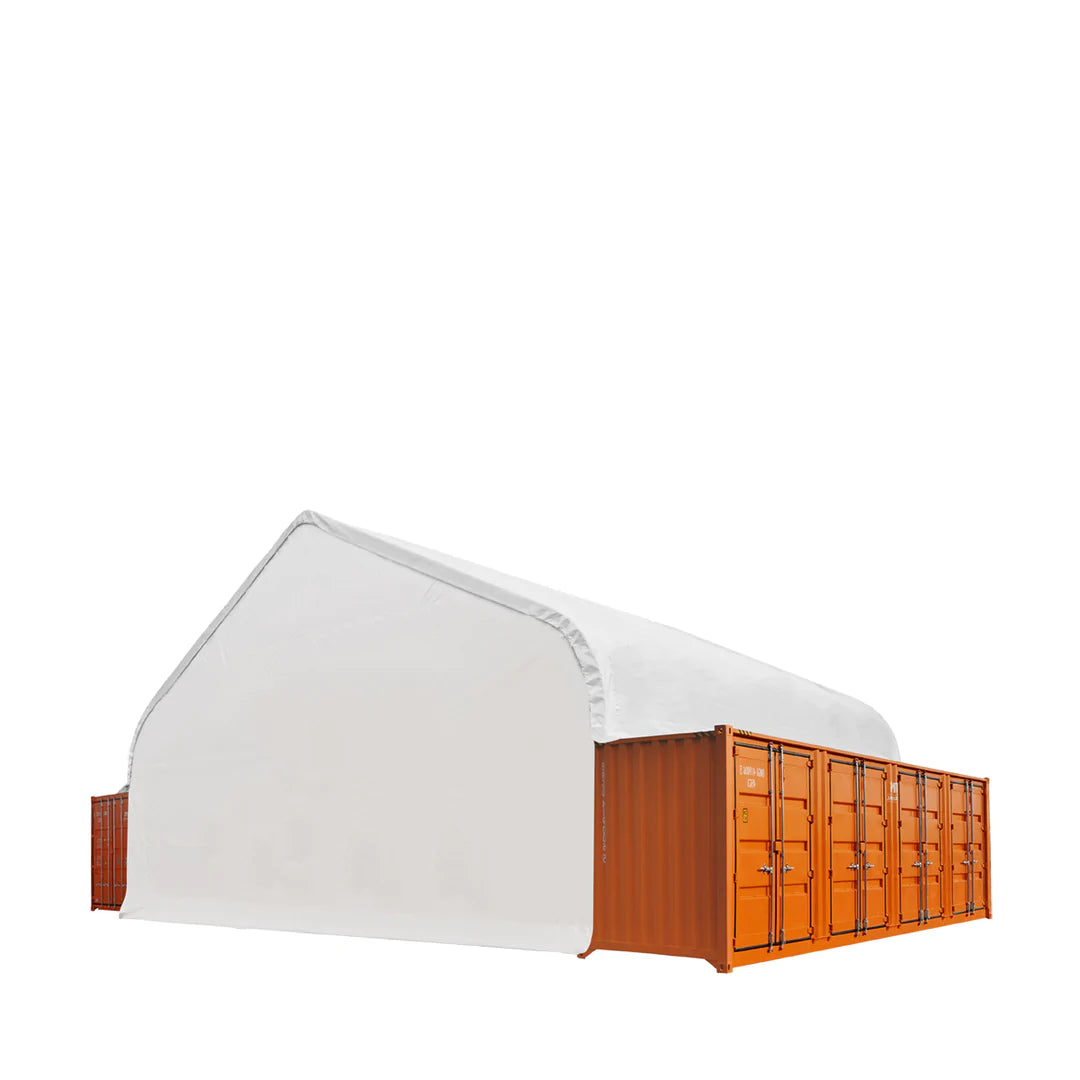

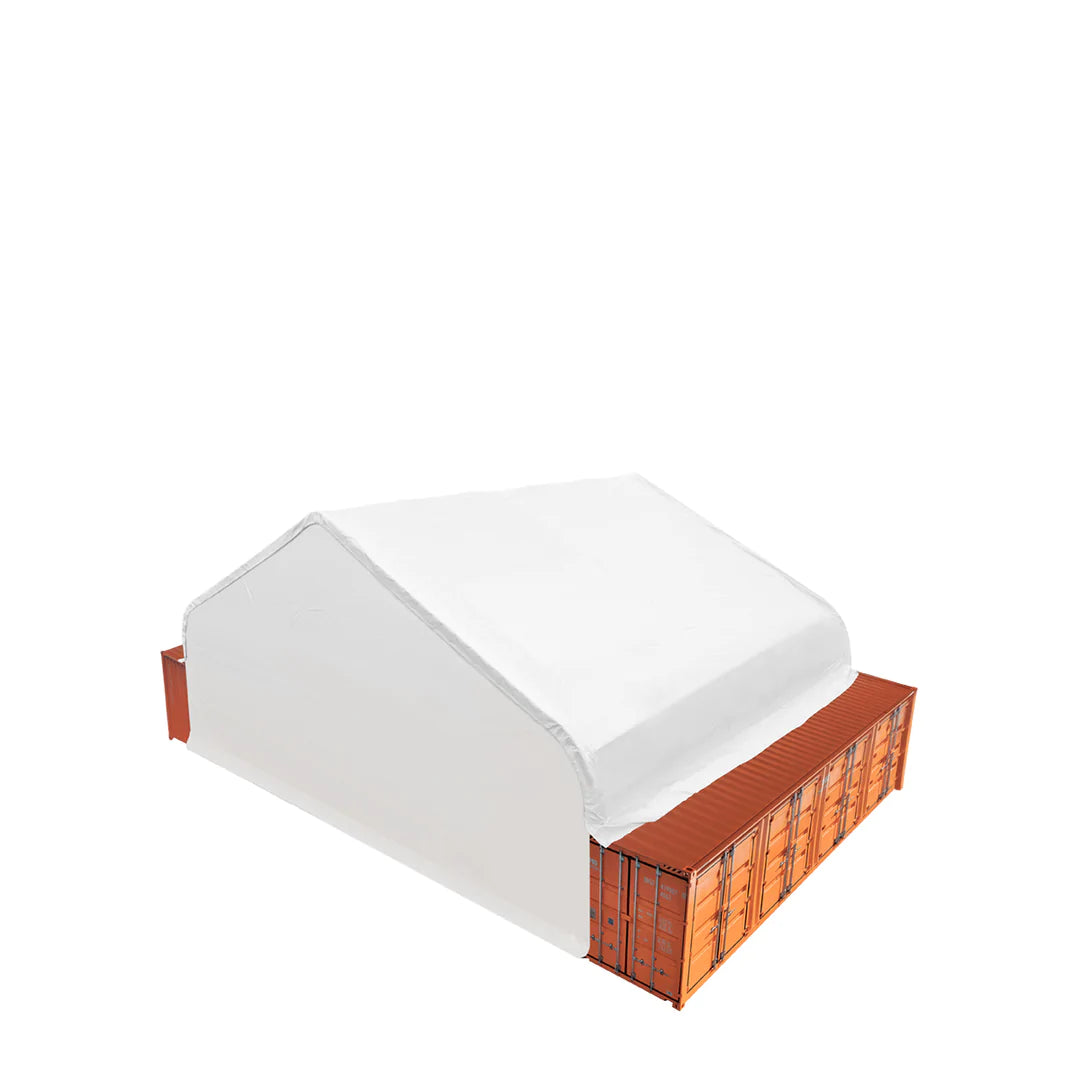

• Back wall is designed with tubing frame structure and fully covered
• Cover material: 32 oz PVC fabric (white color)

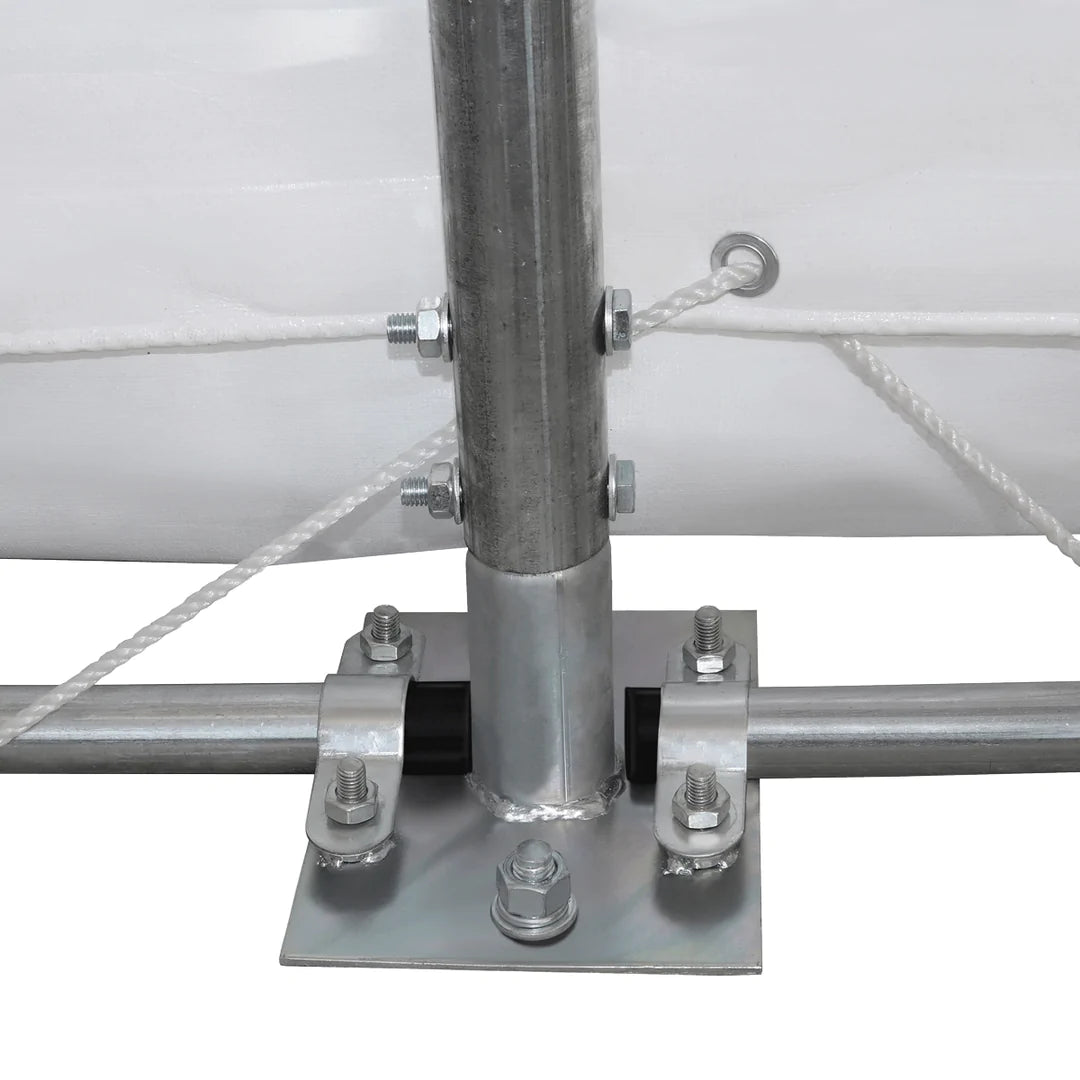

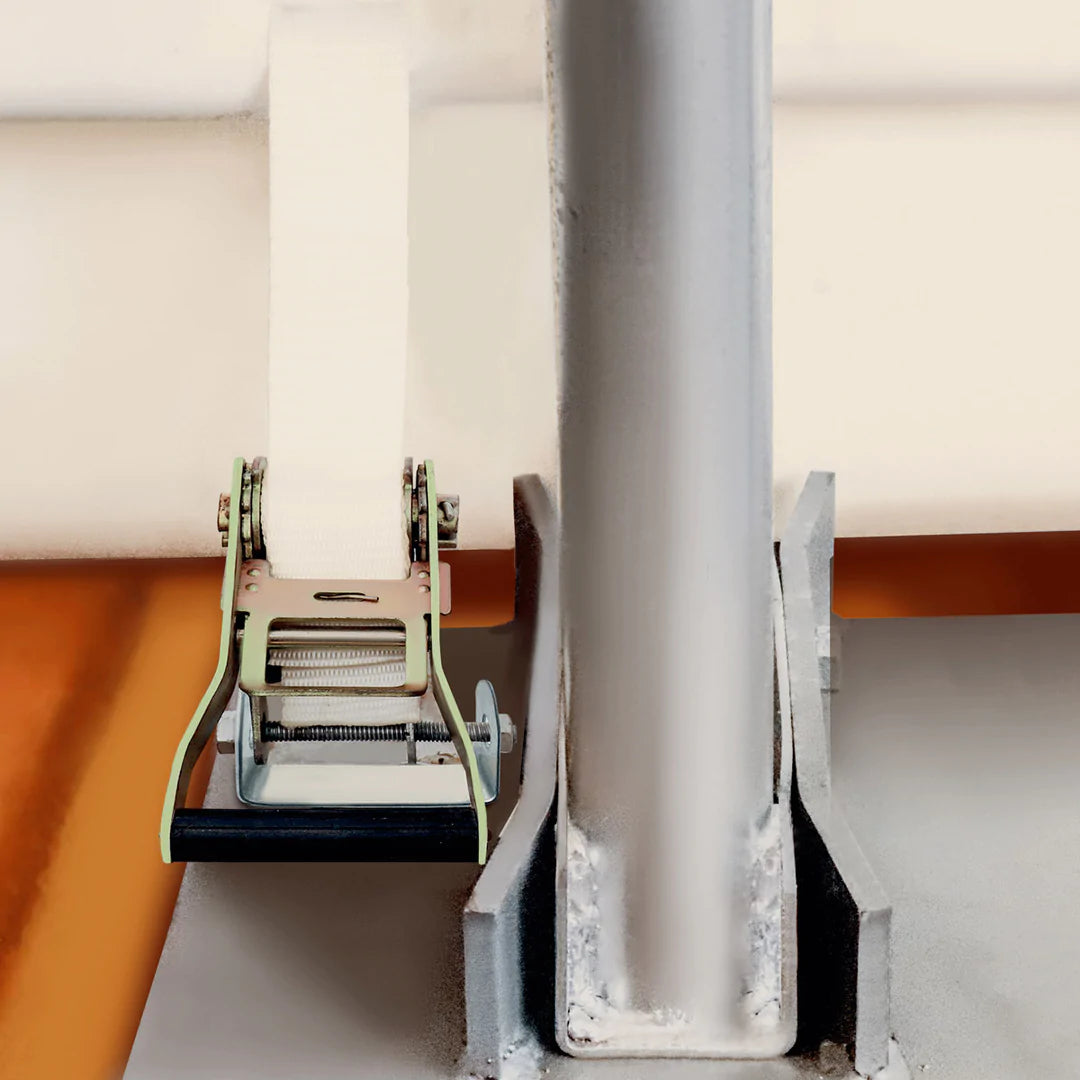

• Welding required for all footplates
• Containers not included

• This product is packed in three metal crate shipping boxes
• Two boxes of 115” x 45” x 49” (L x W x H)
• One box of 115” x 45” x 16” (L x W x H)
• Total shipping weight: 4740 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
