Features

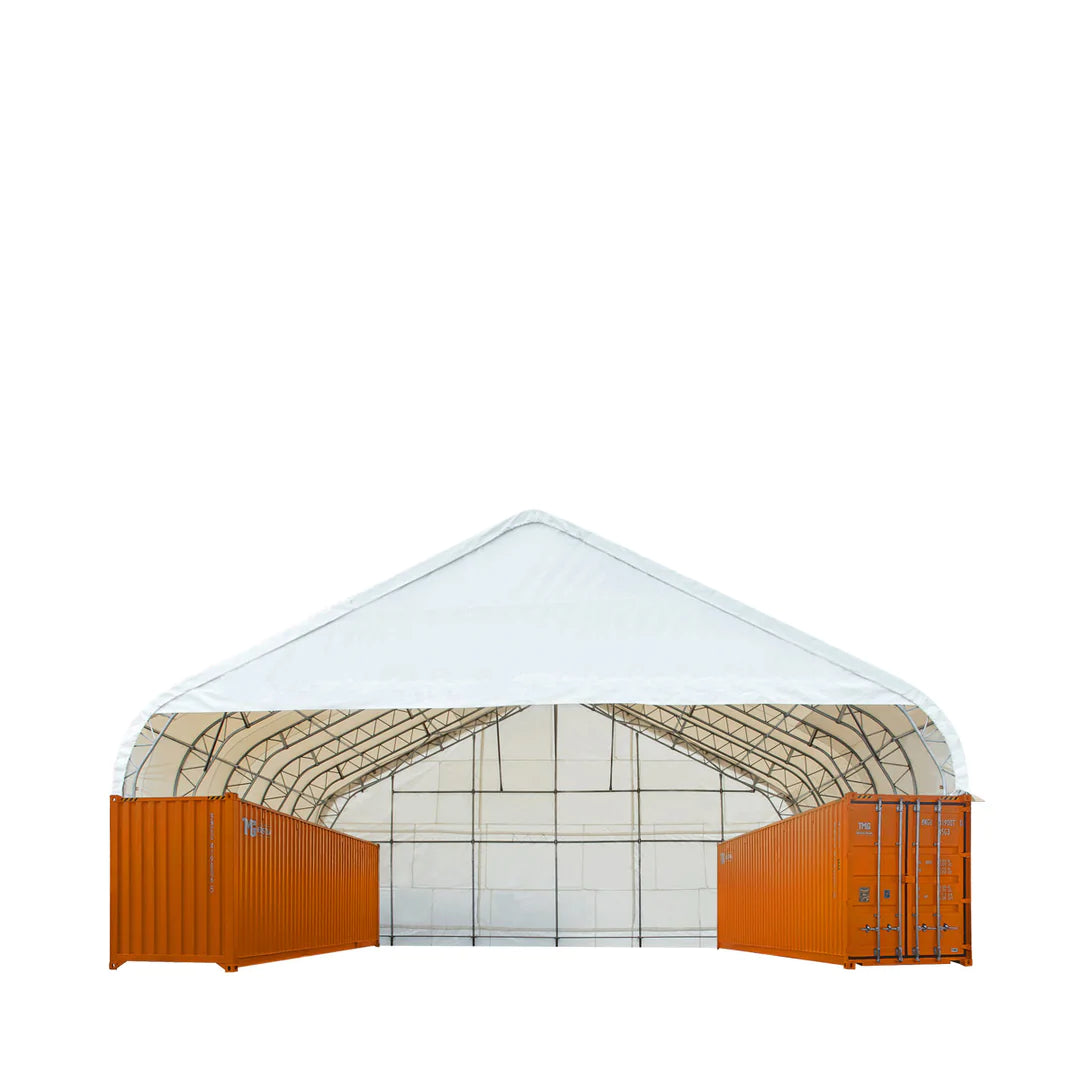

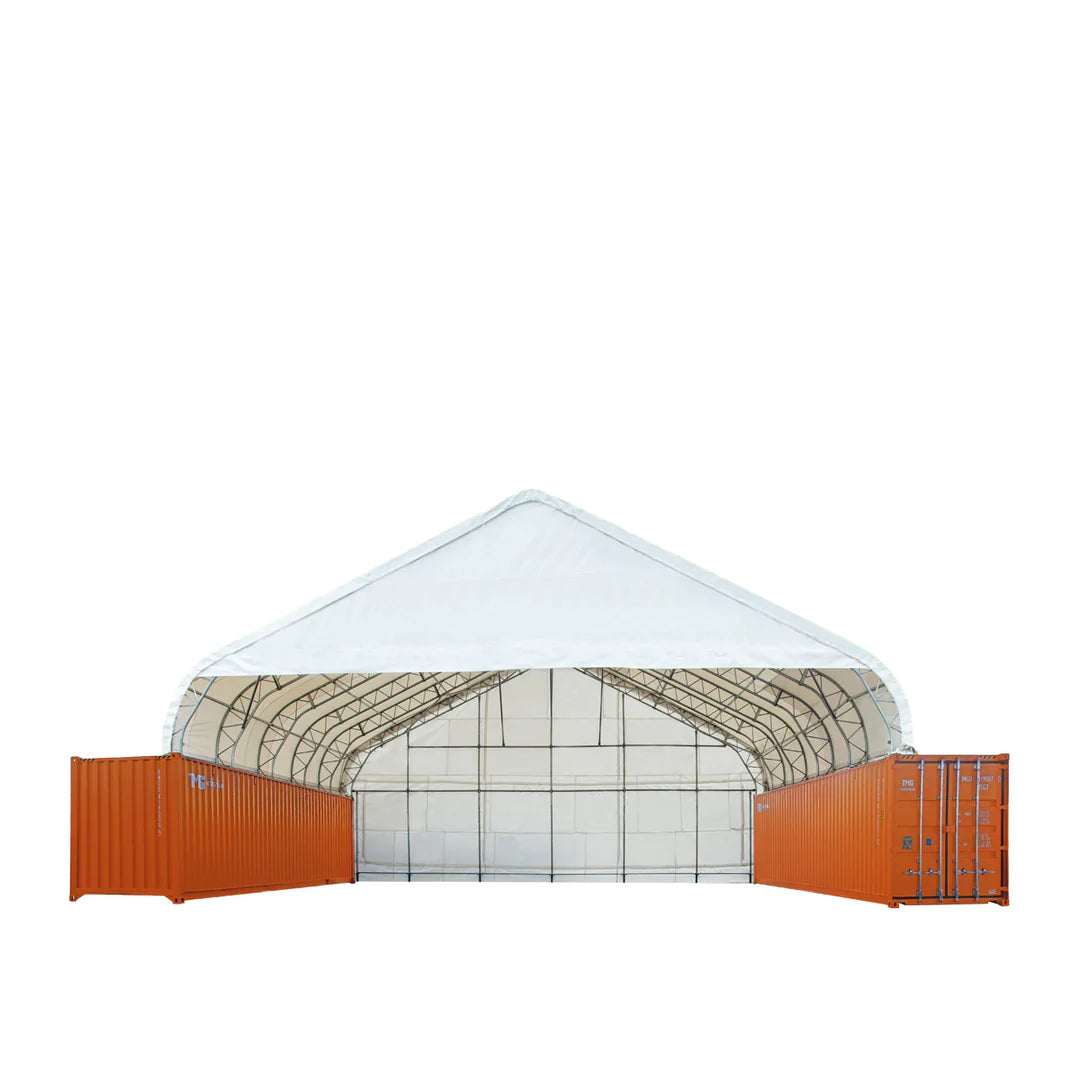

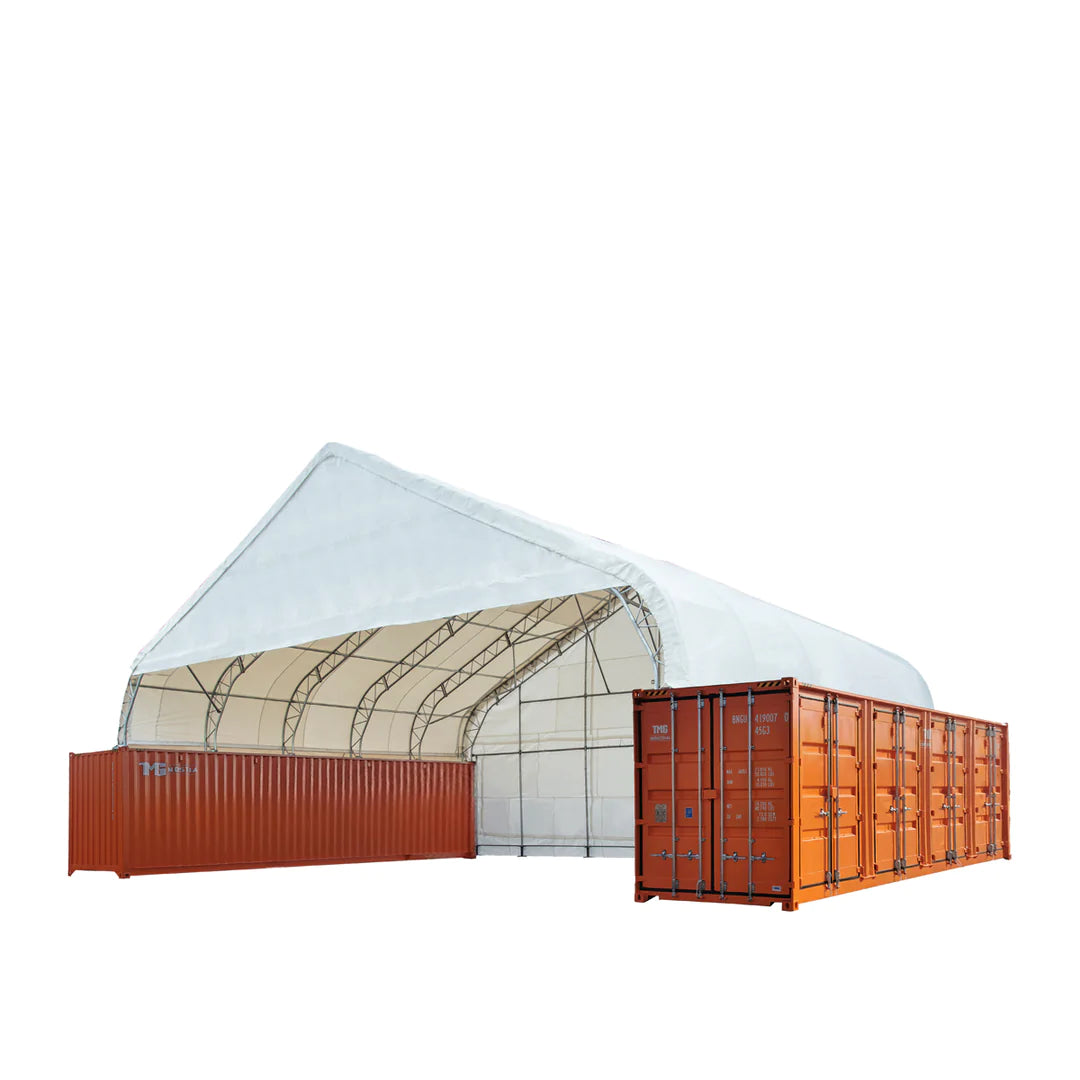

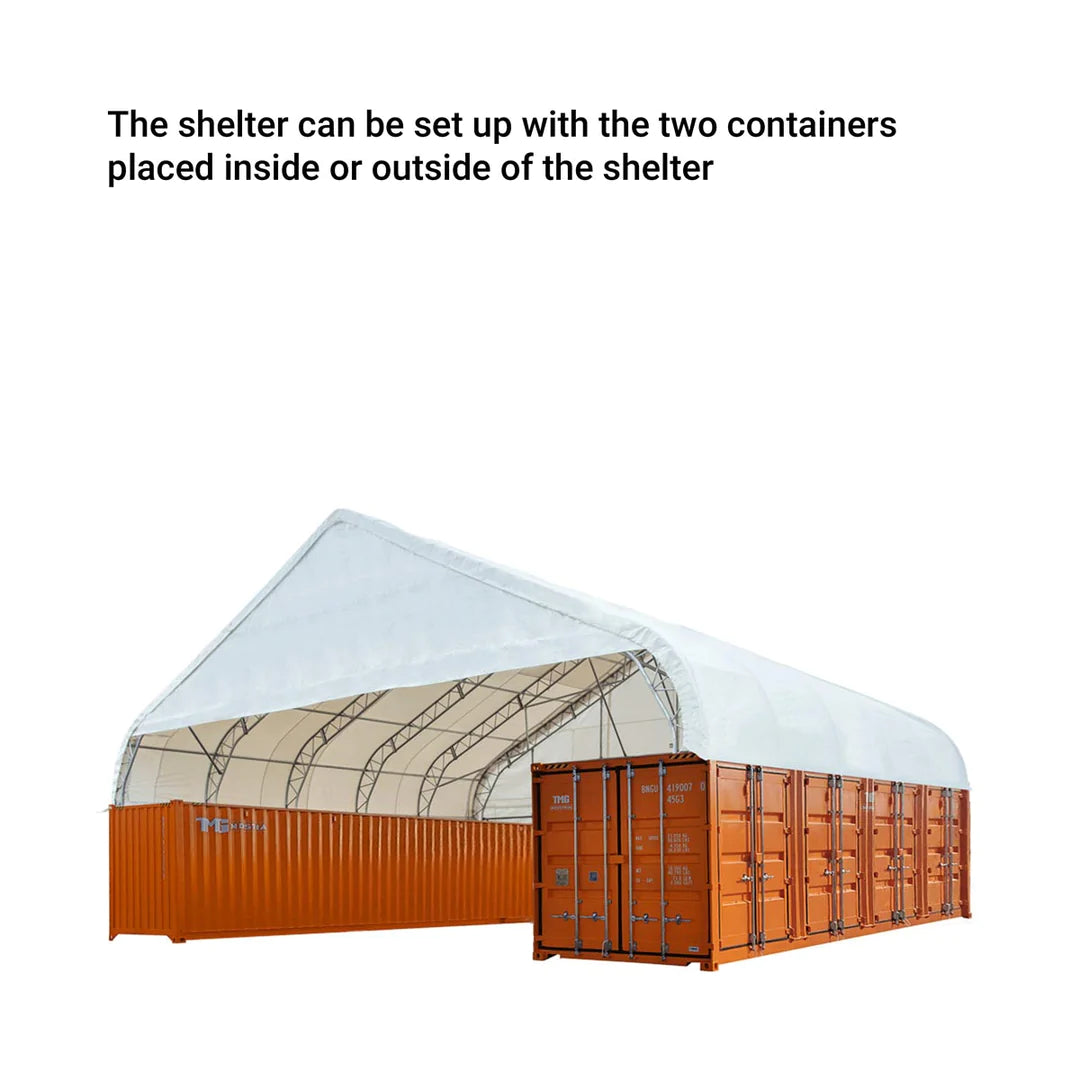

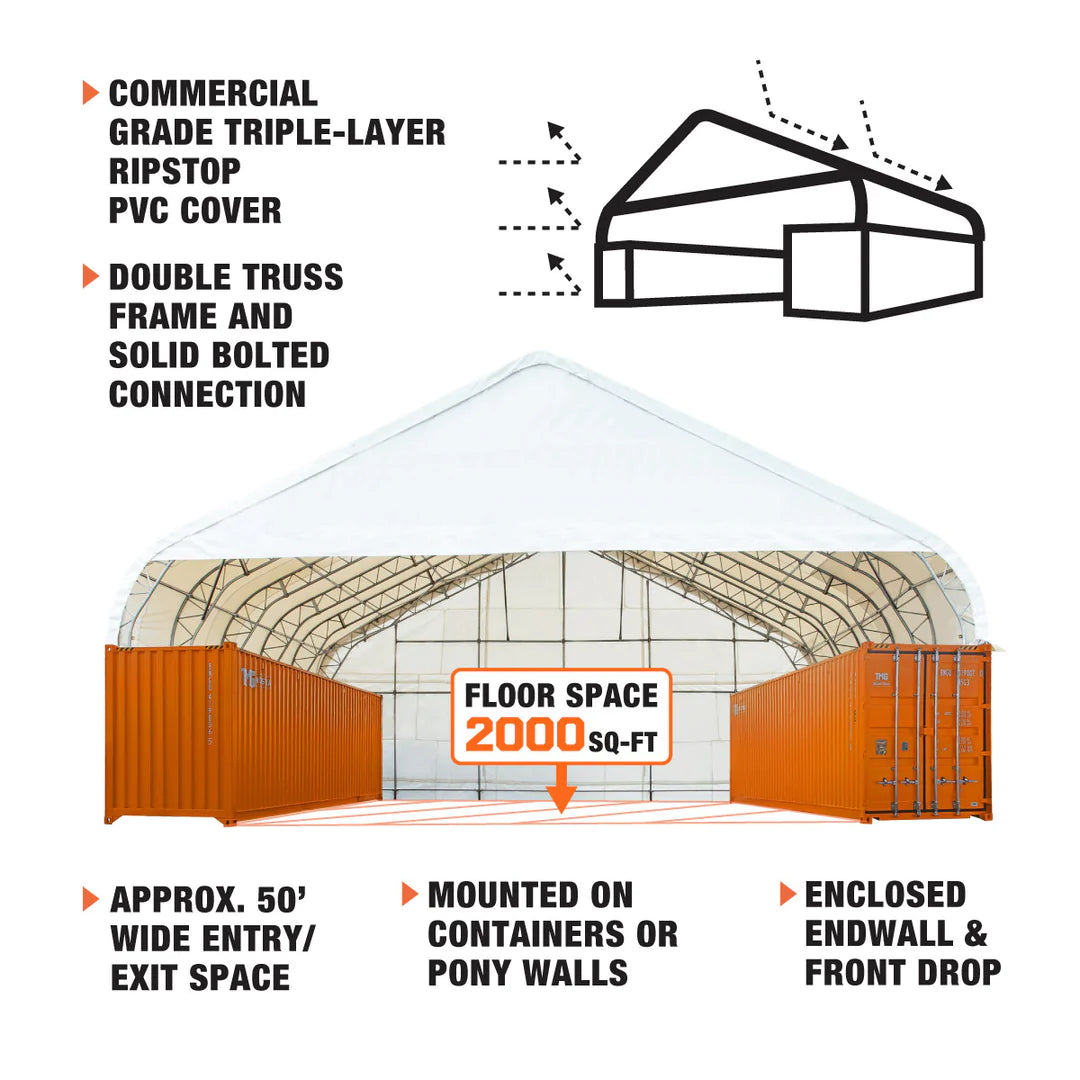

• Mounted on containers or pony walls for maximum height, versatility and useability so that it can accommodate most job sites

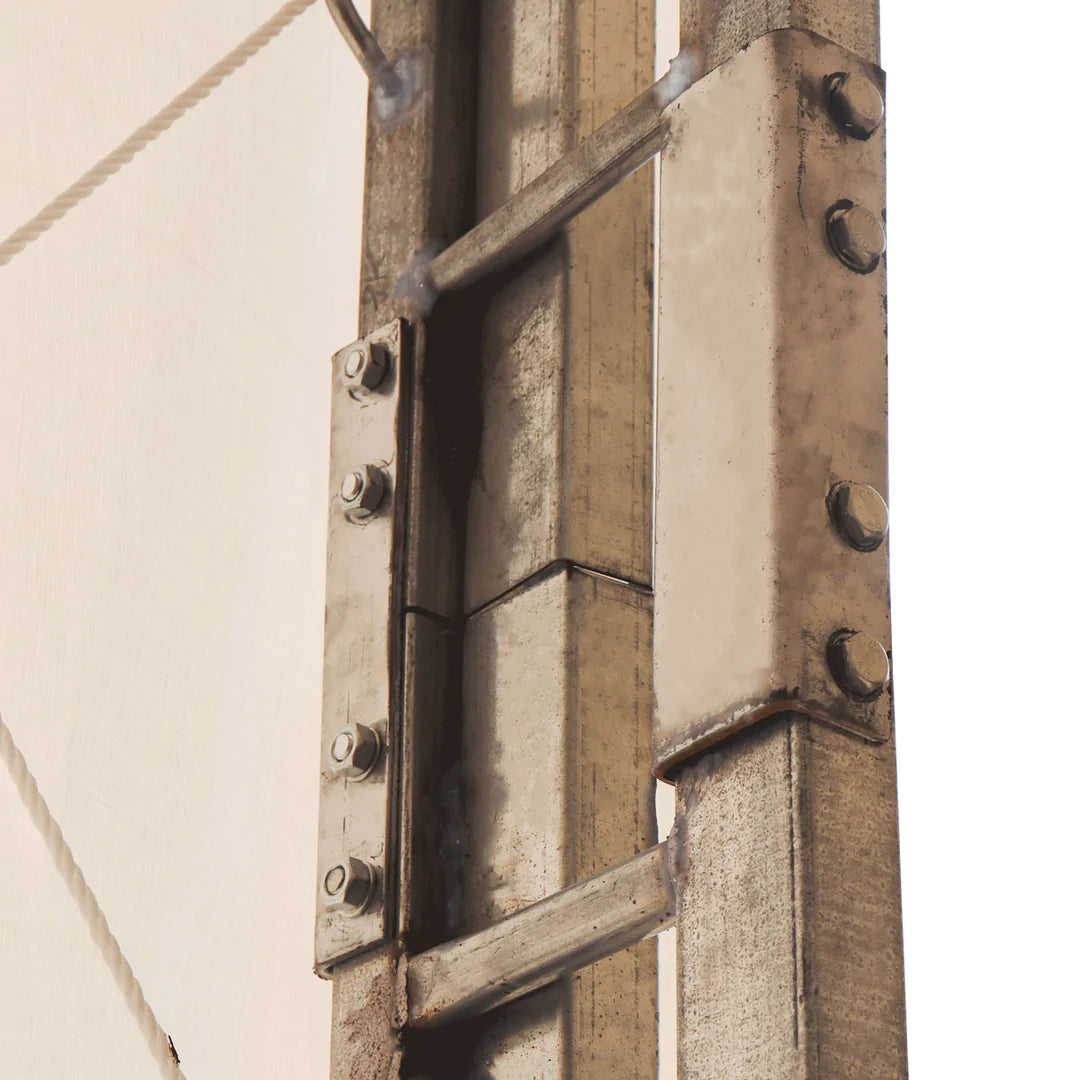

• Double truss frame and solid bolted connection on all trusses which help to reinforce the structure by increasing the support strength and rigidity
• Enclosed endwall & front drop provide an extra layer of protection for your machinery, tools, materials and other weather sensitive cargo
• Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
• Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
  • Stands strong against tearing, leaking, and chemical corrosion
  • Natural flame retardant, resistant to chemicals and oil
  • UV protected and waterproof
  • Fabric color: White
• DT Pro series is reinforced with a specially designed reduced truss spacing of 8’ for maximum strength and stability
• Approx. 50’ wide entry/exit space on both ends that allow for easy parking, machine operation and dynamic workflow to run throughout
• Easy to assemble and dismantle for efficient set up/tear down if moving from one job to another; low cost storage solution all around
• PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability

Specifications

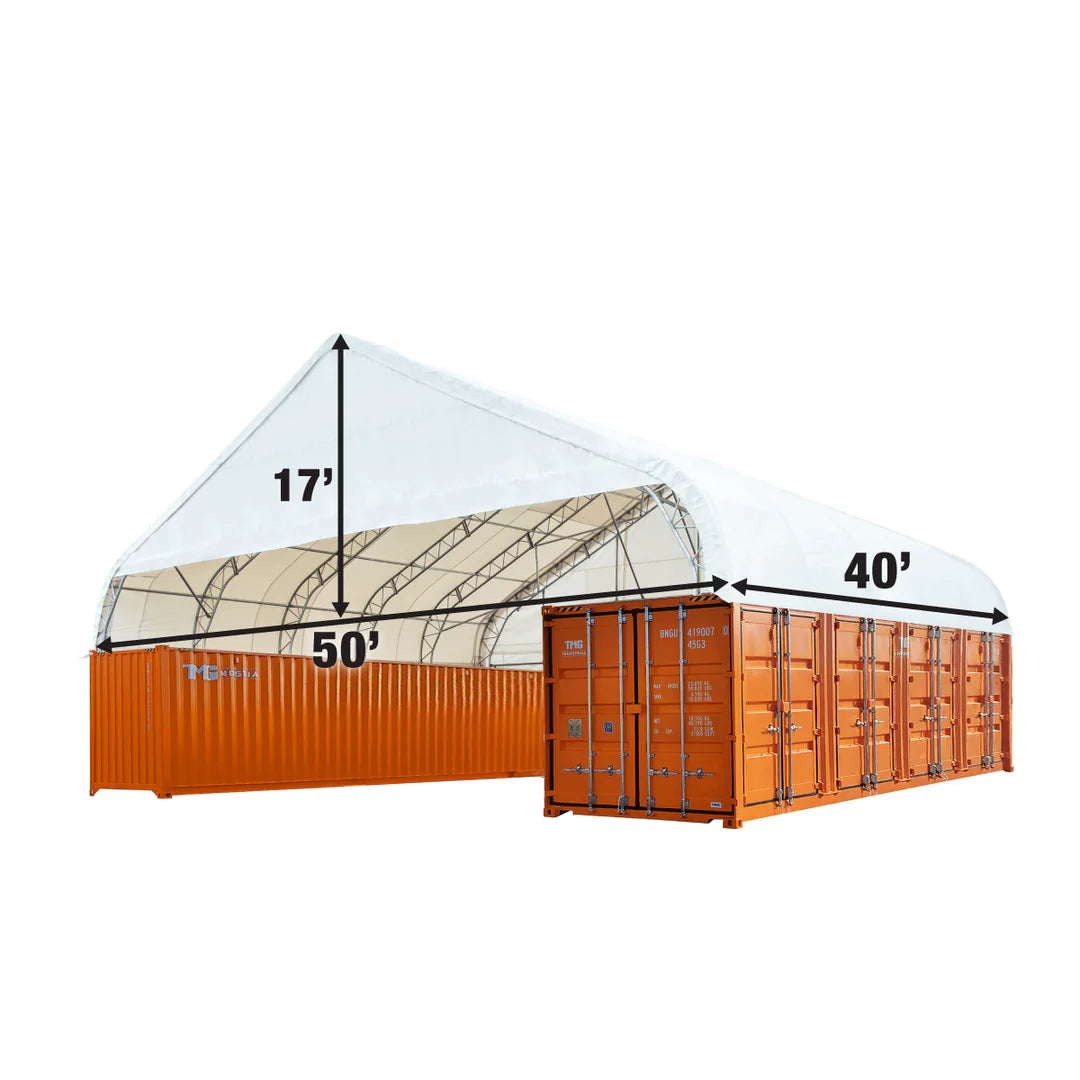

• Exact floor footprint: 50’4” (W) x 40’ (L)
• Truss spacing: 8’
• Peak ceiling height from the container top: 17'
• Peak ceiling height from the ground: 26' (with standard container height)
• Front drop clearance: 15'
• Truss tubes: 2-½” – 15 GA (approx.)
• Purlin tubes: 2-½” – 15 GA (approx.)
• Cover material: 32 oz PVC fabric (white color)

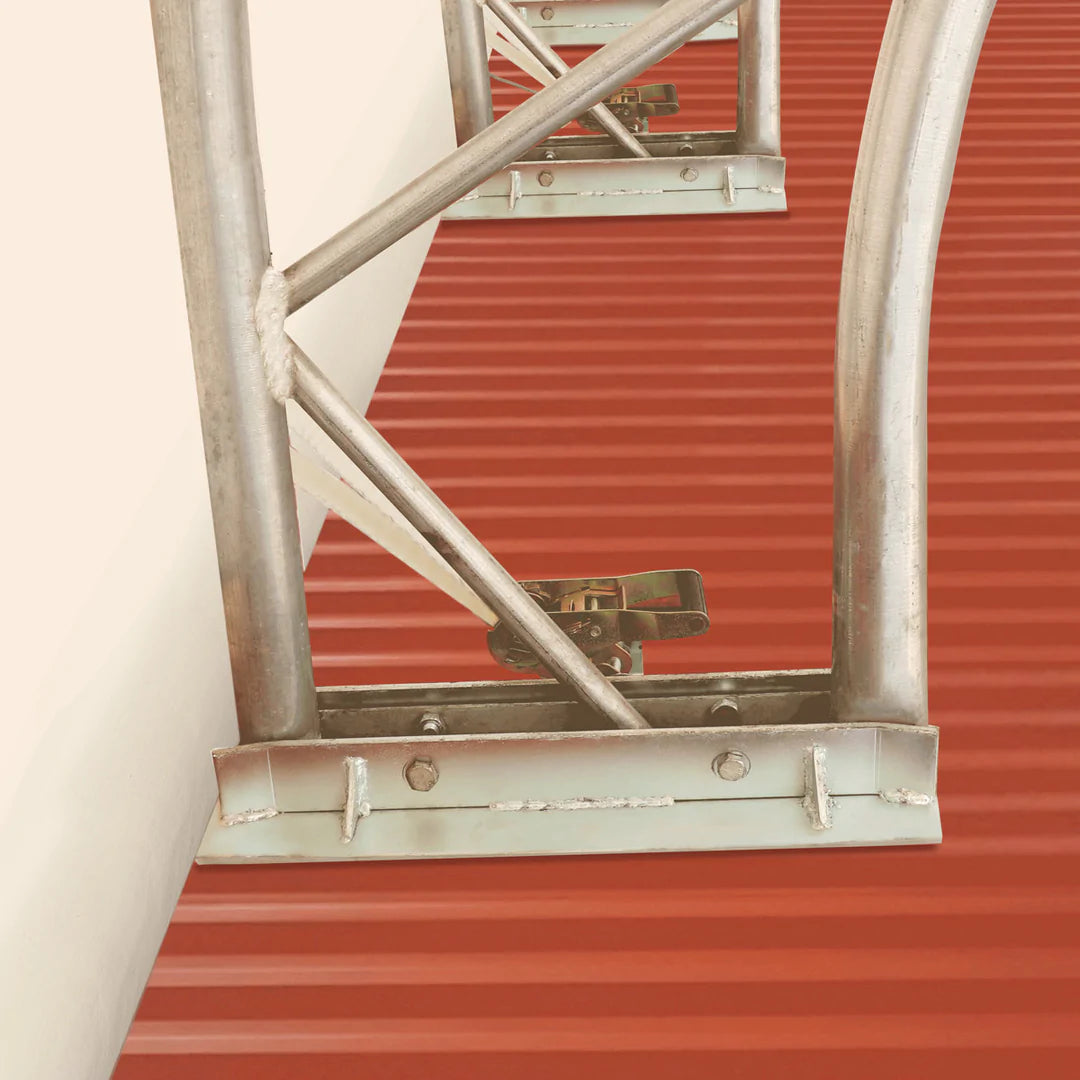

• Welding required for all footplates
• Containers not included

Shipping Information

• This product is packed in a metal crate shipping box
• Box A shipping dimension: 115” x 45” x 49” (L x W x H)
• Box B shipping dimension: 115” x 45” x 49” (L x W x H)
• Shipping weight: 5234 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

***This product is too large for tailgate delivery.
A forklift or equivalent is required to accept delivery.***
