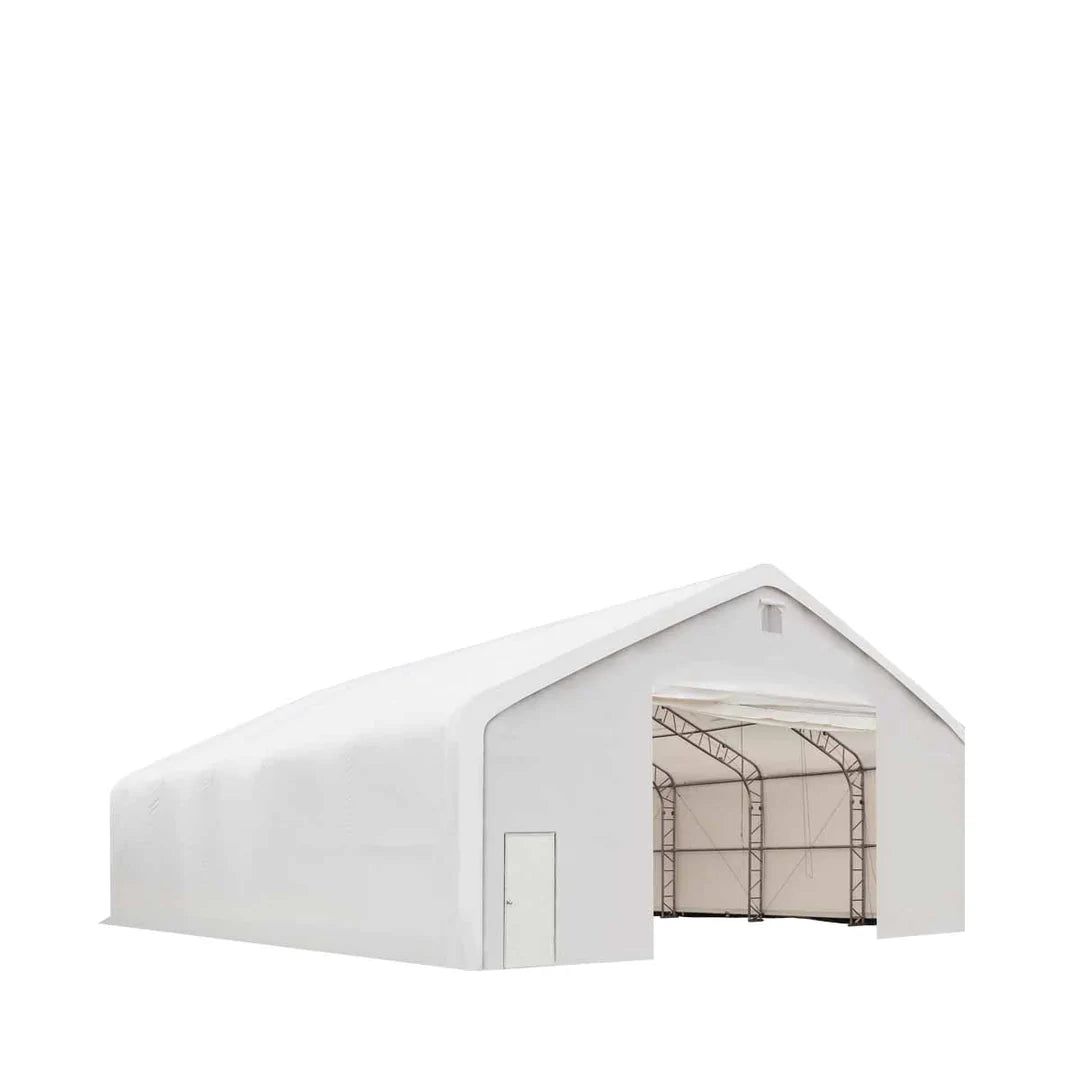

Features

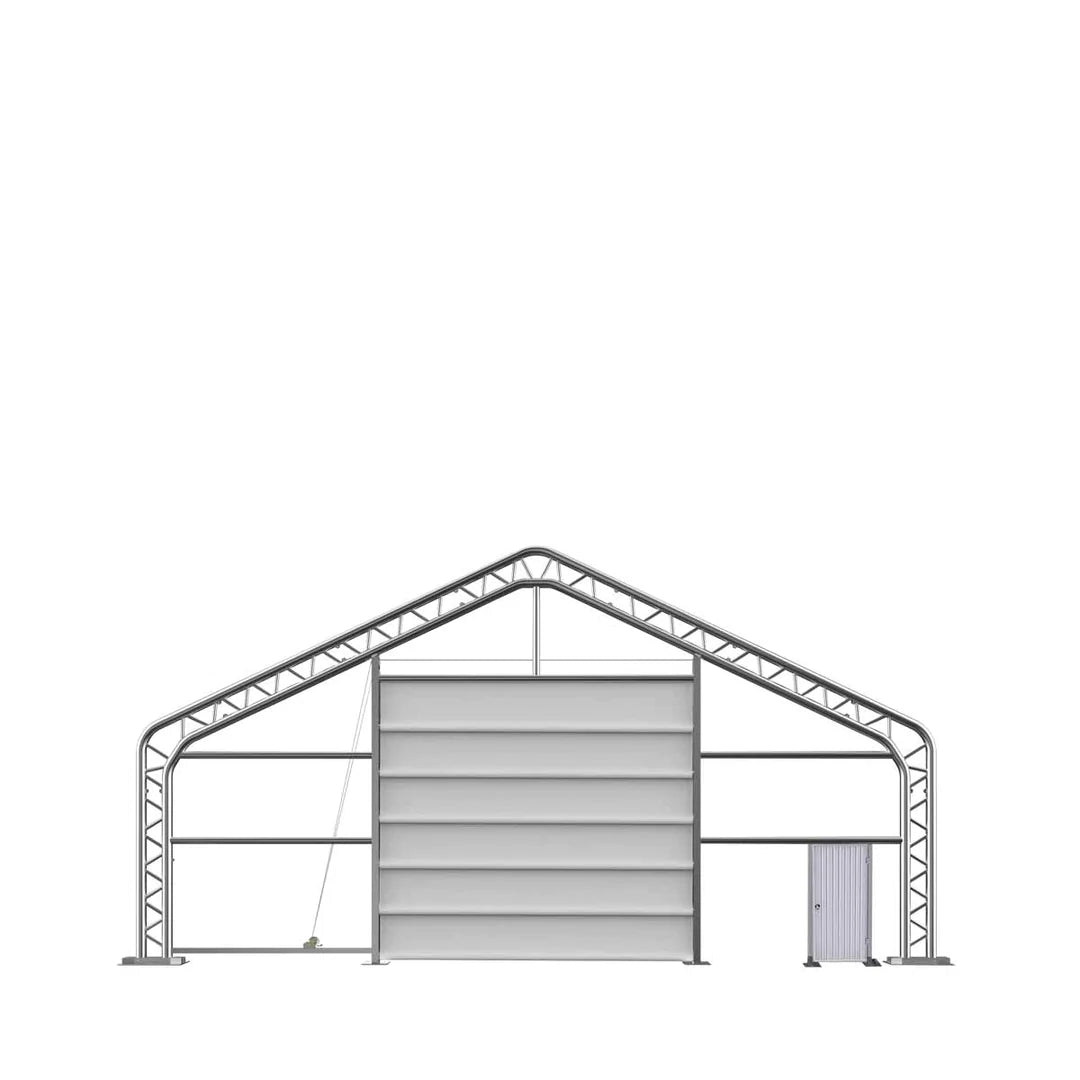

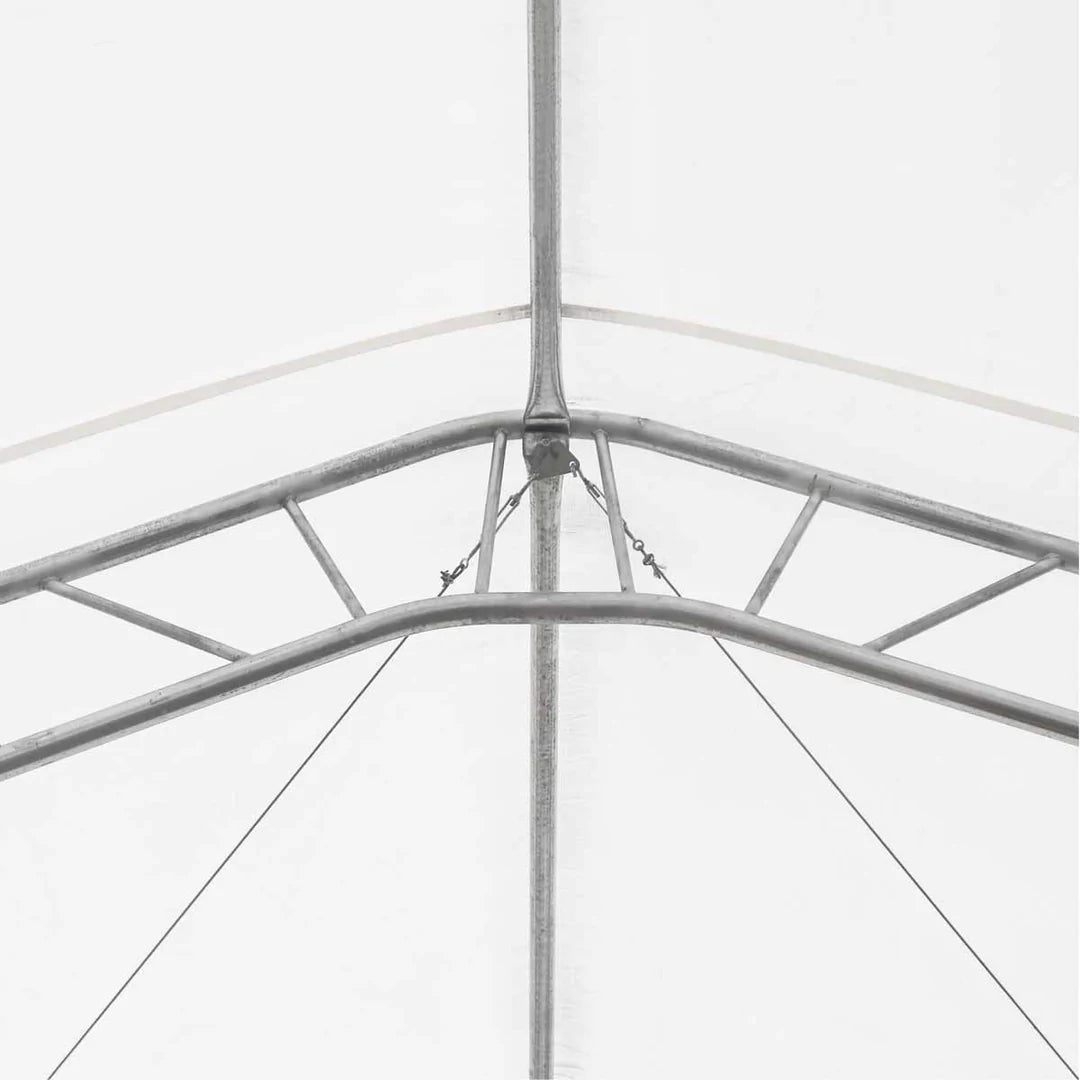

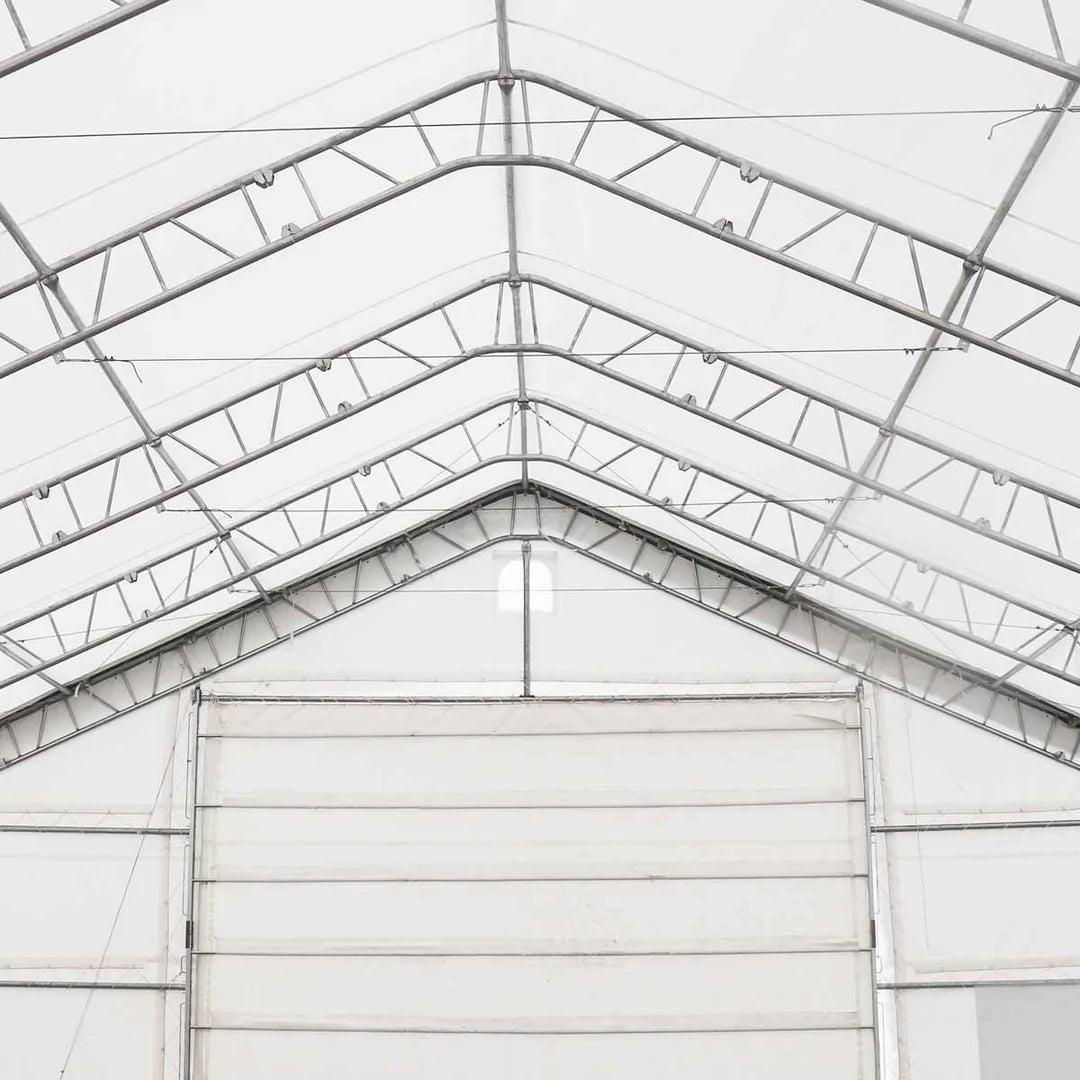

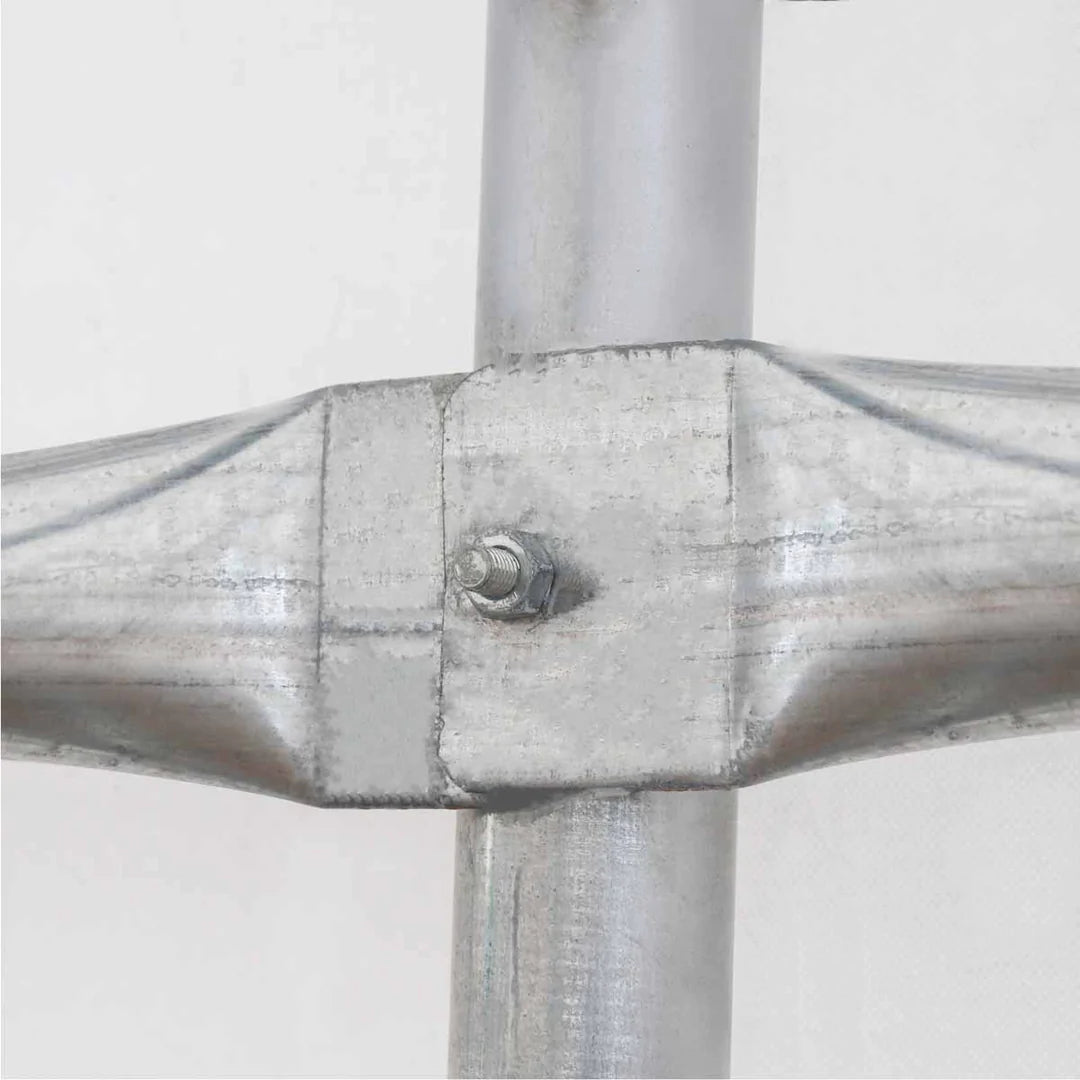

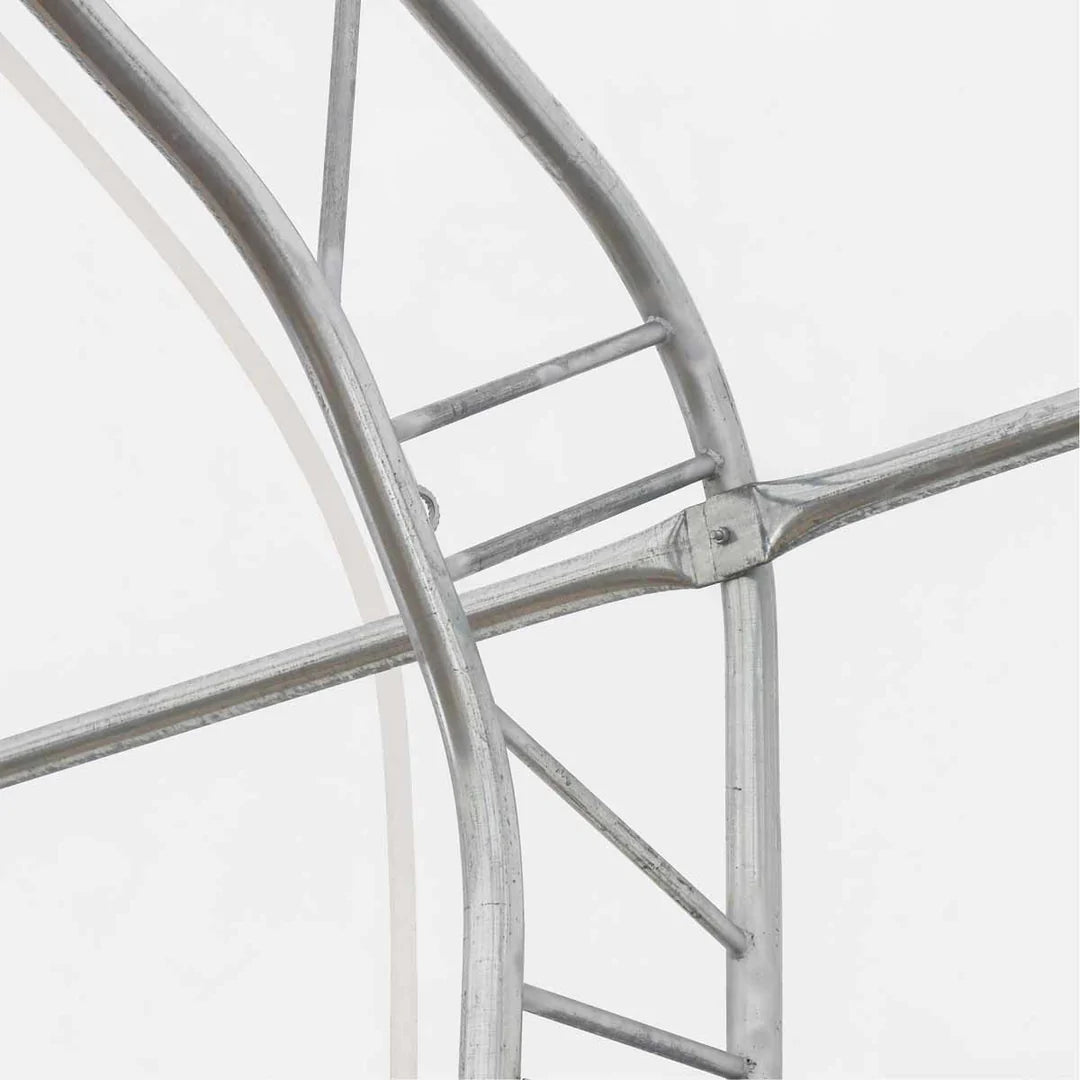

• Double truss frame and solid bolted, U-shaped channel connection on all trusses to increase support strength and rigidity
• Can install on any concrete pad or equivalent for a clean, professional covered space that can be used for any type of work or storage
• Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
• Use as a sawing shed, maintenance shop or for large equipment, materials and vehicle storage; adaptable to any kind of covered outdoor needs
• Easy to assemble and install while costing far less than a comparable commercial size building; 1600 sq-ft of covered storage space

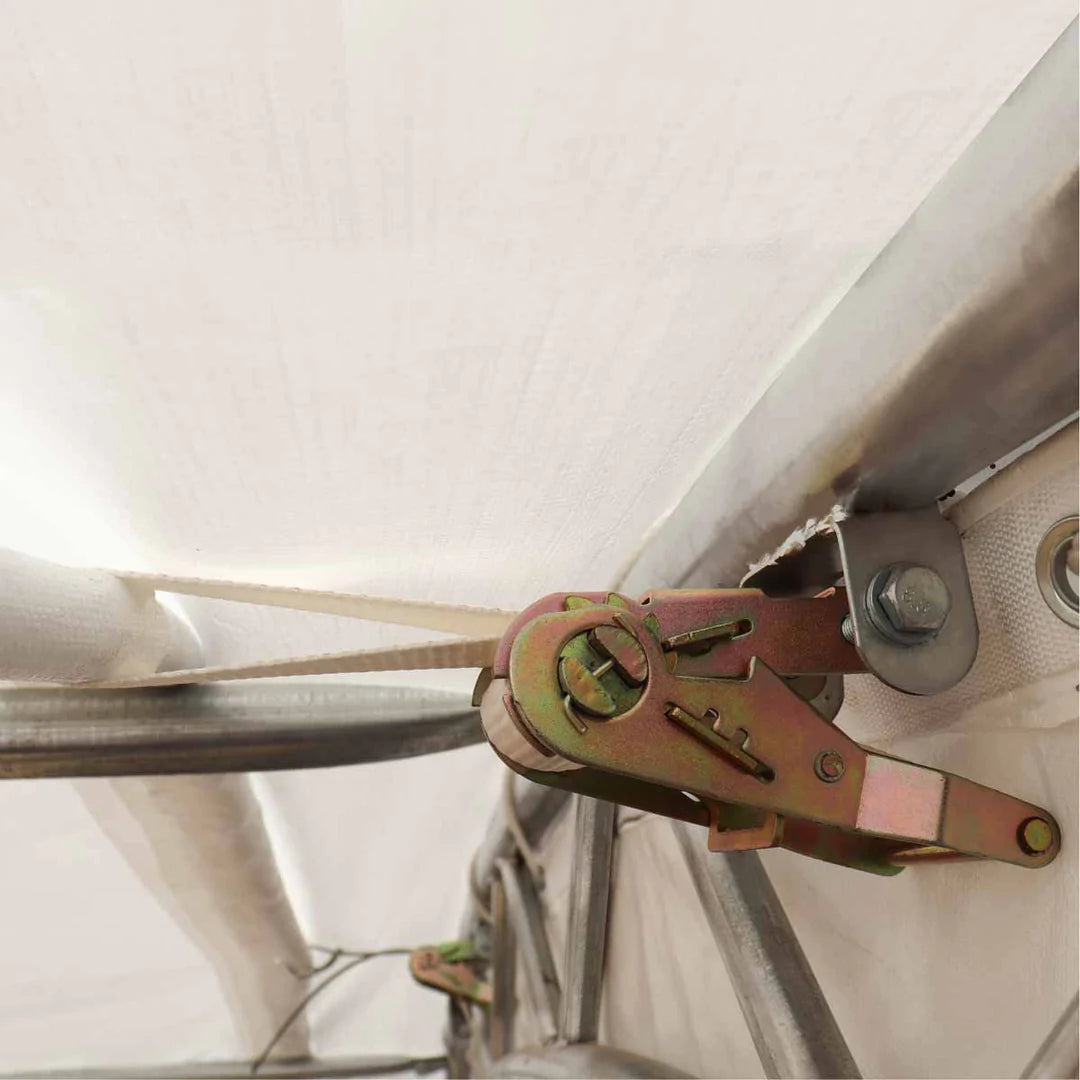

• Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
  • Stands strong against tearing, leaking, and chemical corrosion
  • Natural flame retardant, resistant to chemicals and oil
  • UV protected and waterproof
  • Fabric color: White

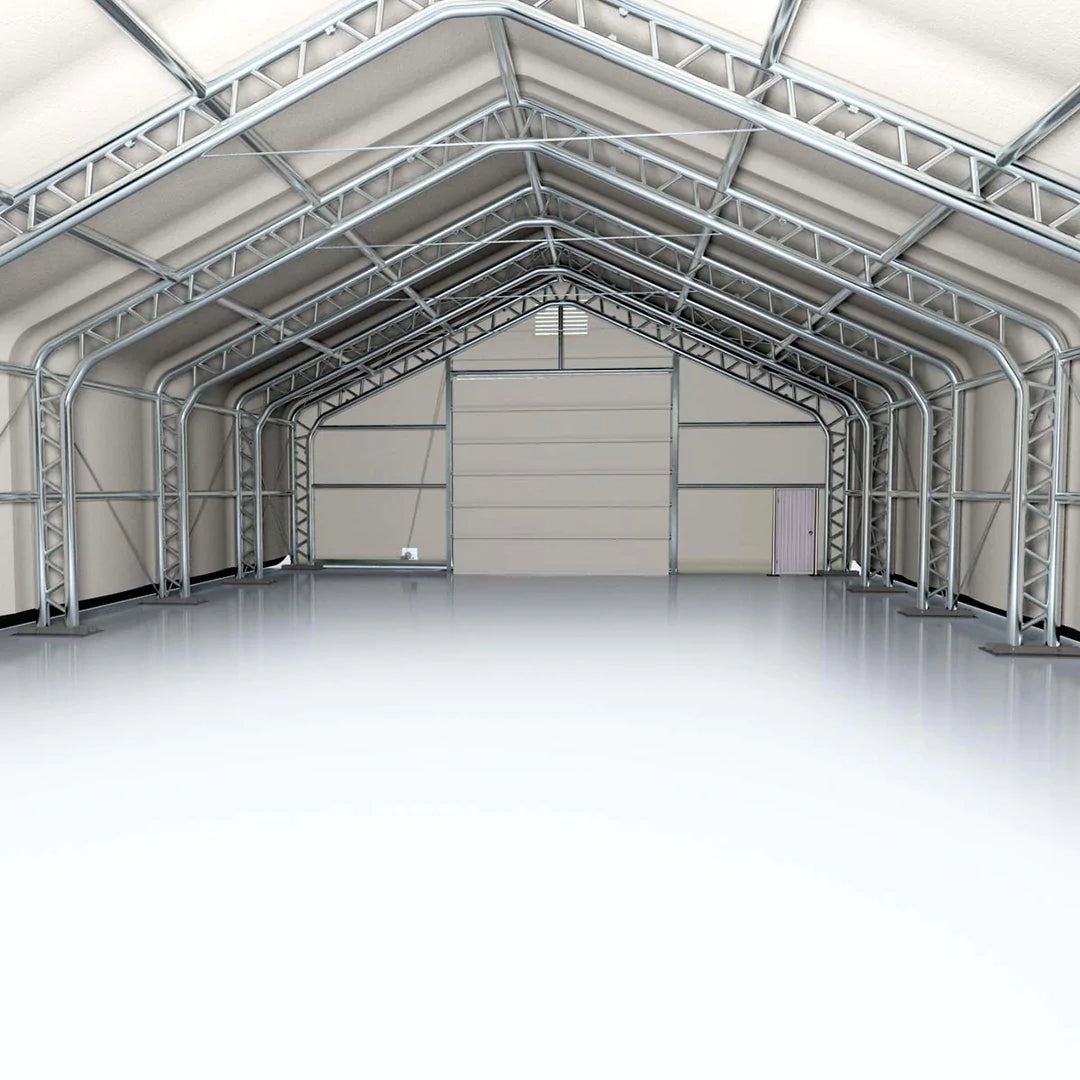

• DT Pro series is reinforced with a specially designed reduced truss spacing of 8’ for maximum strength and stability

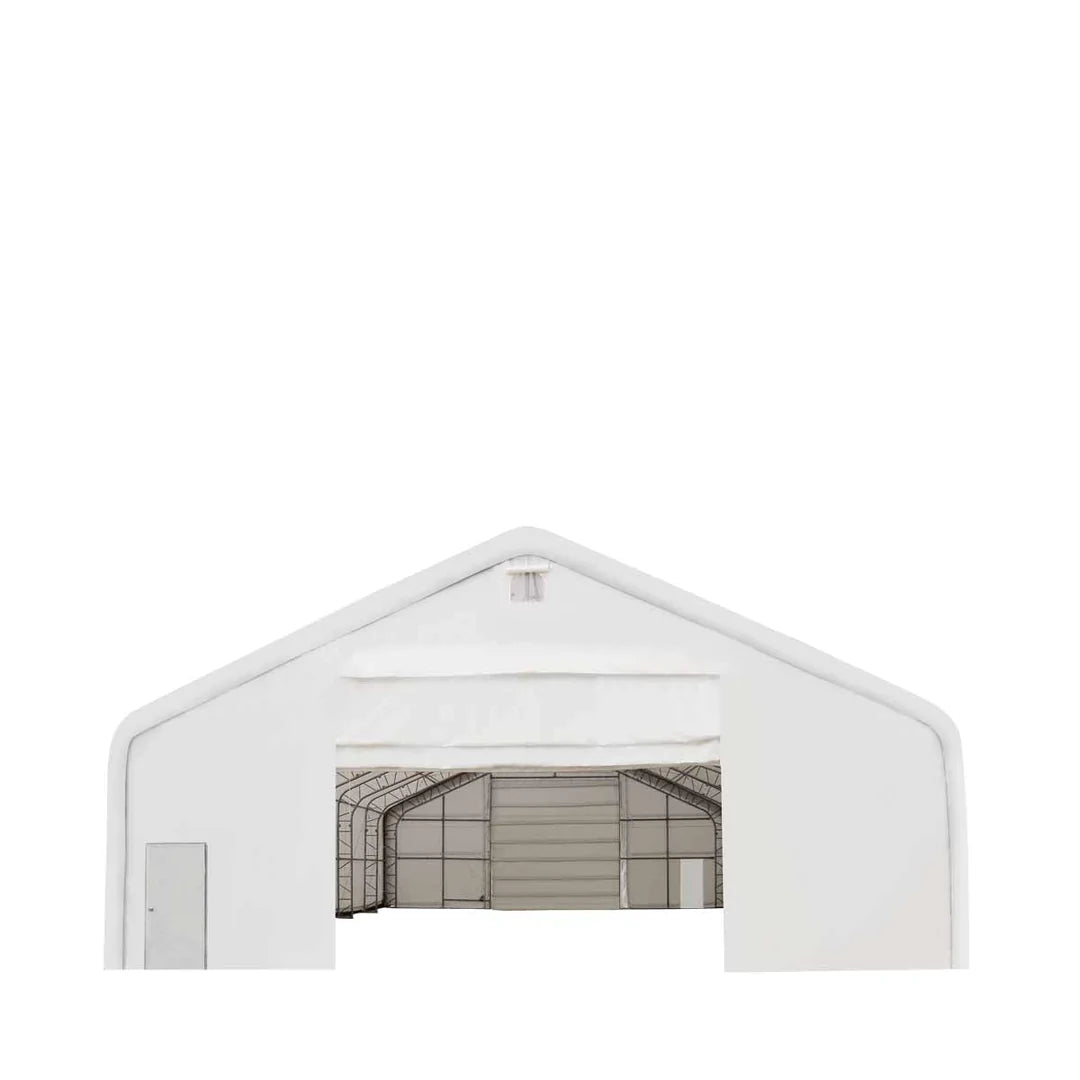

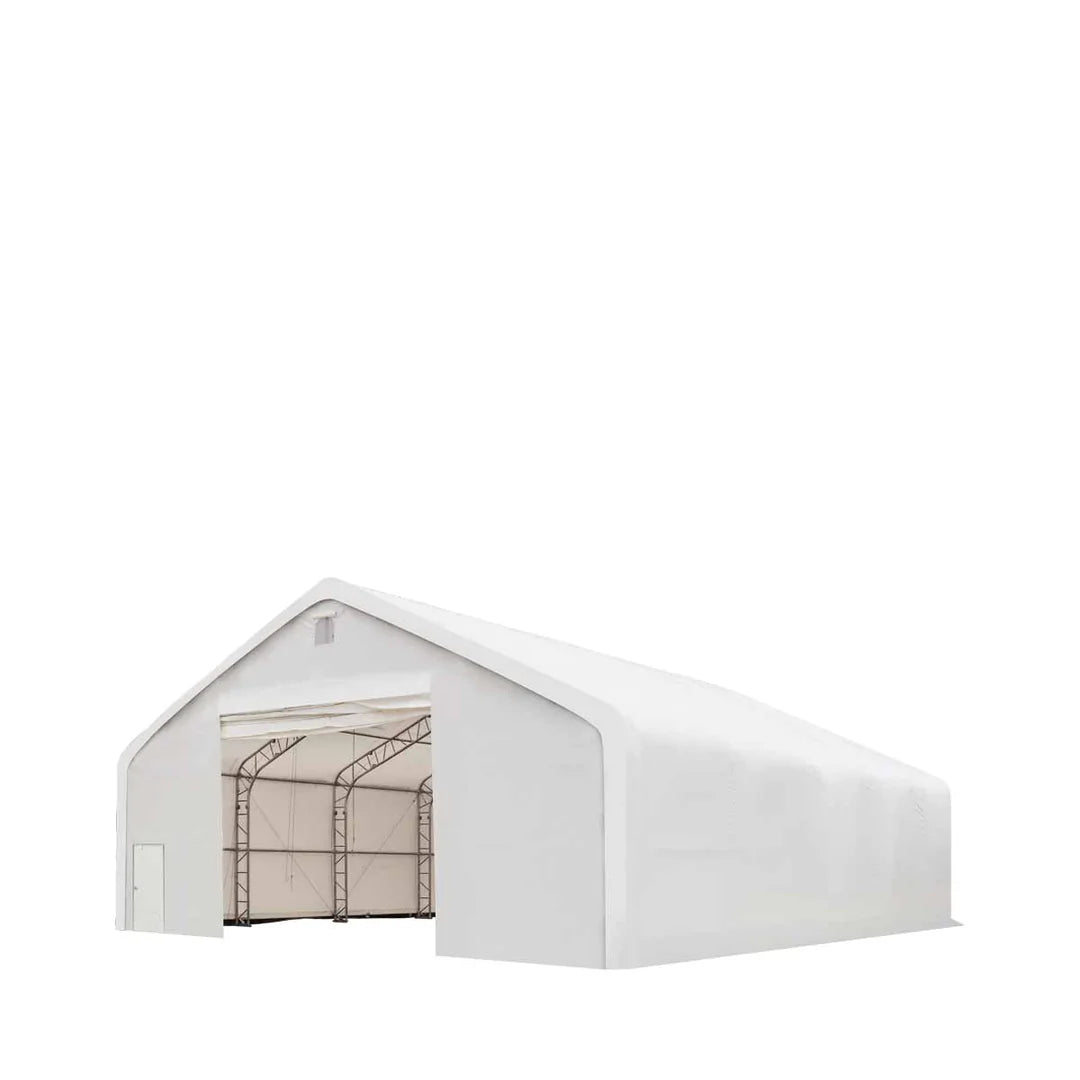

• Approx. 15’ wide front and 20’ wide rear winch roll-up doors allow for easy parking and dynamic workflow to run throughout
• Peaked roof design prevents snow build up and allows moisture to be guided off the sides, protecting you and your equipment from the elements

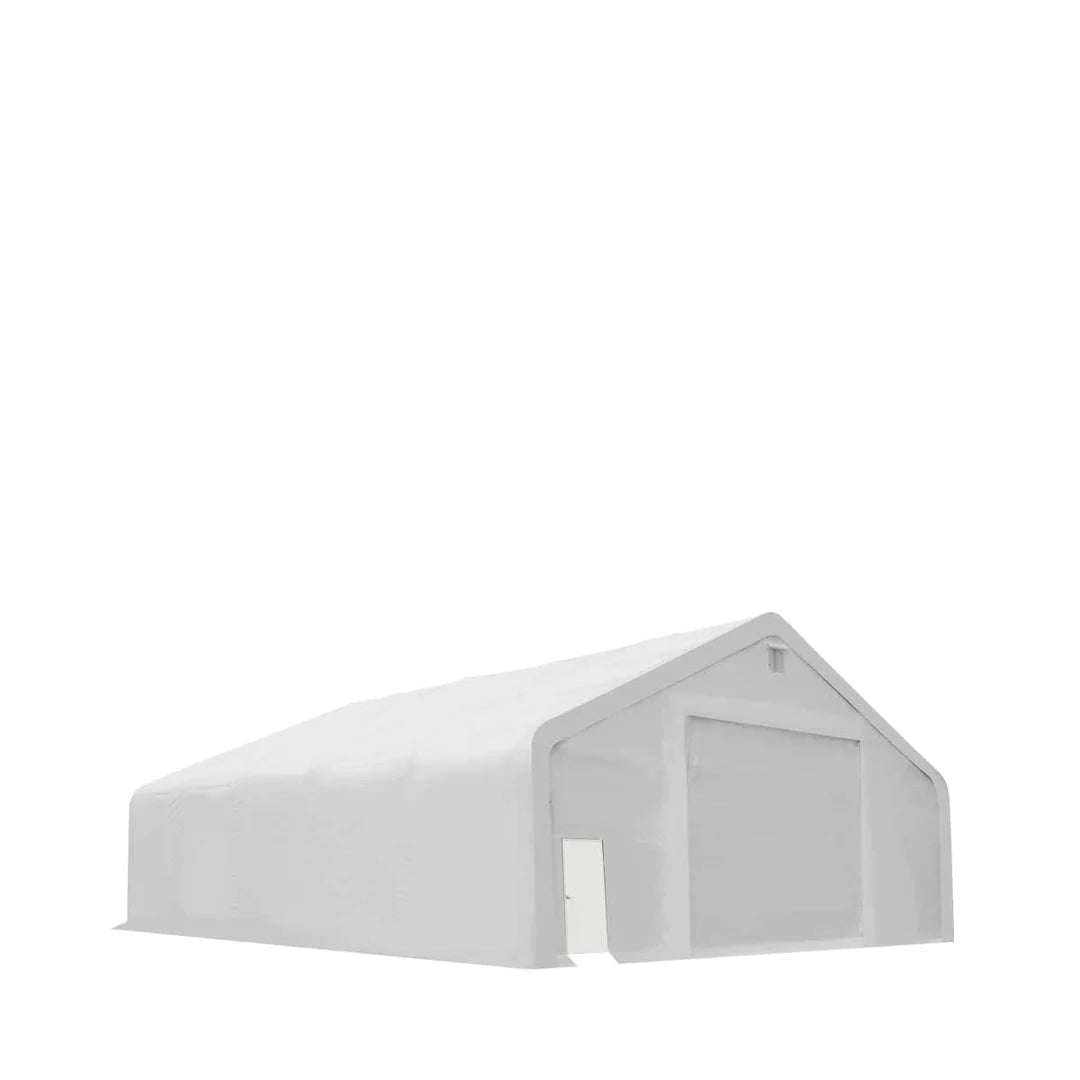

• Steel man door offers convenient side entry, similar to the entrance of a house, that you can use instead of constantly opening the main door
• PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability



Specifications

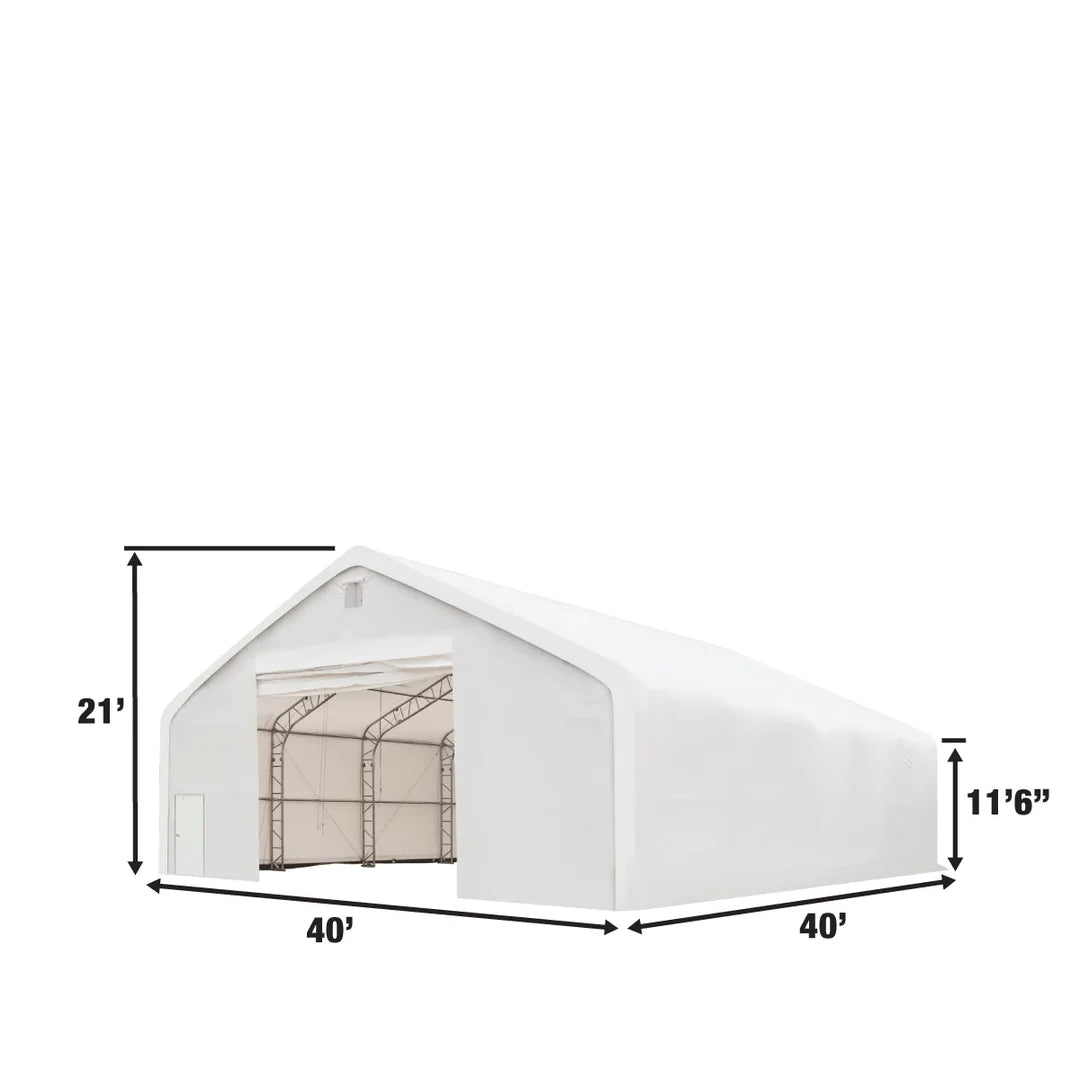

• Exact floor footprint: 40’4” (W) x 40’ (L)
• Truss spacing: 8’
• Peak ceiling height: 21'
• Side-wall height: 11’6”
• Truss tubes: 2-½” – 15 GA (approx.)
• Purlin tubes: 2-½” – 15 GA (approx.)
• Man Door: 3’ x 6’6” (W x H)
• Winch roll-up door on both ends with drive through clearance:

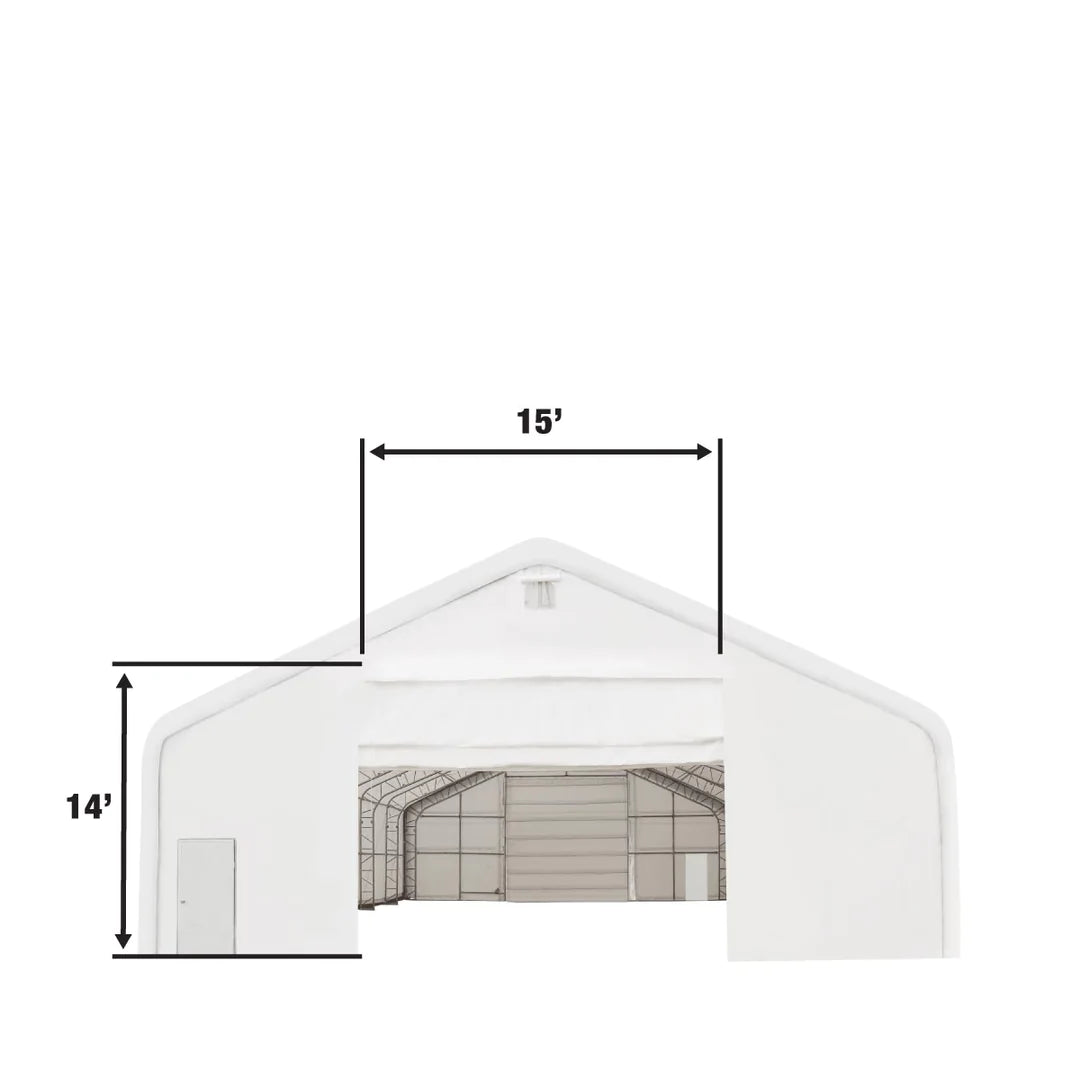

  • Front door: 15’ (W) x 14’ (H)
  • Rear door: 19’8” (W) x 12'6” (H)
• Cover material: 21 oz PVC fabric (white color)
• Air vents on both ends

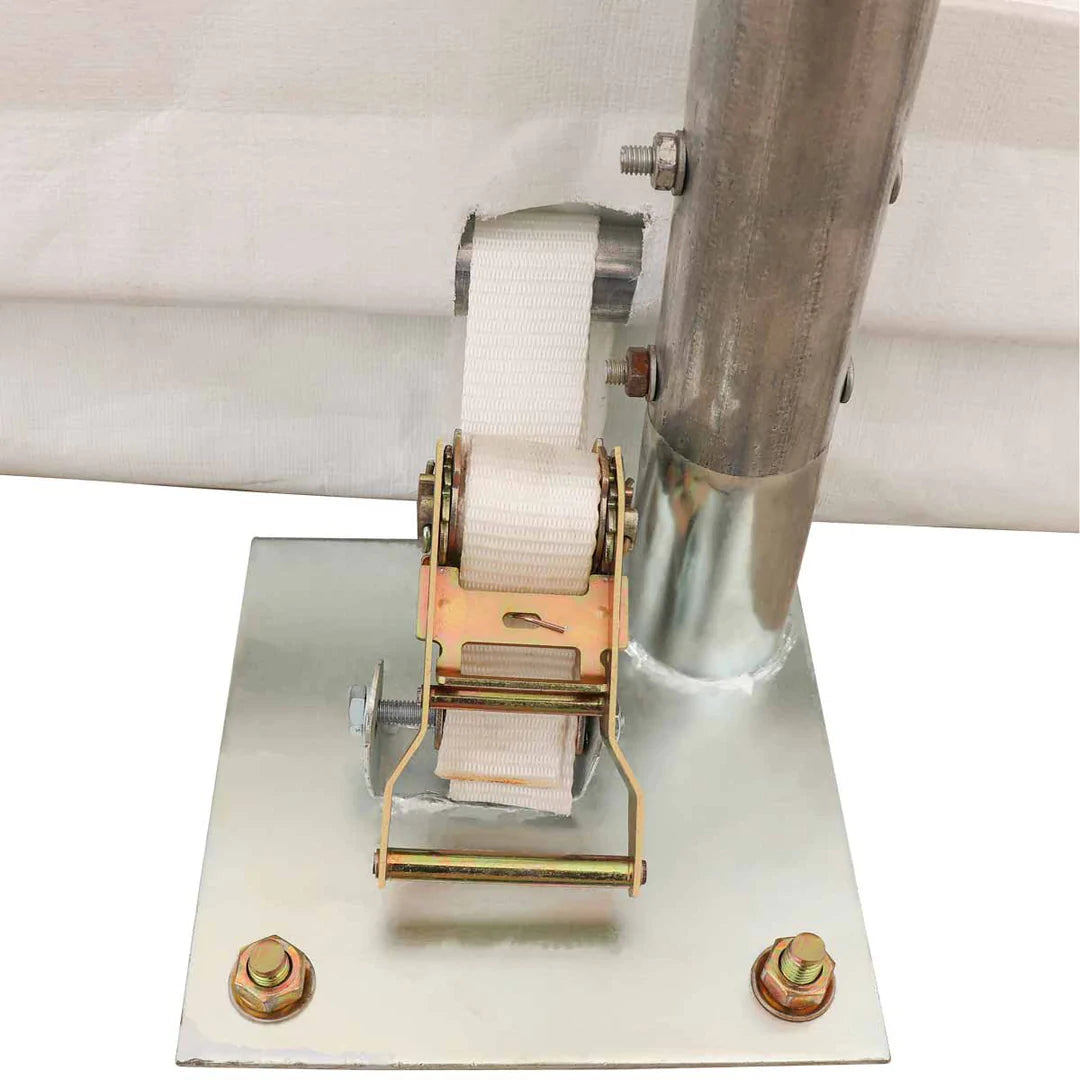

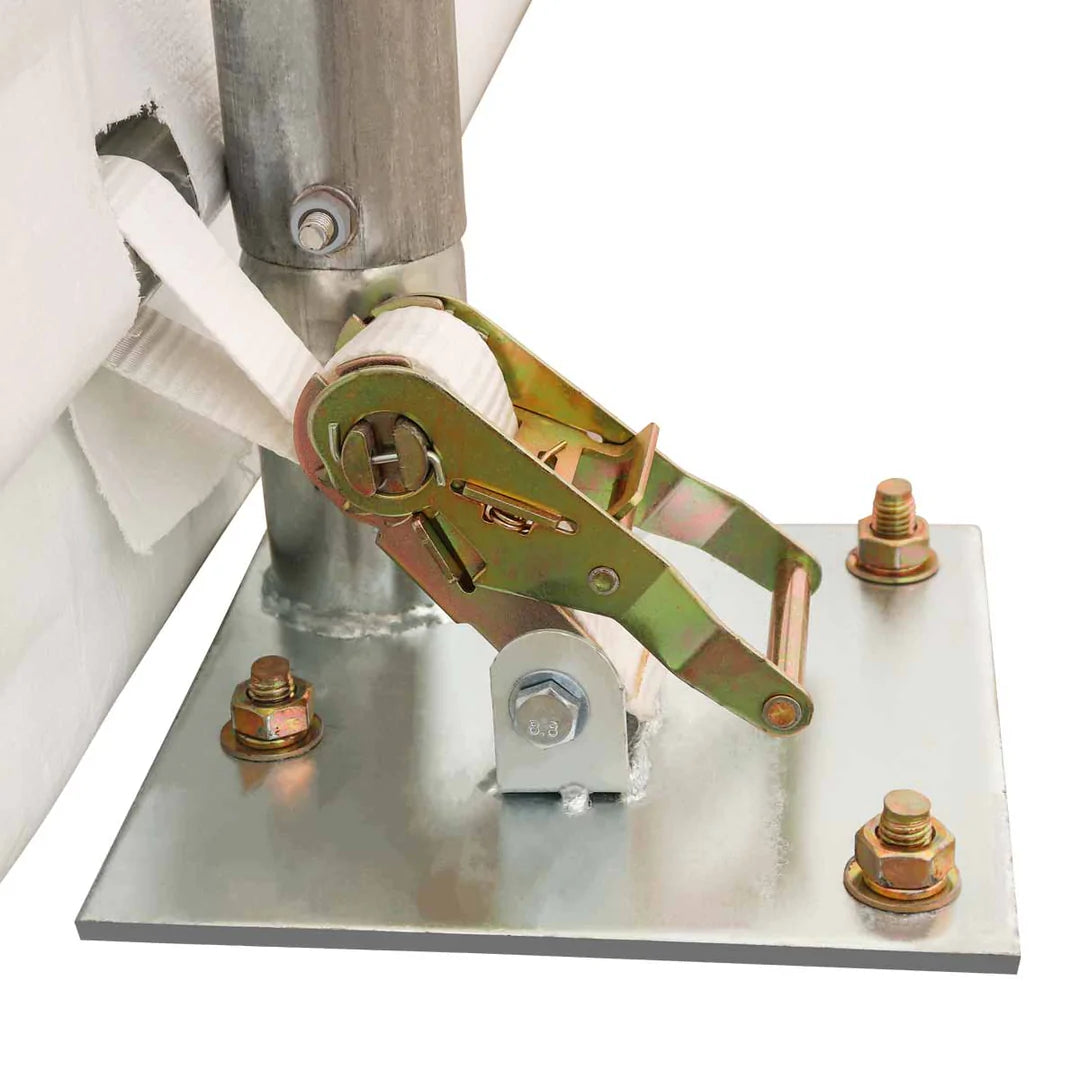

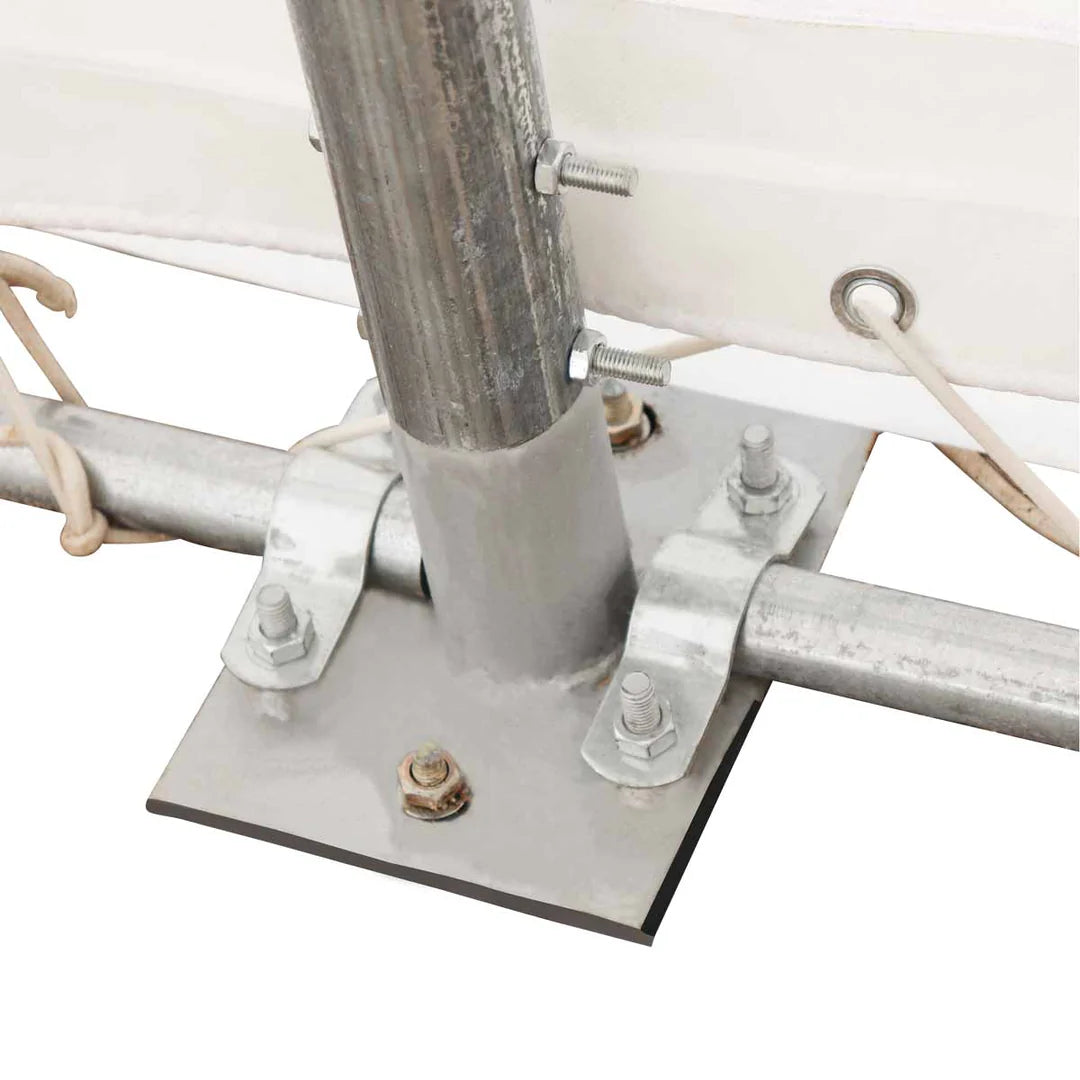

• Footplates with pre-drilled holes (anchor bolts not included)
• Foundation required: Concrete slabs or equivalent



Shipping Information

• This product is packed in two metal crate shipping boxes
• Box A shipping dimension: 122” x 45” x 49”
• Box B shipping dimension: 111” x 45” x 49”
• Shipping weight: 4855 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

***This product is too large for tailgate delivery.
A forklift or equivalent is required to accept delivery.***
