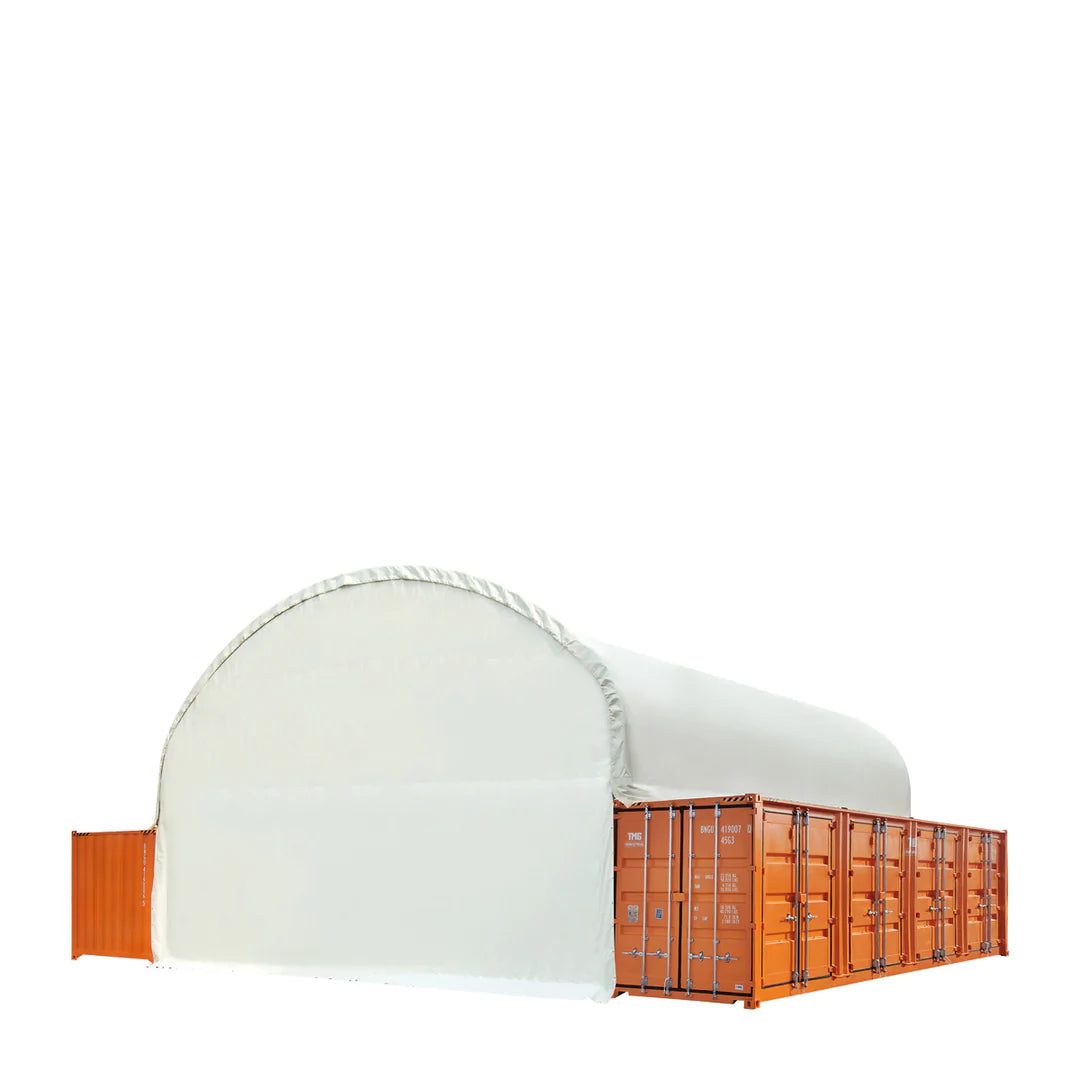

Features

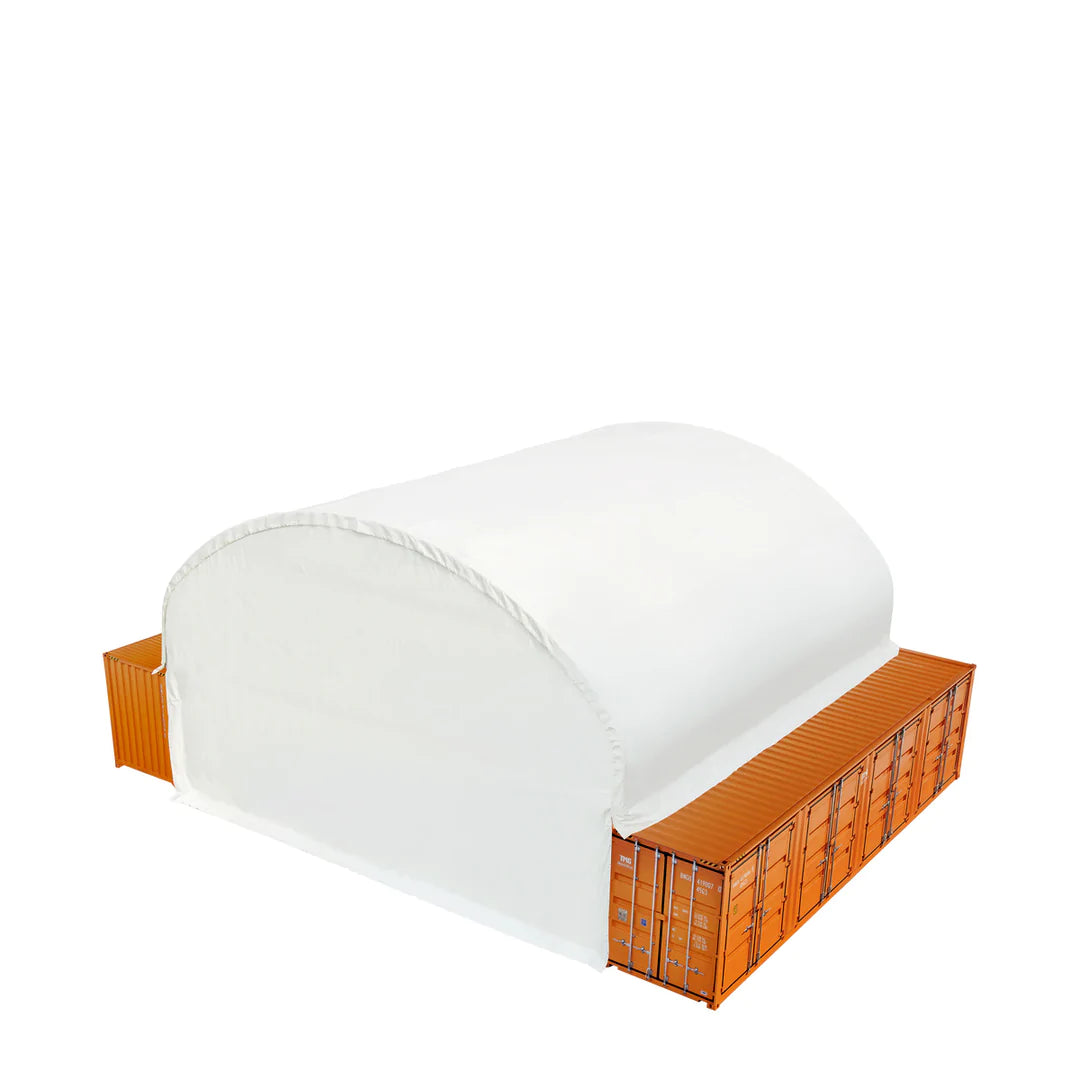

• Mounted on containers or pony walls for maximum height, versatility and useability so that it can accommodate most job sites

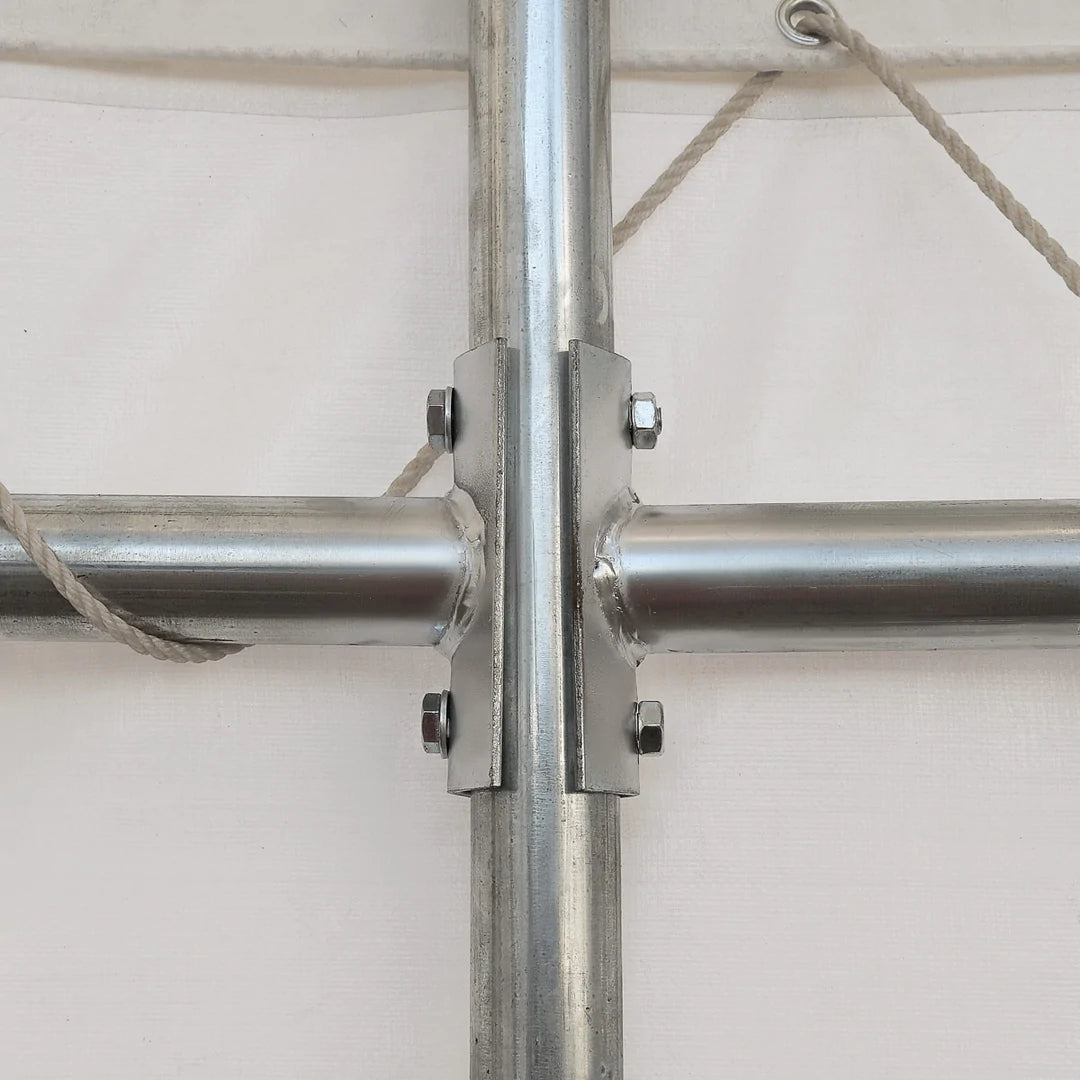

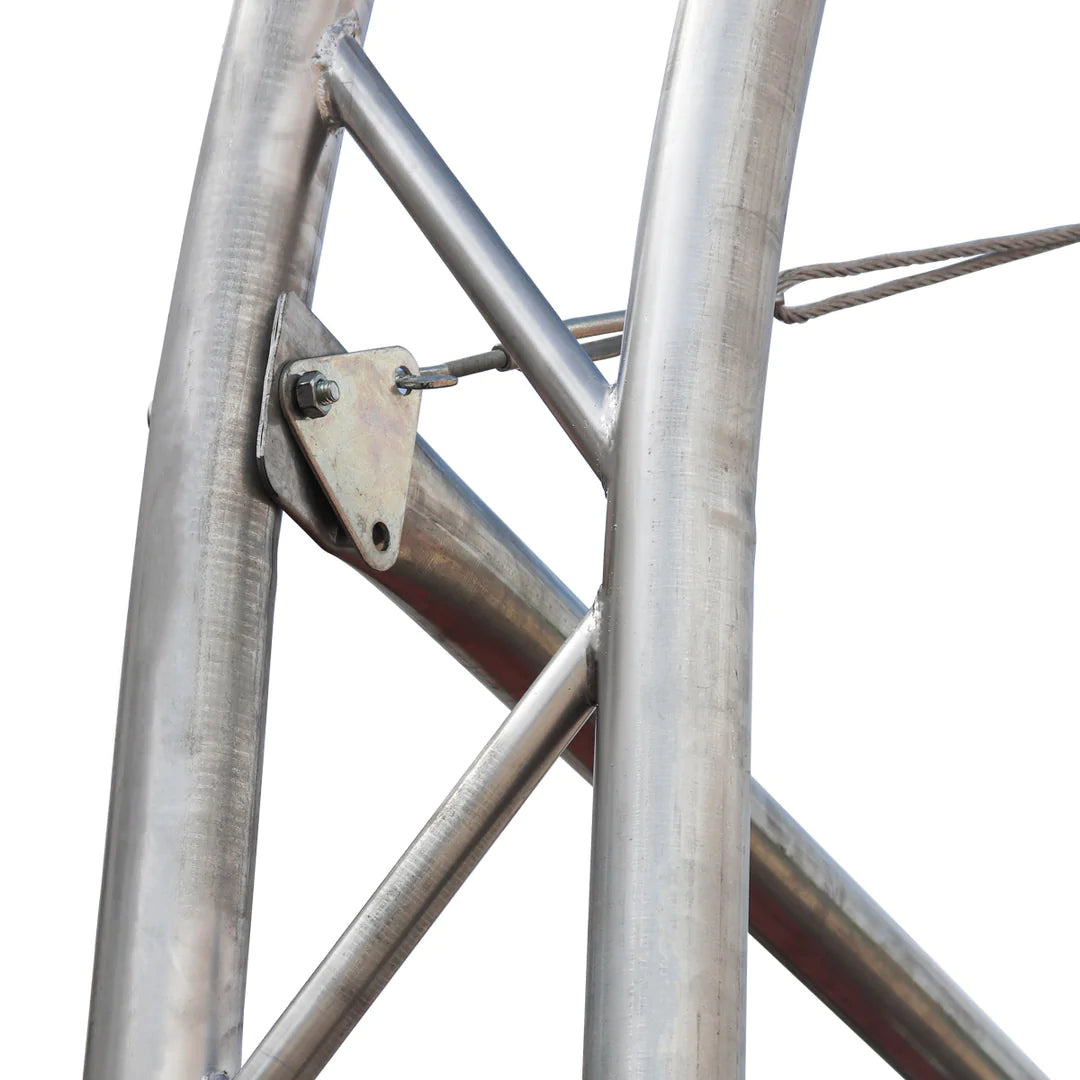

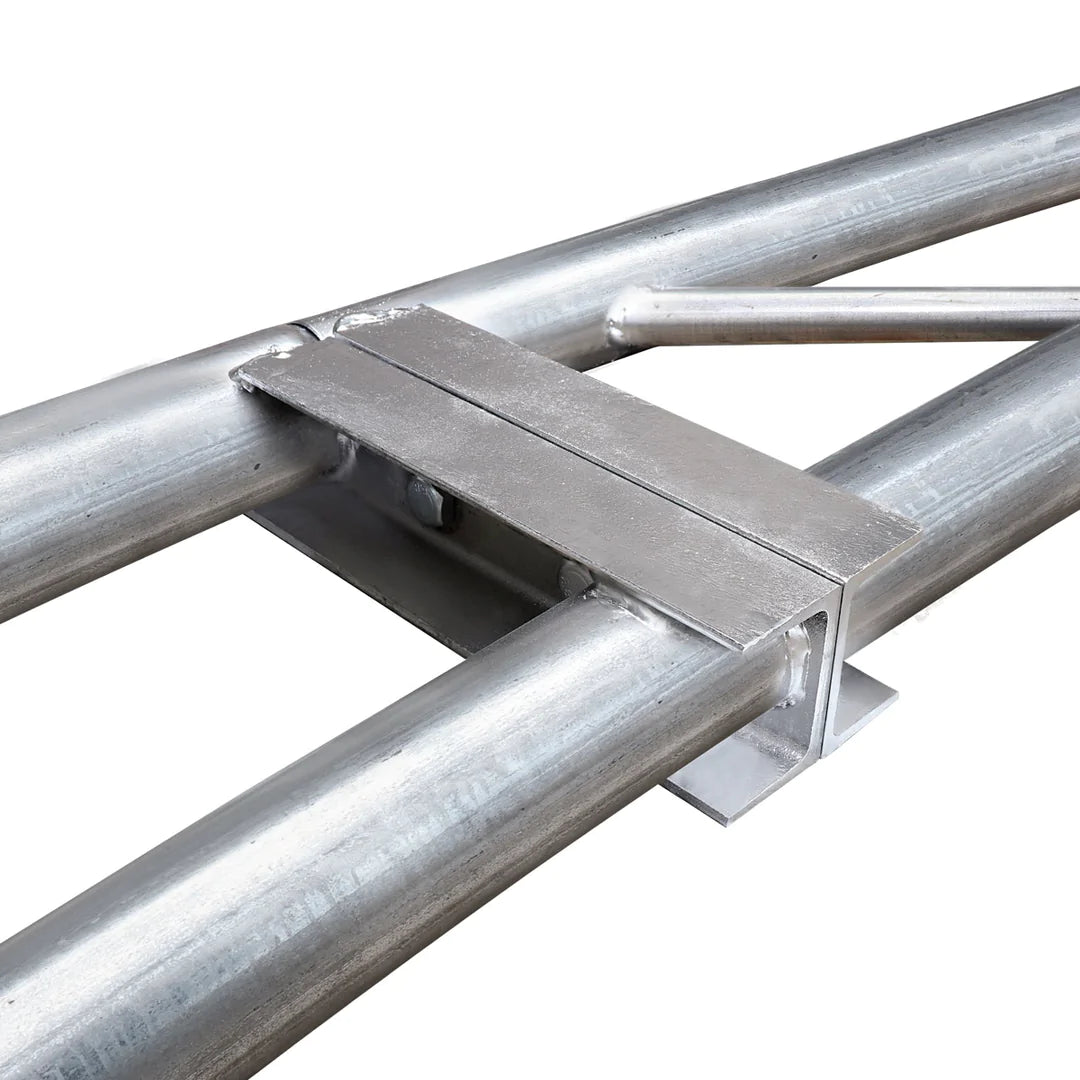

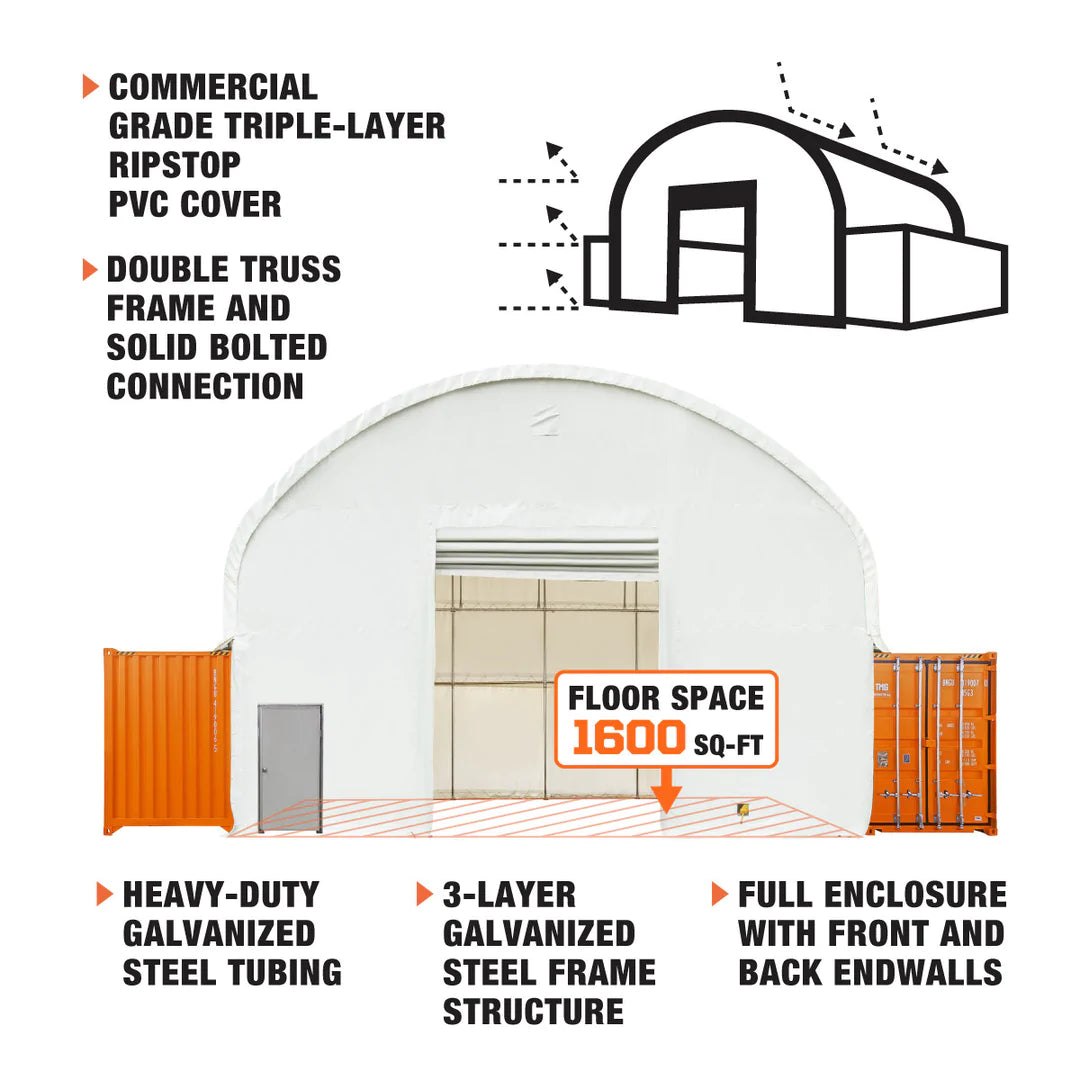

• Double truss frame and solid bolted connection on all trusses which help to reinforce the structure by increasing the support strength and rigidity
• Fully enclosed design provides year-round, all weather protection for your machinery, tools, materials and other sensitive cargo
• Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
• Use as a sawing shed, maintenance shop or for large equipment, materials and vehicle storage; adaptable to any kind of covered outdoor needs
• Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
  • Stands strong against tearing, leaking, and chemical corrosion
  • Natural flame retardant, resistant to chemicals and oil
  • UV protected and waterproof
  • Fabric color: White

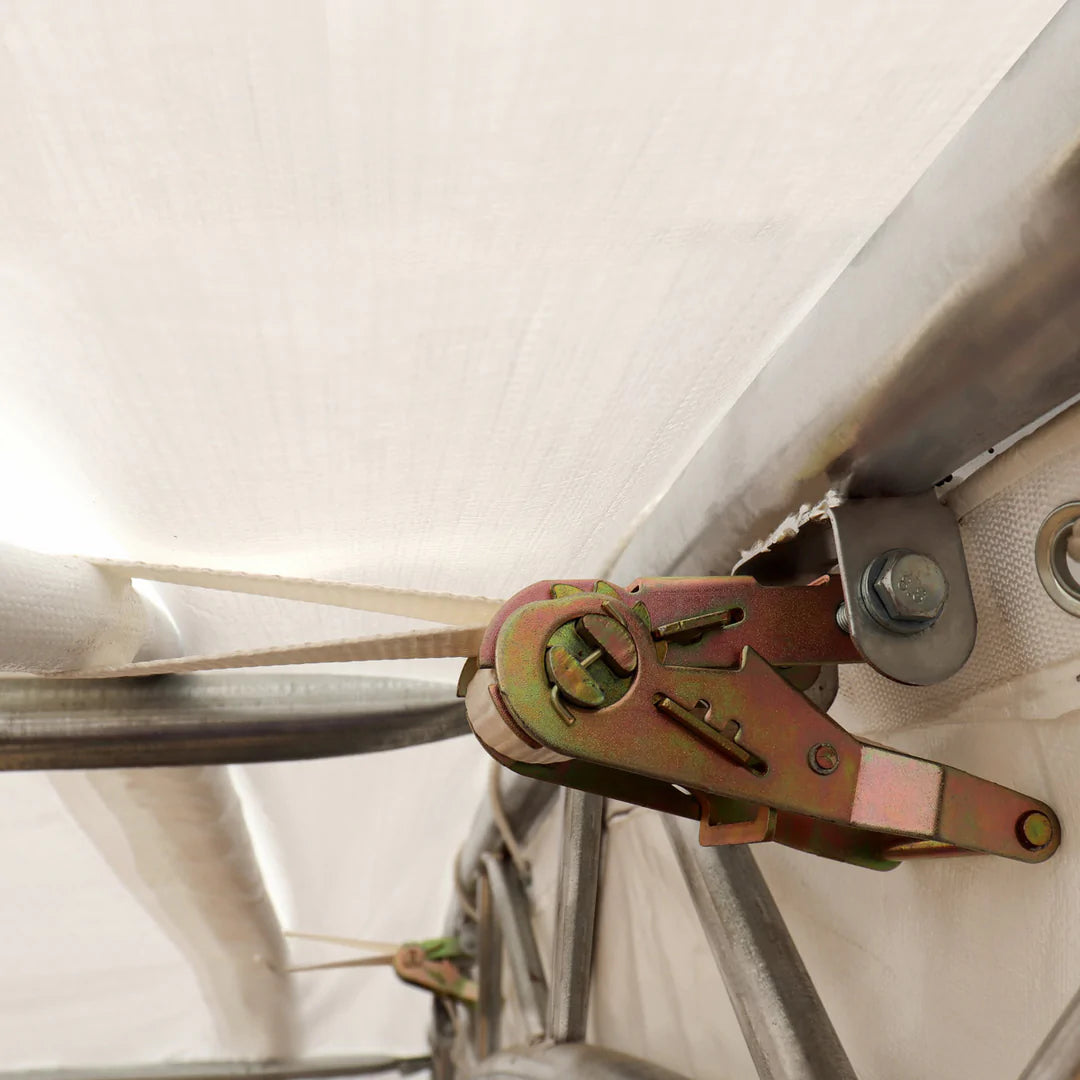

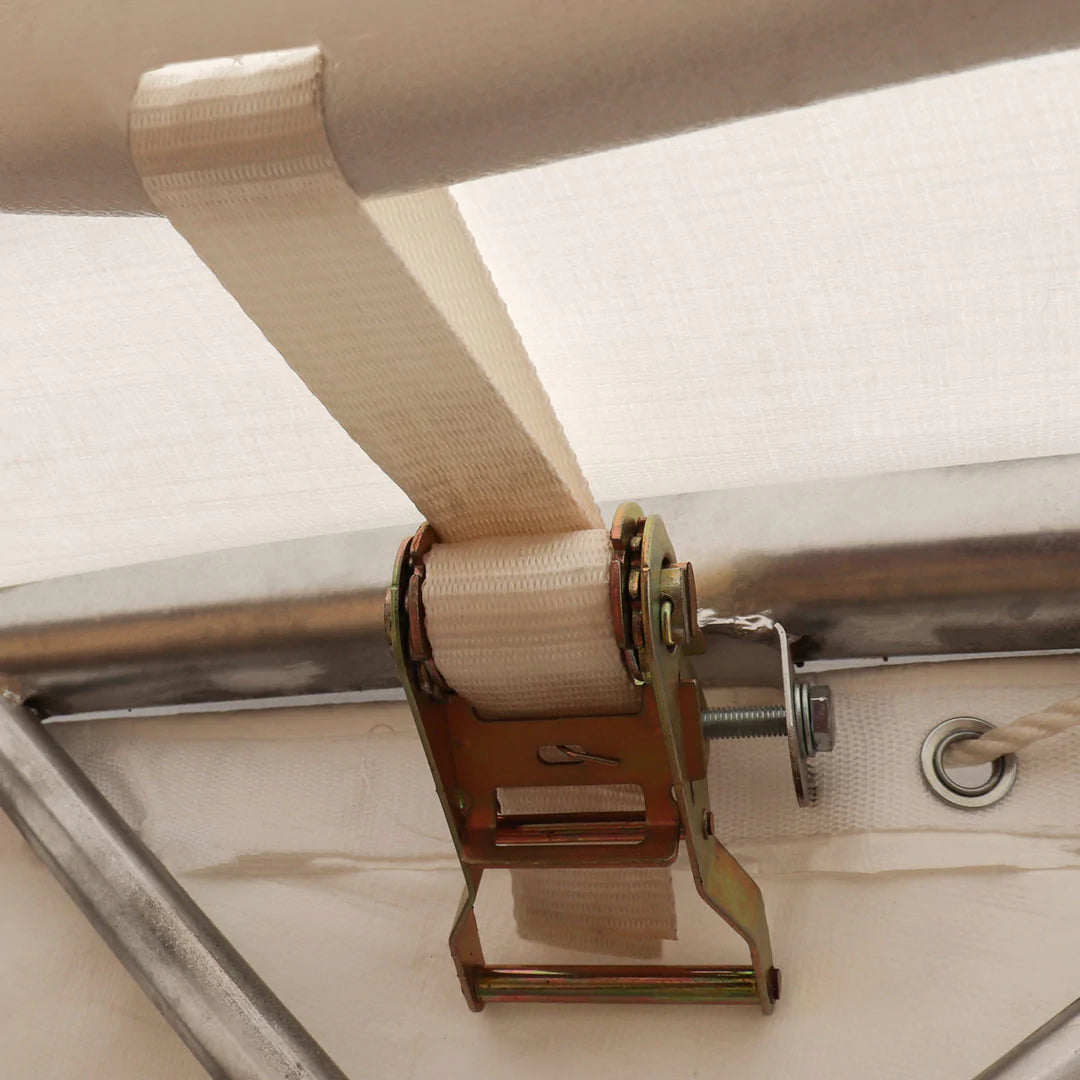

• Designed with 10’ truss spacing, steel tubing and a quad tension cable system for maximum stability and reliability on your worksite
• Wide open front wall winch roll up door allows for easy parking, machine operation and dynamic workflow to run throughout
• Easy to assemble and dismantle for efficient set up/tear down if moving from one job to another; low cost storage solution all around
• Steel man door offers convenient side entry, similar to the entrance of a house, that you can use instead of constantly opening the main door
• PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability

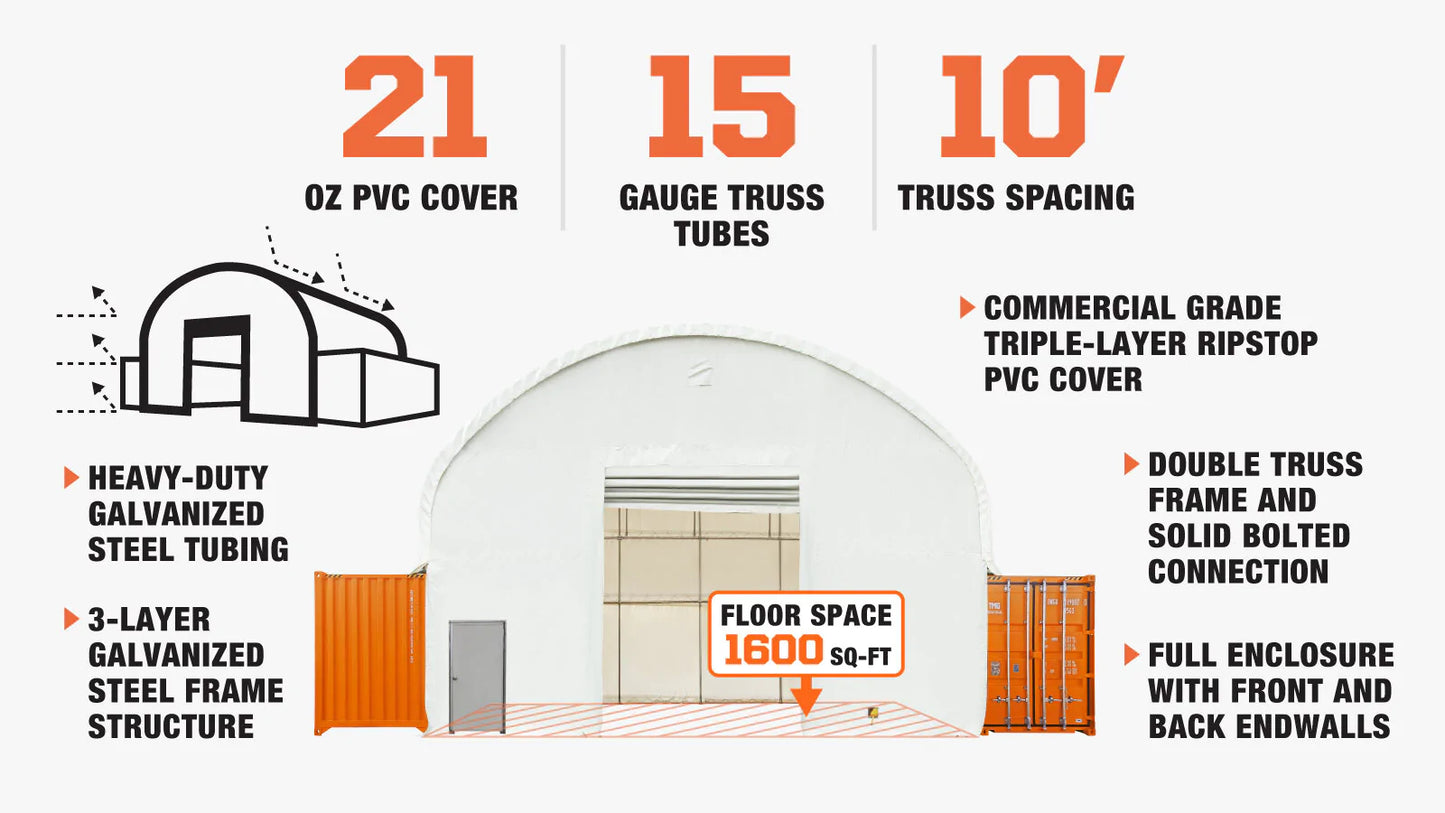

Specifications

• Exact floor footprint: 39’5” (W) x 39’5” (L)
• Truss spacing: 10’
• Truss tubes: 2-½” – 15 GA (approx.)
• Purlin tubes: 2-½” – 15 GA (approx.)

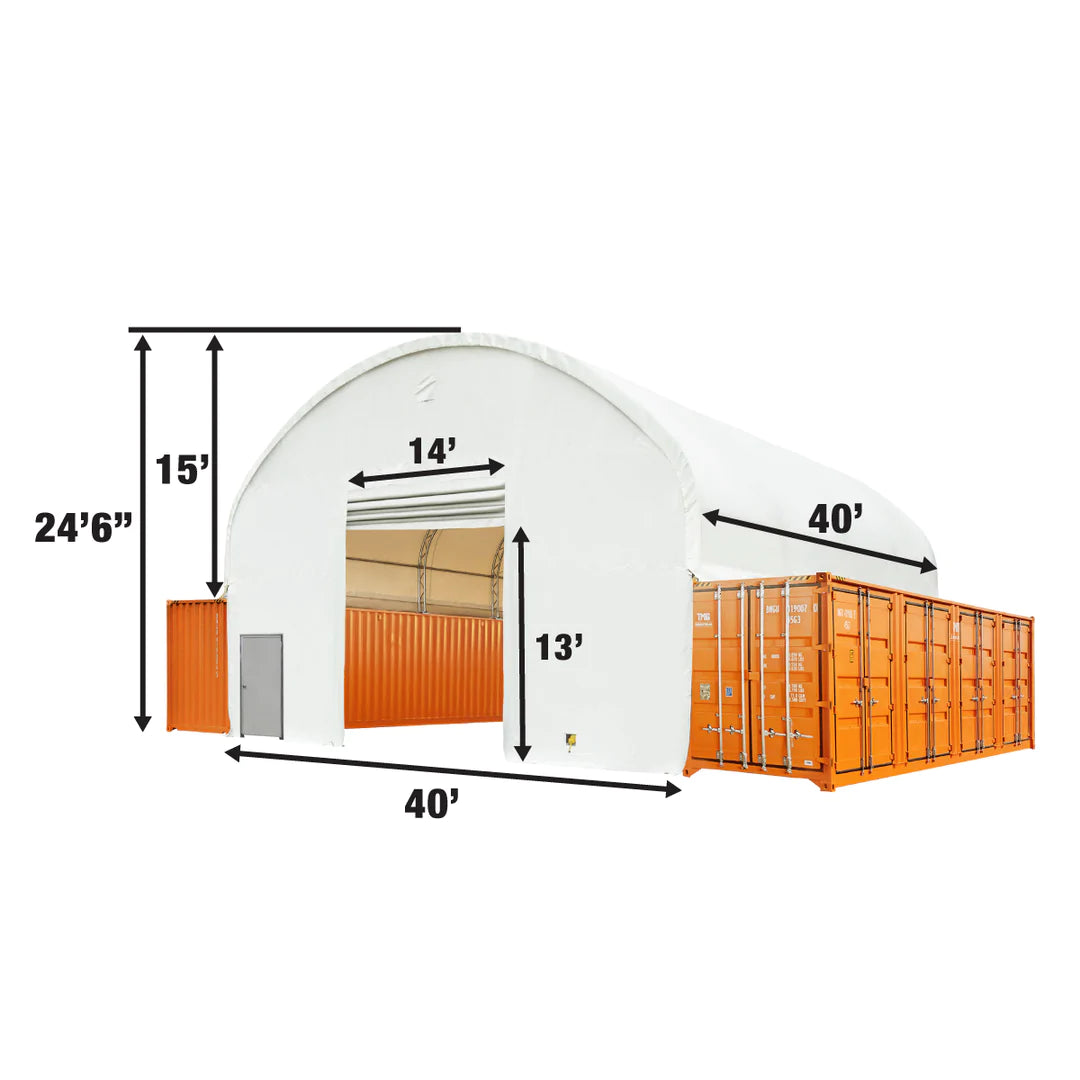

• Peak ceiling height from the container top: 15'
• Peak ceiling height from the ground: 24' 6” (with 40’HC container height)
• Sidewall rise above container top: 3’6” (approx.)
• Front and back wall kit
  • Designed for 40’HC containers

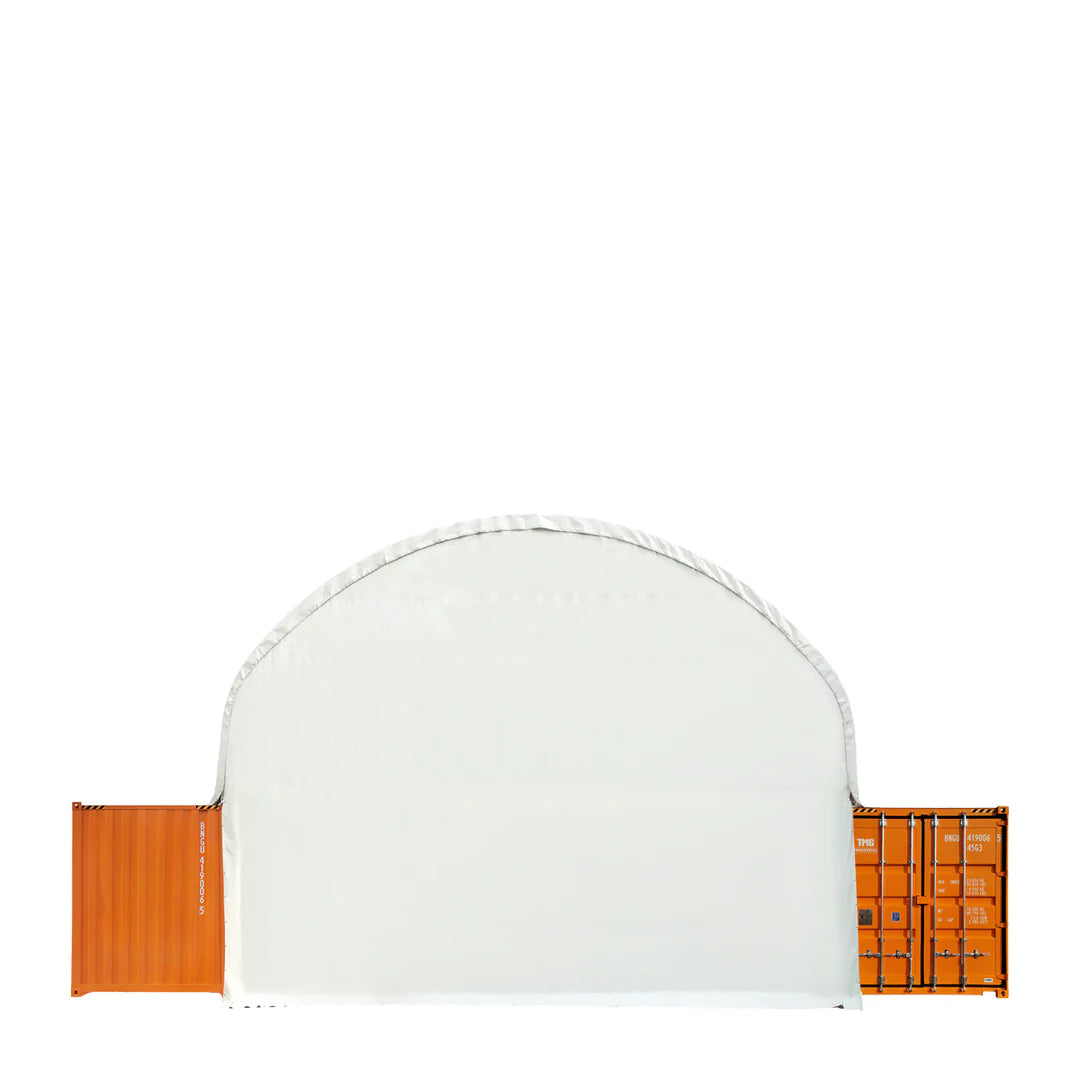

  • Complete frame built and covered back wall

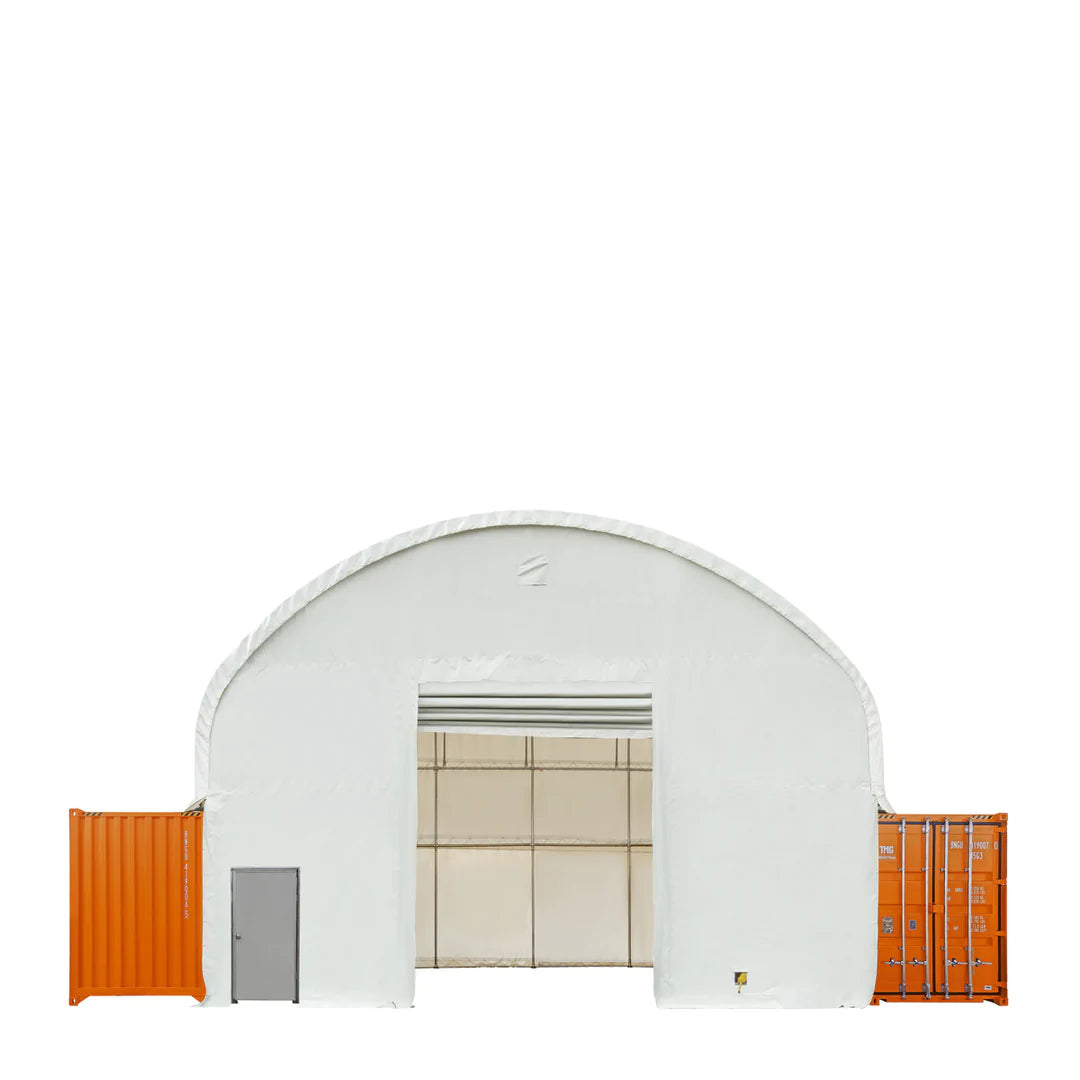

  • Complete frame built and covered front wall with man door and winch roll up door
• Man door: 3’ x 6’6” (W x H)
• Winch roll-up door with drive through clearance: 14’ x 13’ (W x H)
• Cover material: 21 oz PVC fabric (white color)

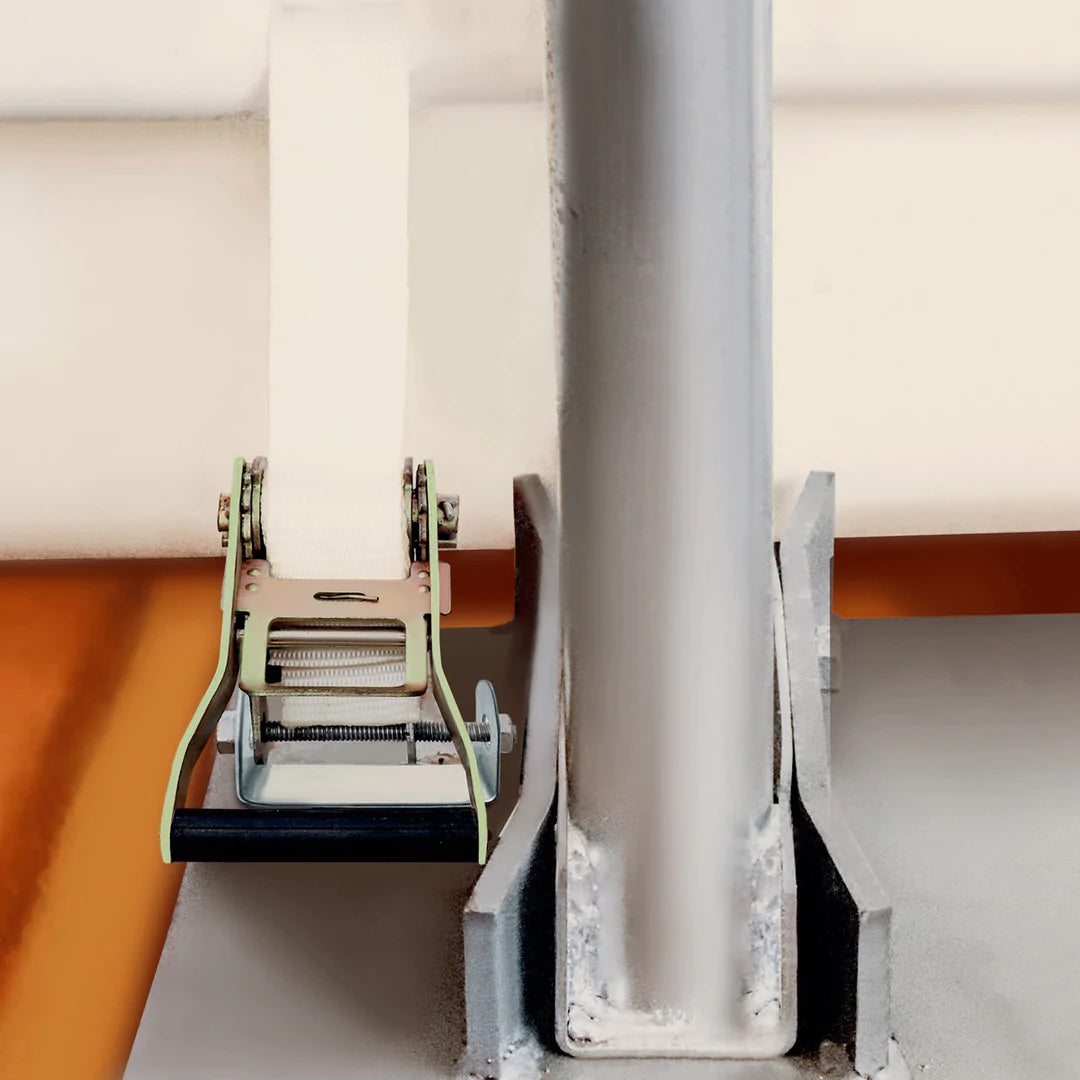

• Welding required for all footplates
• Containers not included

Shipping Information

• This product is packed in two metal crate shipping boxes
• Box A dimension (DT4040C): 122” x 45” x 43” (L x W x H)
• Box B dimension (DT40CFB): 87” x 45” x 20” (L x W x H)
• Shipping weight: 3750 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

***This product is too large for tailgate delivery.
A forklift or equivalent is required to accept delivery.***
