Features

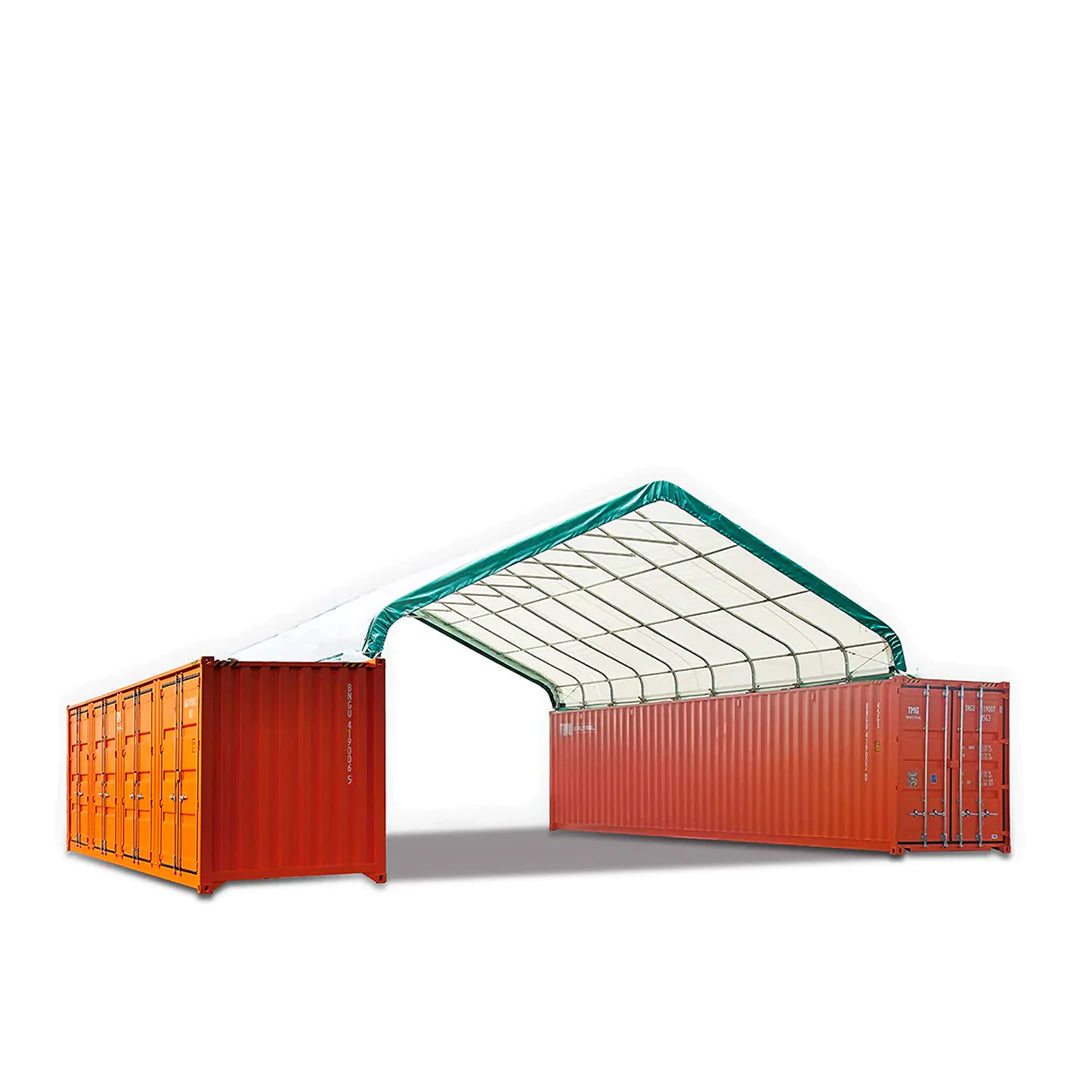

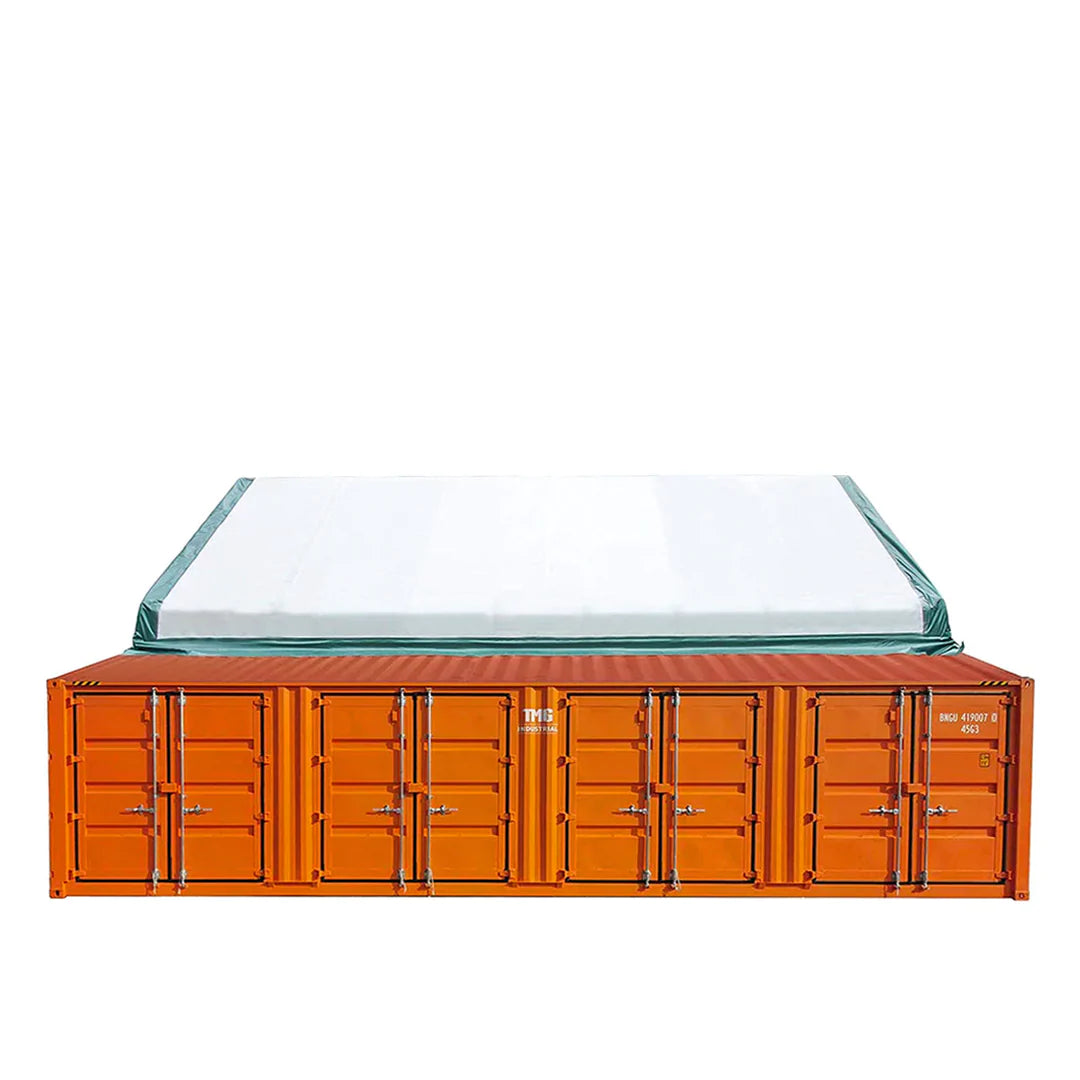

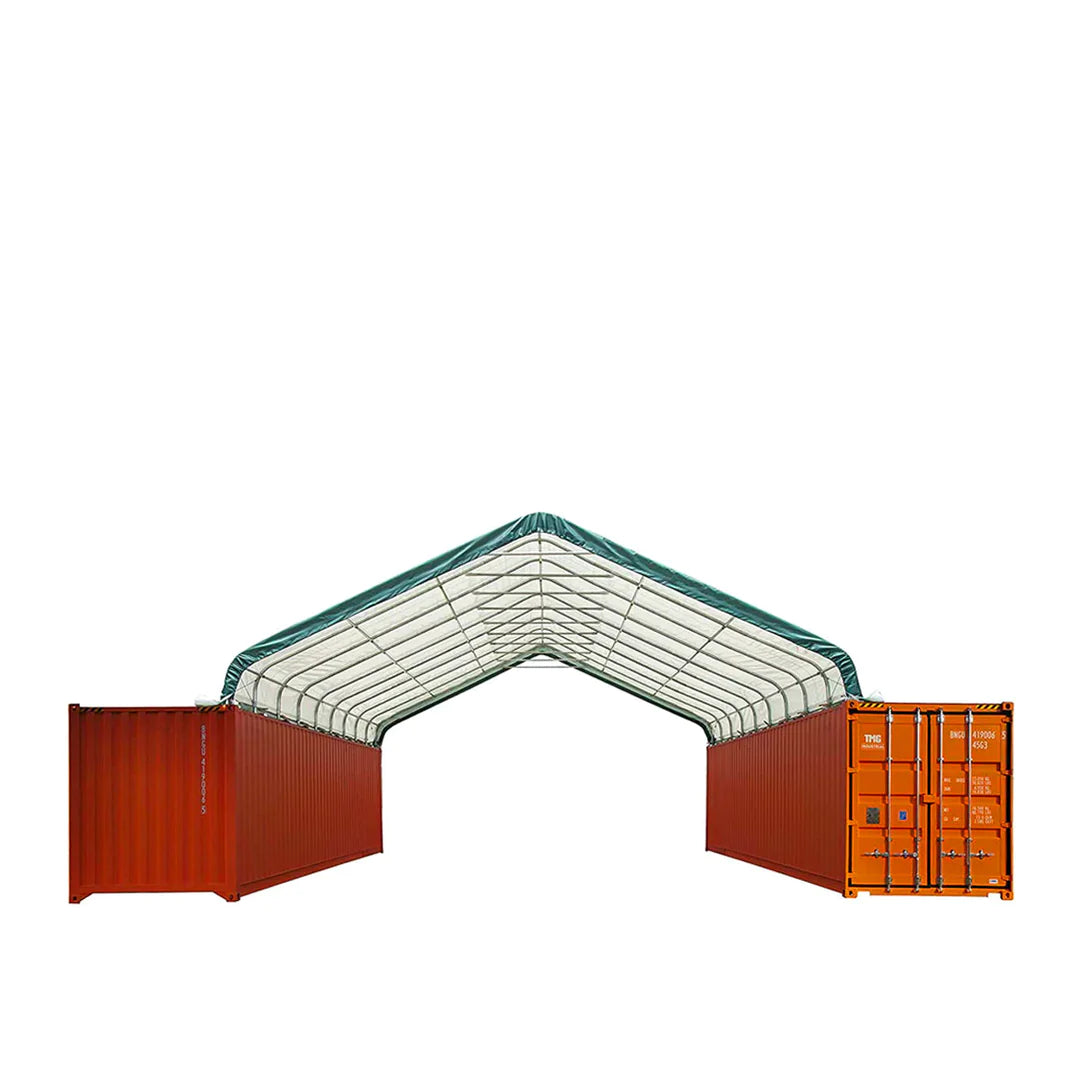

• Mounted on containers or pony walls to accommodate most job site application
• Containers can be used for site office or enclosed storage
• Easy to dismantle to store in the container and move to next job
• Commercial grade 3-layer galvanized steel frame structure
• Commercial grade triple-layer ripstop polyvinyl chloride (PVC) cover:

• Stands strong against tearing, leaking, and chemical corrosion
• Resistant to flame, chemicals, and oil
• UV protected and waterproof
• Fabric colour: White with green trim
• Welding required for all footplates

Specifications

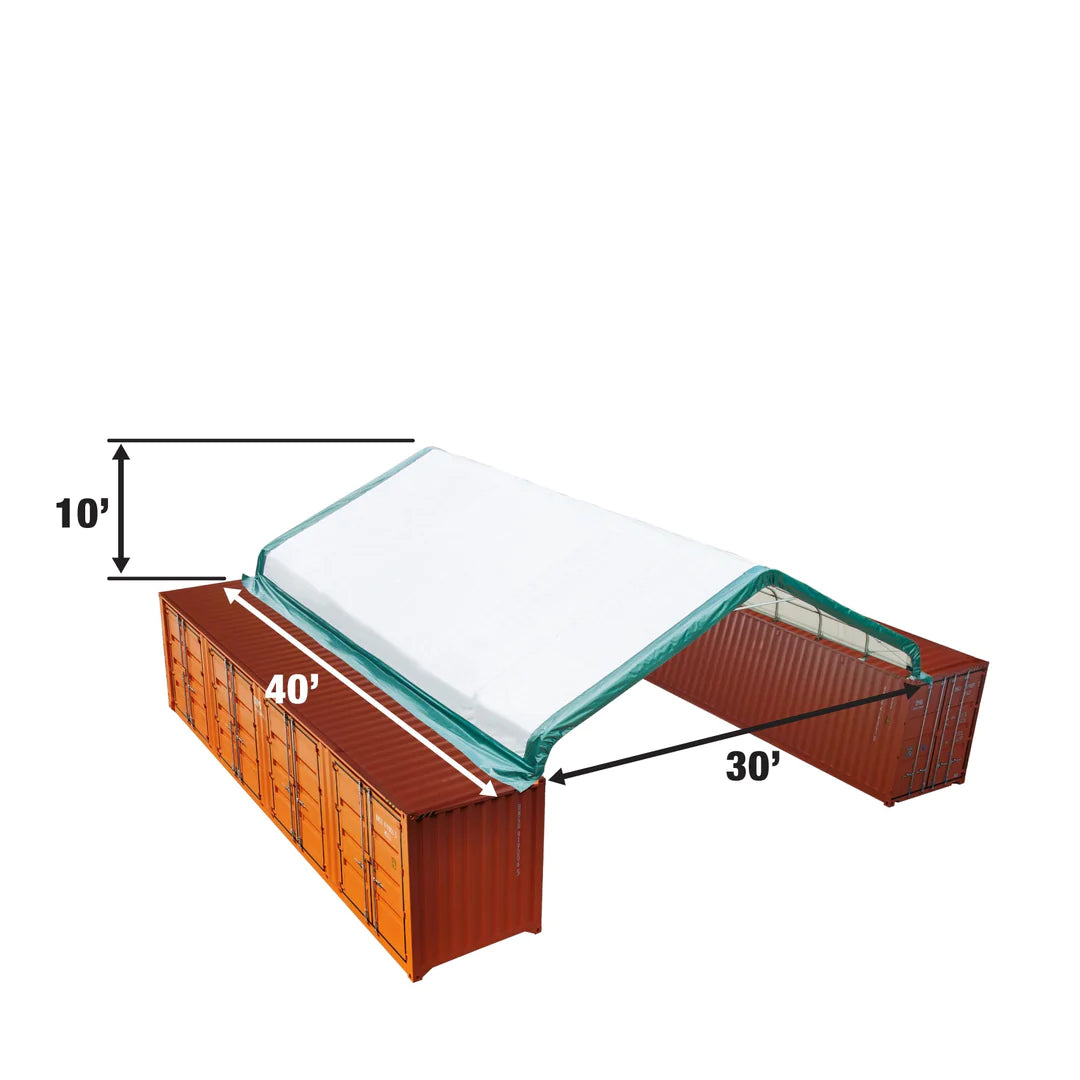

• Exact floor footprint: 30’ (W) x 39’5" (L)

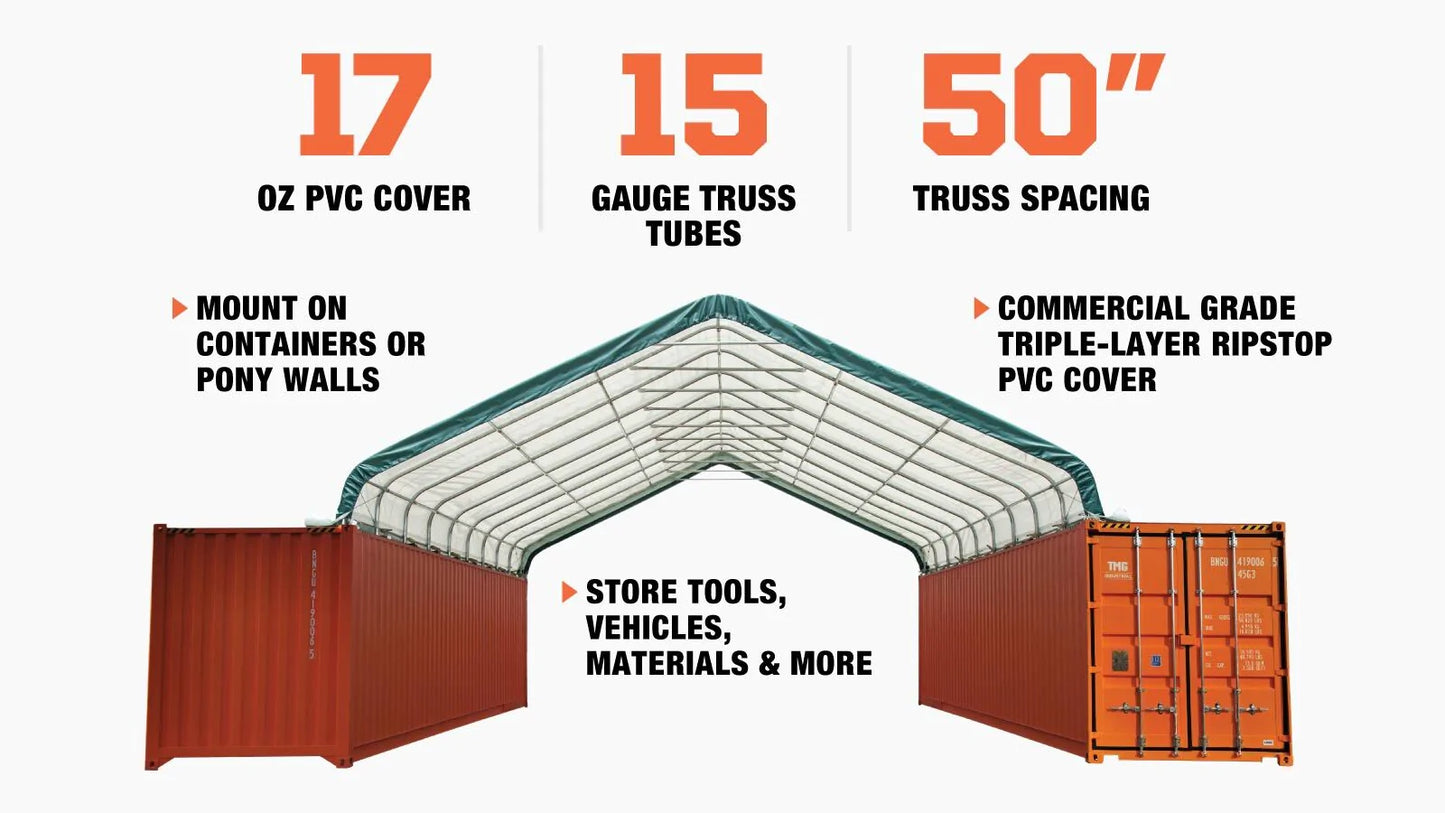

• Truss spacing: 50"
• Truss quantity: 10 groups
• Truss tubes: ⌀2.3” – 15 GA (approx.)
• Purlin tubes: ⌀1.65” – 16 GA (approx.)
• Peak ceiling height from the ground: 19.5' (with 40' HC container)
• Peak ceiling height from the base: 10'
• Cover material:  17 oz PVC

Shipping Information

• The product is packed in a metal crate shipping box
• Shipping dimension: 115” x 29” x 32” (L x W x H)
• Shipping weight: 1600 lbs

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

***This product is too large for tailgate delivery.
A forklift or equivalent is required to accept delivery.***
