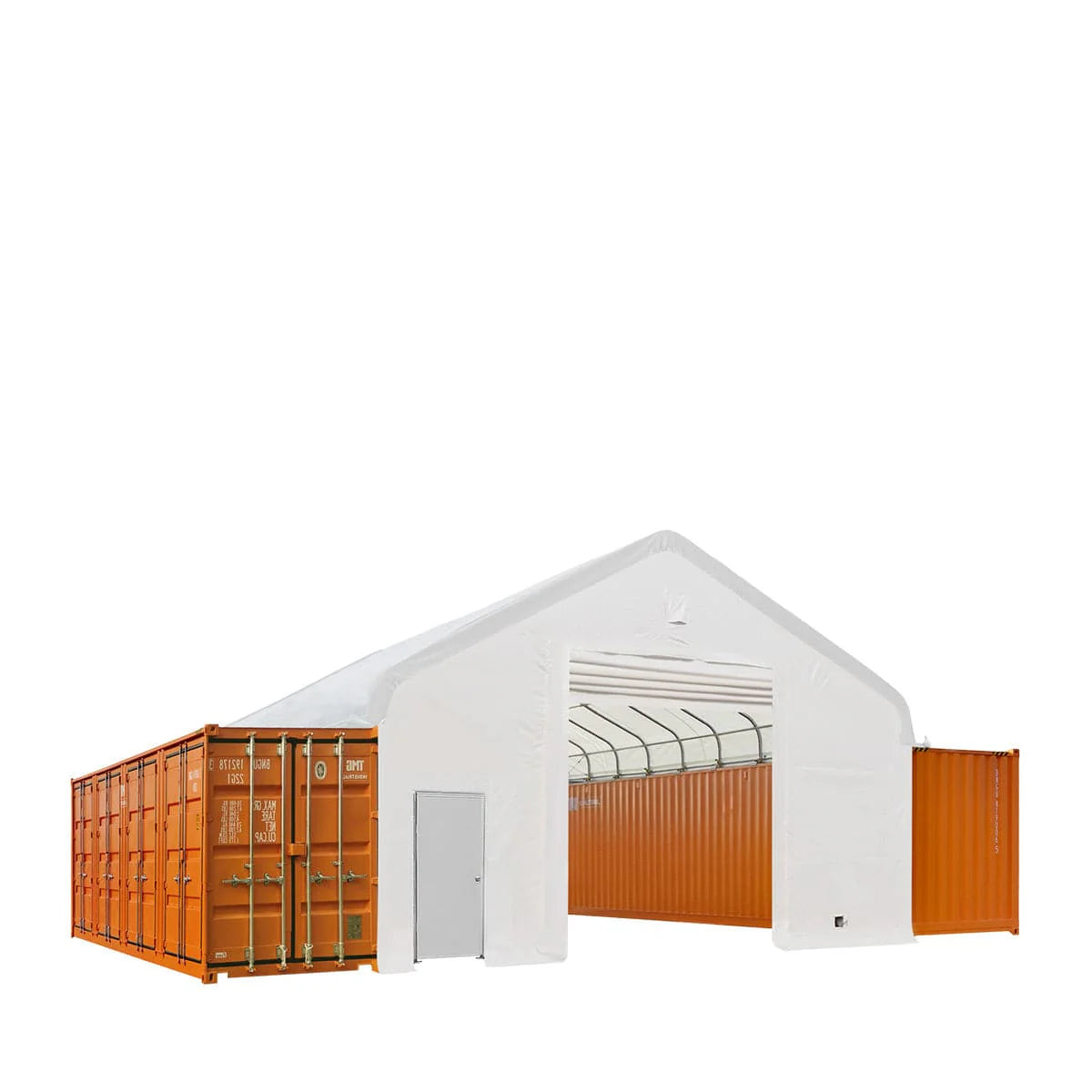

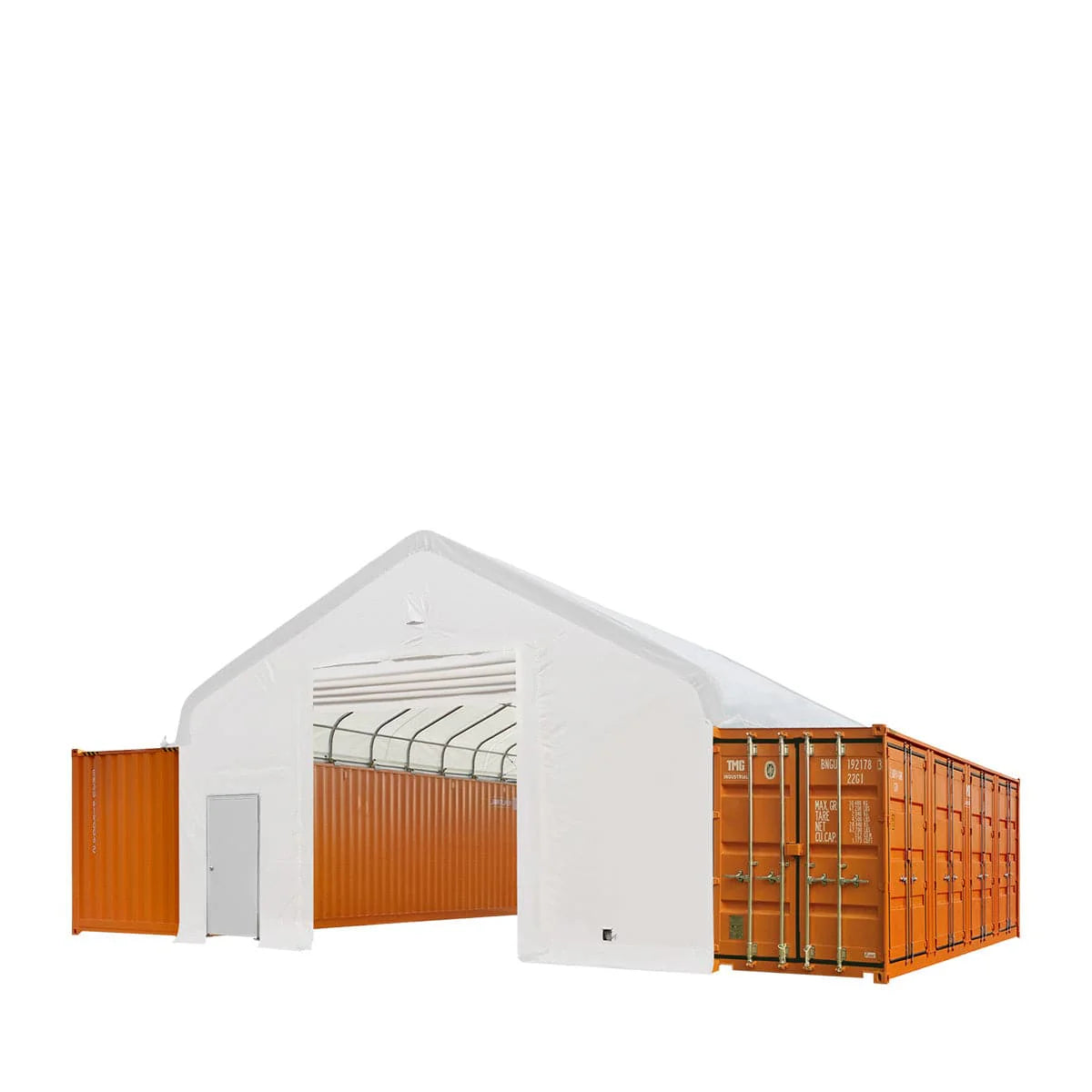

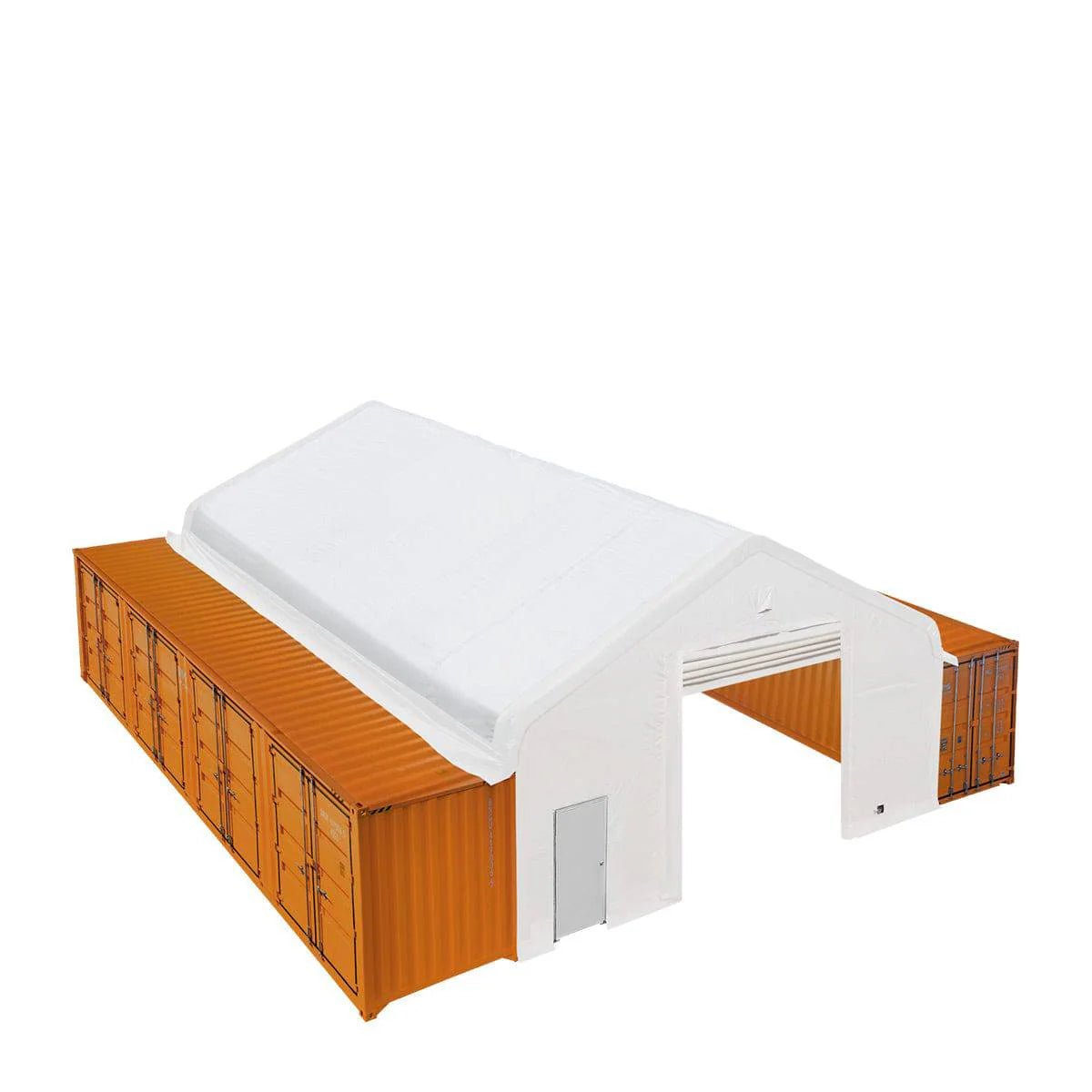

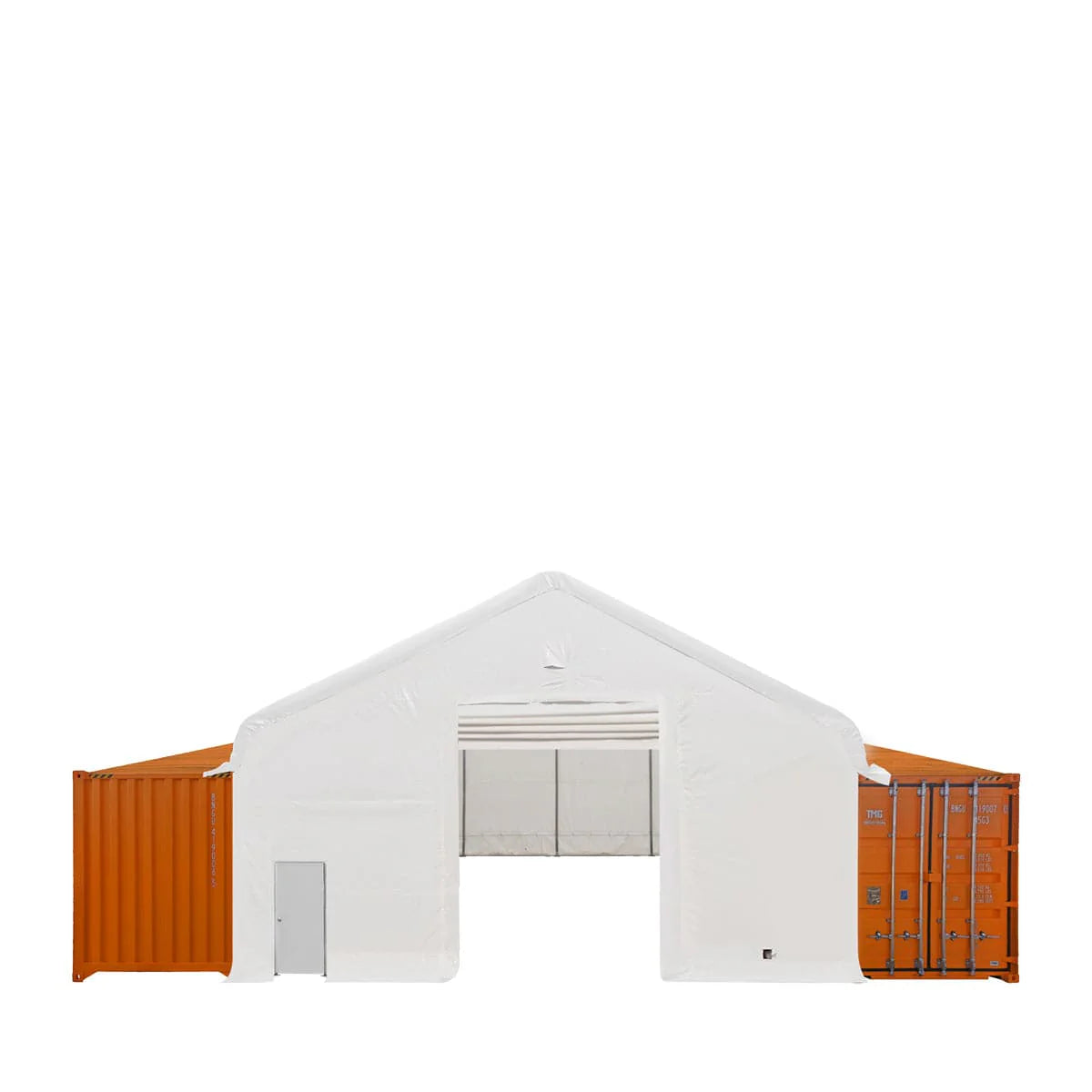

• Mounted on containers or pony walls for maximum height, versatility and useability so that it can accommodate most job sites

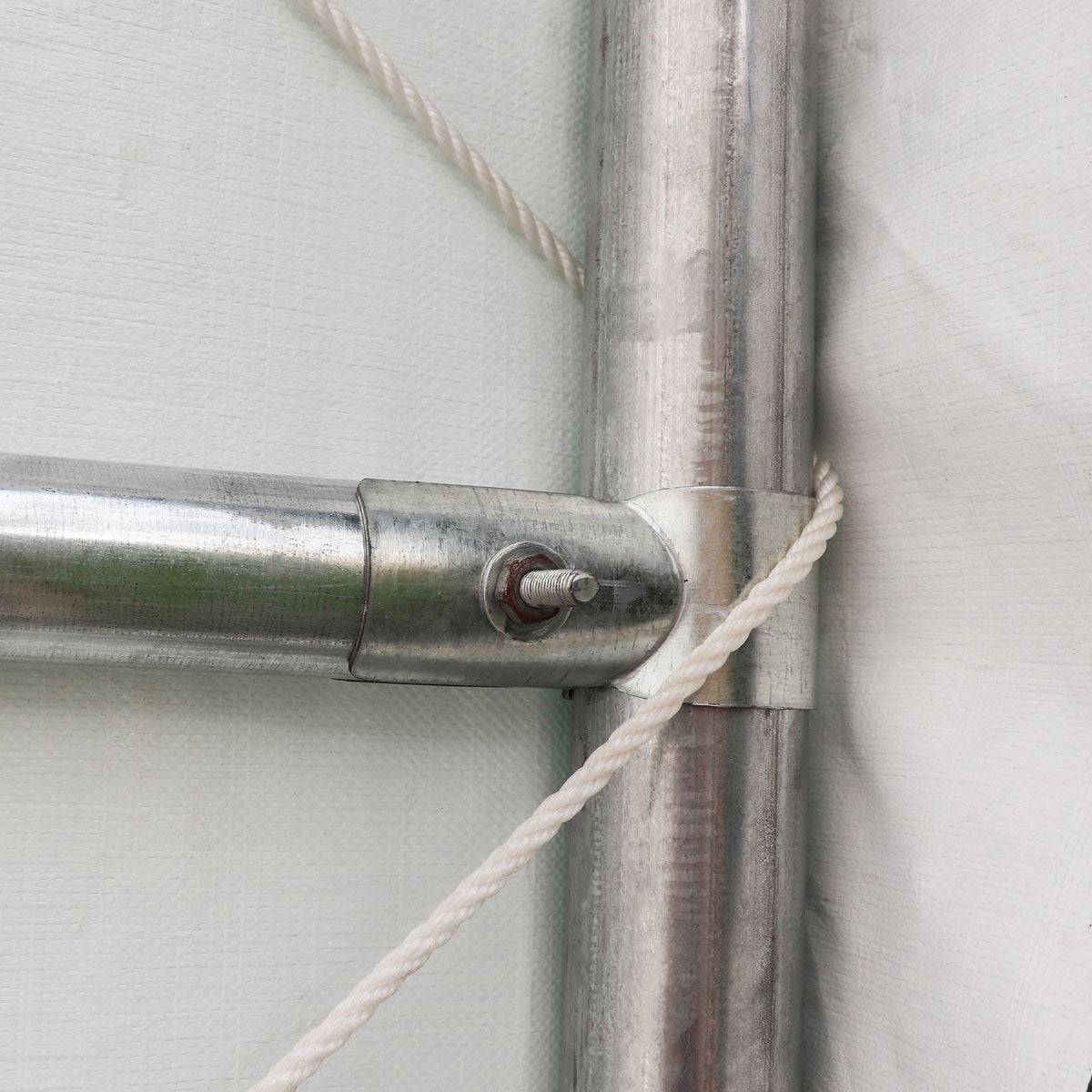

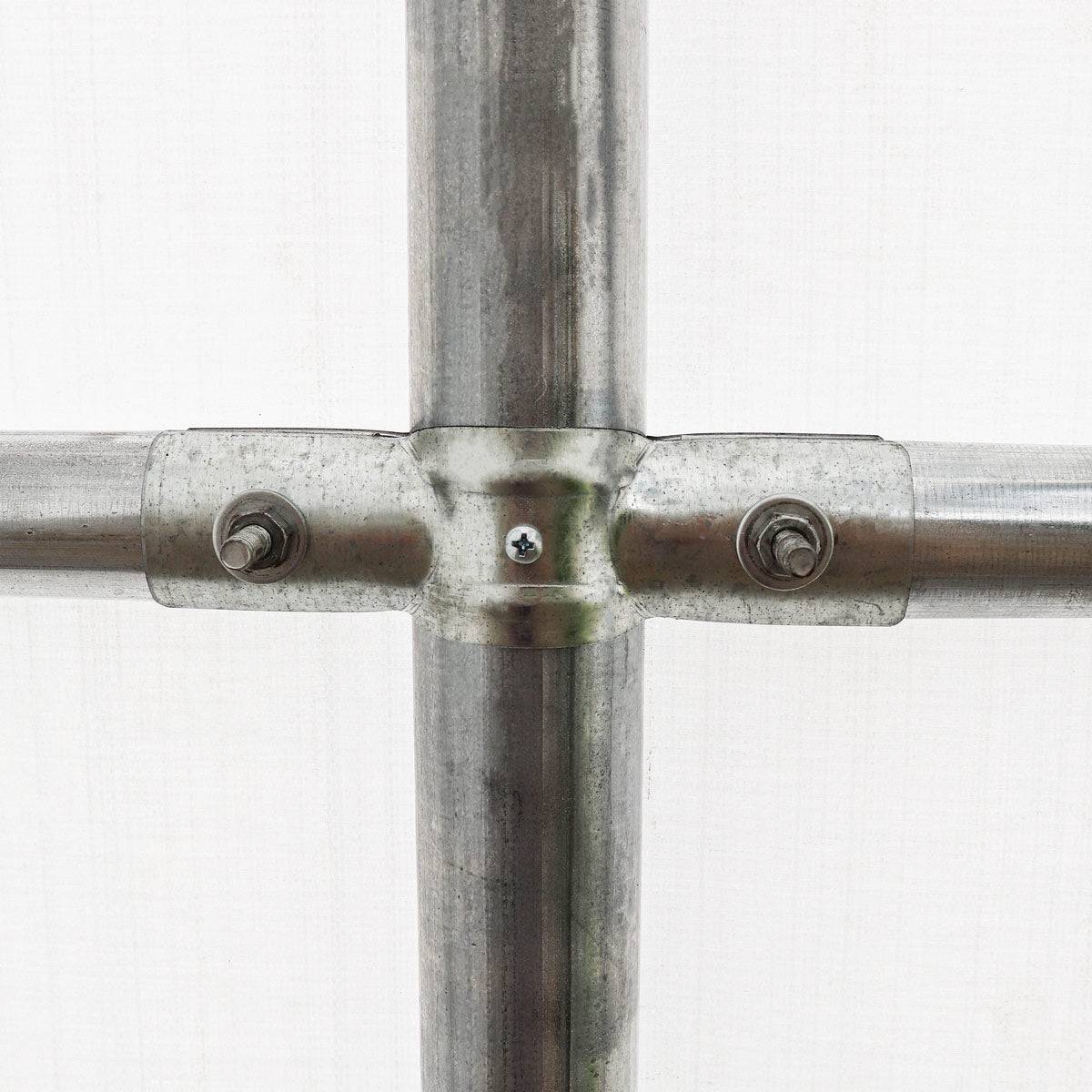

• Single truss frame and solid bolted connection on all trusses which help to reinforce the structure by increasing the support strength and rigidity
• Fully enclosed design provides year-round, all weather protection for your machinery, tools, materials and other sensitive cargo
• Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion

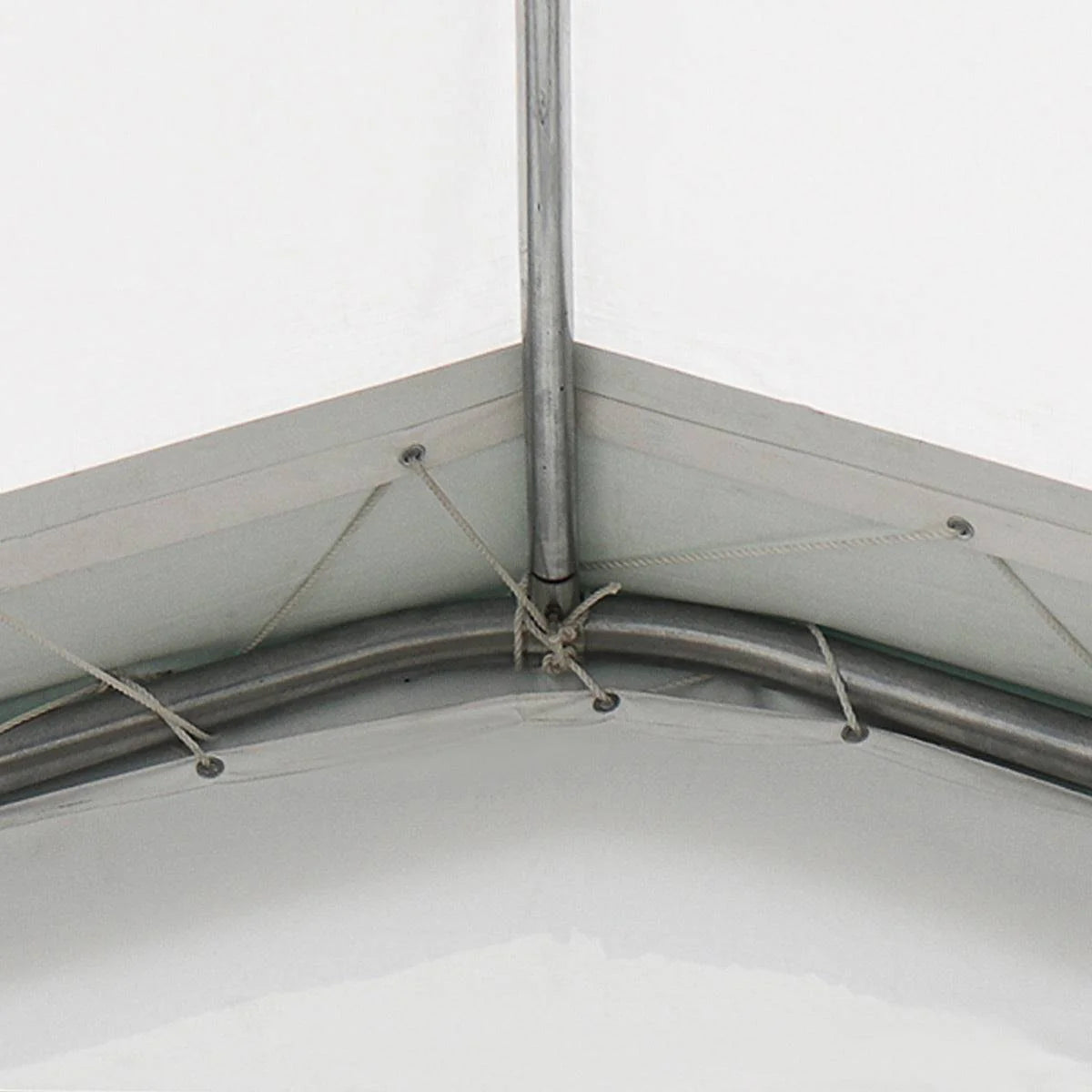

• Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
  • Stands strong against tearing, leaking, and chemical corrosion
  • Natural flame retardant, resistant to chemicals and oil
  • UV protected and waterproof
  • Fabric color: White
• Designed with 50" truss spacing, steel tubing and a quad tension cable system for maximum stability and reliability on your worksite
• Wide open front wall winch roll up door allows for easy parking, machine operation and dynamic workflow to run throughout
• Easy to assemble and dismantle for efficient set up/tear down if moving from one job to another; low cost storage solution all around
• Steel man door offers convenient side entry, similar to the entrance of a house, that you can use instead of constantly opening the main door
• PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability

• Exact floor footprint: 30’ (W) x 39’5" (L)
• Truss spacing: 50"
• Truss quantity: 10 groups
• Truss tubes: ⌀2.3” – 15 GA (approx.)
• Purlin tubes: ⌀1.65” – 16 GA (approx.)
• Peak ceiling height from the ground: 19.5' (with 40' HC container)
• Peak ceiling height from the base: 10'
• Cover material: 17 oz PVC

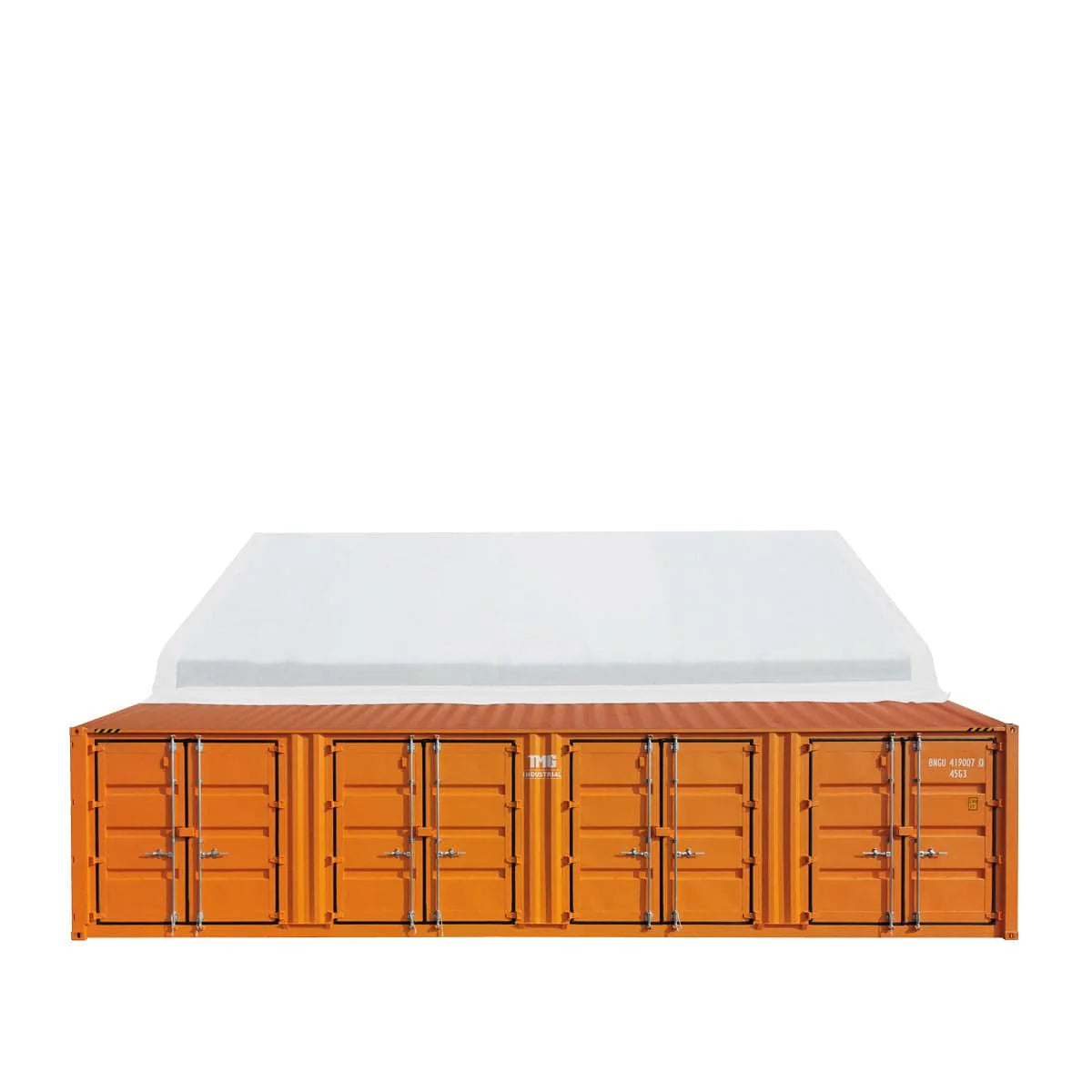

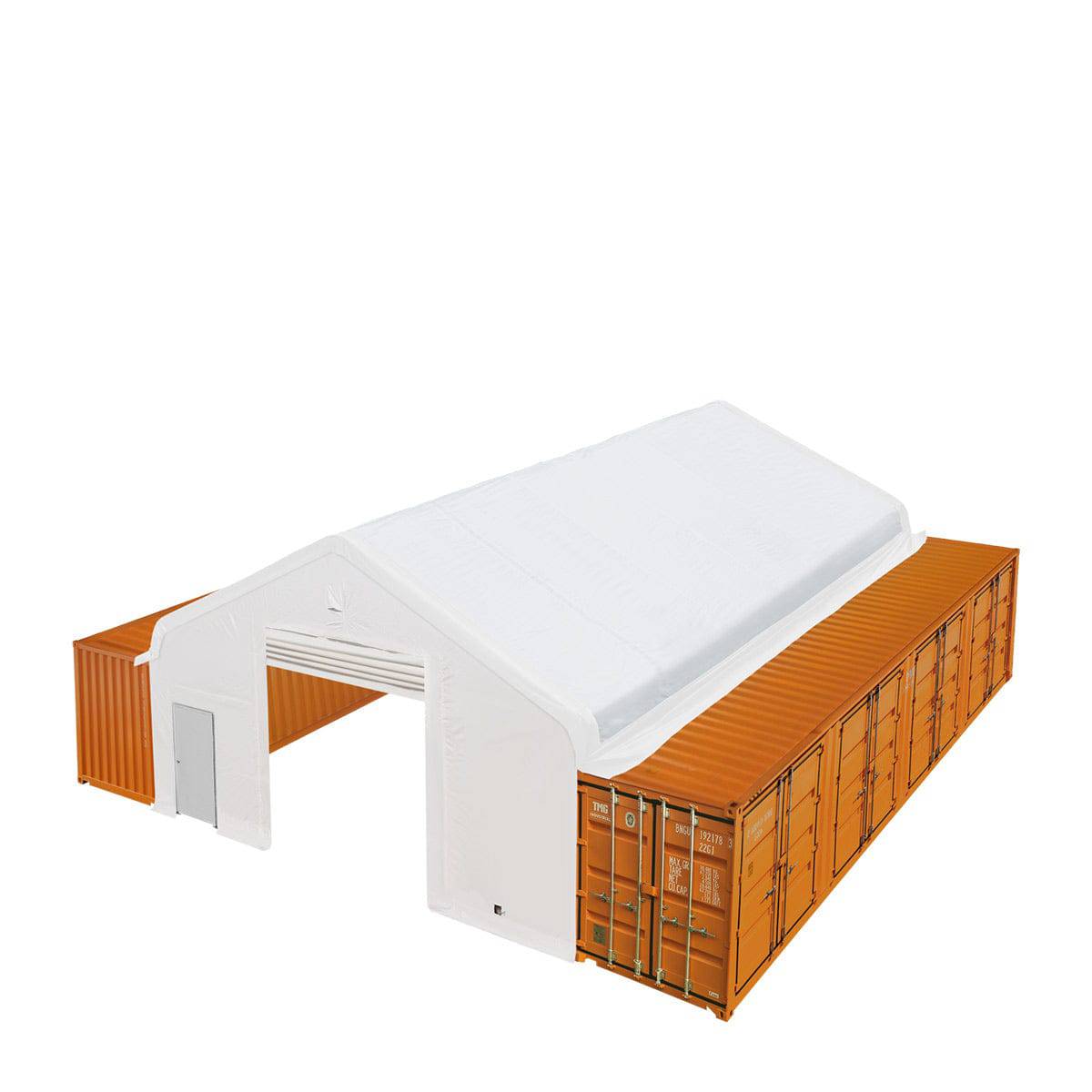

• • Designed for 40’HC containers
  • Complete frame built and covered back wall
  • Complete frame built and covered front wall with man door and winch roll up door
• Man door: 3’ x 7’(W x H)
• Mechanical rollup door with drive through clearance: 13’ x 14’ (W x H)
• Cover material: 17 oz PVC fabric (white color)

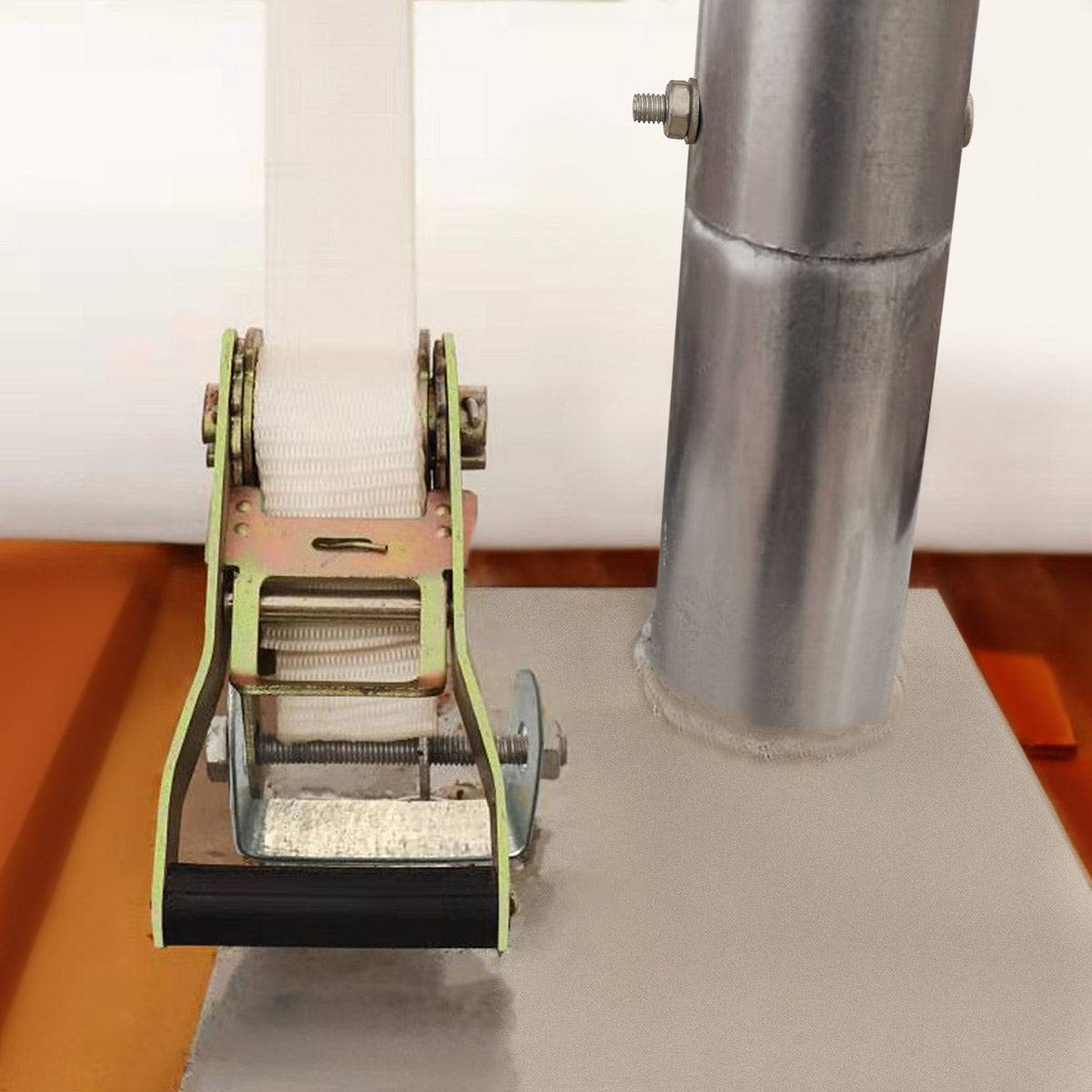

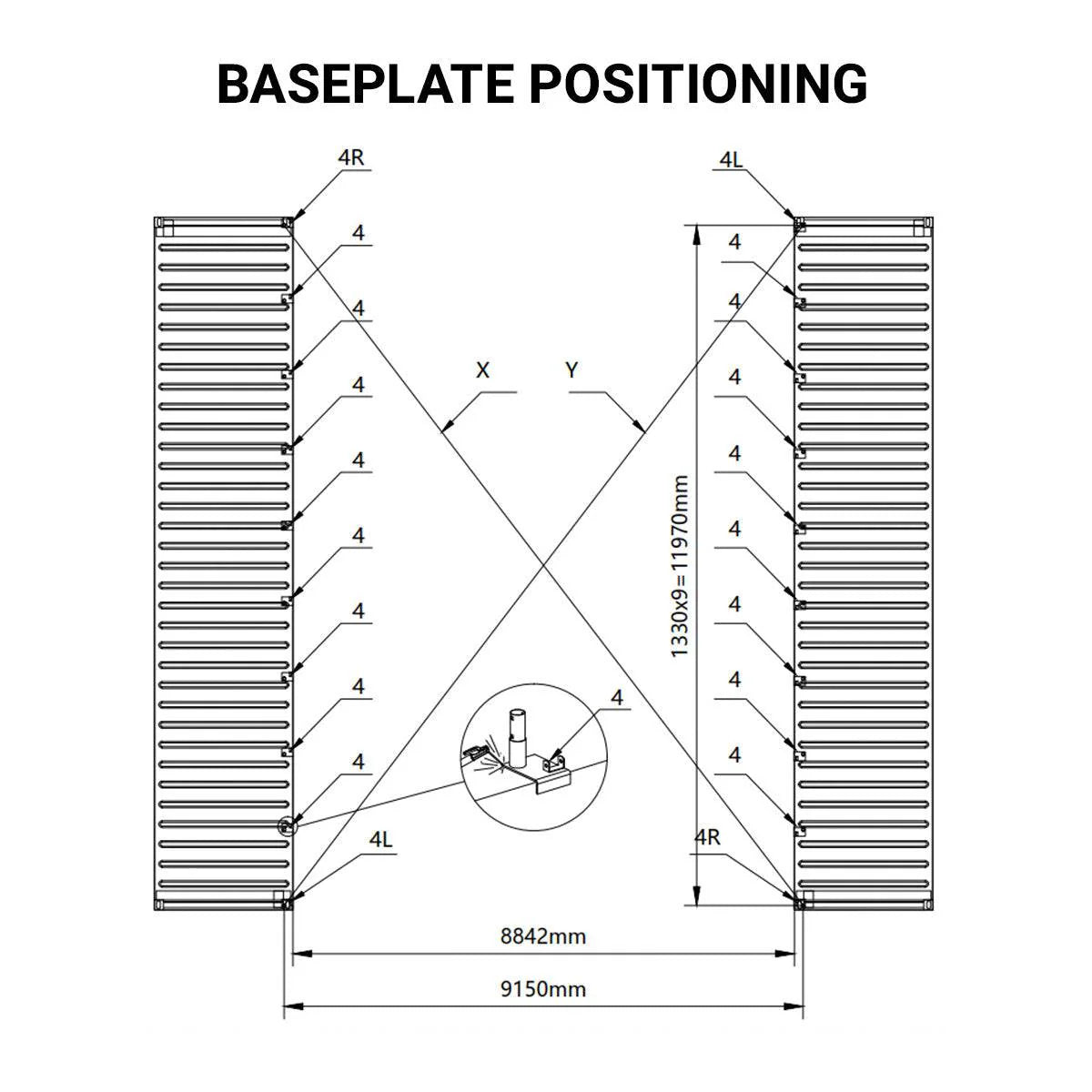

• Welding required for all footplates
• Containers not included

• This product is packed in 1 metal crate shipping box and 2 wooden shipping boxes
• Box A dimension: 115” x 29” x 32” (L x W x H)
• Box B dimension: 115” x 45” x 13” (L x W x H)
• Box C dimension: 115” x 29” x 12” (L x W x H)
• Shipping weight: 2575 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
